Multipurpose tool
GOP 185-LI | 3 601 HG2 020 | 18 V / 003 - EEU
Lubrication instructions
Product information
Print drawing

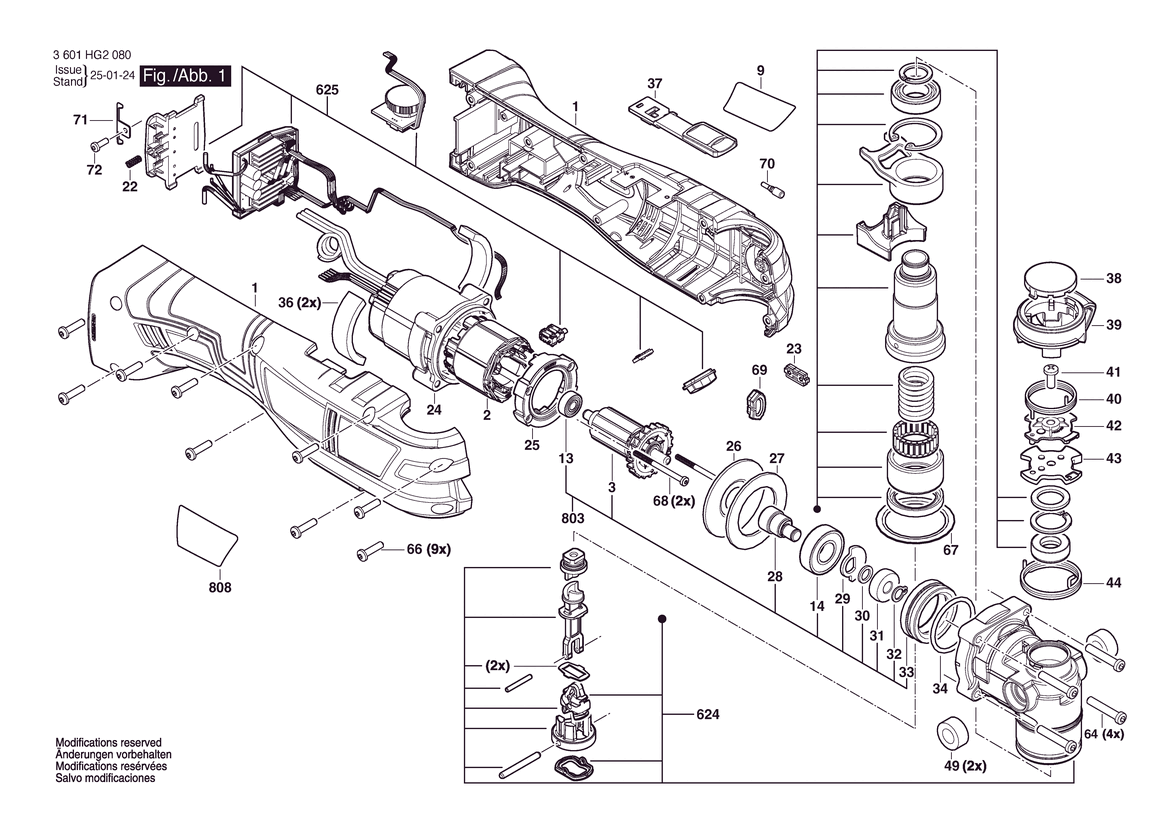

To select an item please click on the position number in the illustration or select the item via the part list below the drawing
3 601 HG2 020
Image 1
Electronics Module
-
Spare part number: 1 619 PB6 095
Position: 625
Availability: 1
Price group: 41
-
Field assembly
-
Spare part number: 1 619 PB9 376
Position: 2
Availability: 1
Price group: 38
-
Armature
-
Spare part number: 1 619 PB9 377
Position: 3
Availability: 1
Price group: 33
-
Nameplate
-
Spare part number: 1 619 PB9 801
Position: 808
Availability: 1
Price group: 13
-
Manufacturer's nameplate
-
Spare part number: 1 619 PB9 804
Position: 9
Availability: 1
Price group: 11
-
groove ball bearing
-
Spare part number: 1 619 PB9 830
Position: 13
Availability: 1
Price group: 16
-
groove ball bearing
-
Spare part number: 1 619 PB9 831
Position: 14
Availability: 1
Price group: 16
-
Spring
-
Spare part number: 1 619 PB9 832
Position: 22
Availability: 1
Price group: 10
-
Block
-
Spare part number: 1 619 PB9 833
Position: 23
Availability: 1
Price group: 11
-
Motor Housing
-
Spare part number: 1 619 PB9 834
Position: 24
Availability: 1
Price group: 17
-
Clamping bracket
-
Spare part number: 1 619 PB9 835
Position: 25
Availability: 1
Price group: 12
-
Spacer Ring
-
Spare part number: 1 619 PB9 836
Position: 26
Availability: 1
Price group: 11
-
Gasket
-
Spare part number: 1 619 PB9 837
Position: 27
Availability: 1
Price group: 11
-
Eccentric Shaft
-
Spare part number: 1 619 PB9 838
Position: 28
Availability: 1
Price group: 23
-
Counterweight
-
part
Spare part number: 1 619 PB9 839
Position: 29
Availability: 1
Price group: 10
-
Plain Washer
-
Spare part number: 1 619 PB9 840
Position: 30
Availability: 1
Price group: 10
-
Ball Bearing
-
Spare part number: 1 619 PB9 841
Position: 31
Availability: 1
Price group: 22
-
Backup ring
-
Spare part number: 1 619 PB9 842
Position: 32
Availability: 1
Price group: 10
-
Bearing Flange
-
Spare part number: 1 619 PB9 843
Position: 33
Availability: 1
Price group: 17
-
O-Ring
-
Spare part number: 1 619 PB9 844
Position: 34
Availability: 1
Price group: 10
-
Damping Ring
-
Spare part number: 1 619 PB9 846
Position: 36
Availability: 2
Price group: 14
-
Switch Slide
-
Spare part number: 1 619 PB9 847
Position: 37
Availability: 1
Price group: 12
-
Cover
-
Spare part number: 1 619 PB9 848
Position: 38
Availability: 1
Price group: 11
-
Lever
-
Spare part number: 1 619 PB9 849
Position: 39
Availability: 1
Price group: 26
-
Torsion Spring
-
Spare part number: 1 619 PB9 850
Position: 40
Availability: 1
Price group: 11
-
Contact Screw
-
Spare part number: 1 619 PB9 851
Position: 41
Availability: 1
Price group: 11
-
Insulating Plate
-
Spare part number: 1 619 PB9 852
Position: 42
Availability: 1
Price group: 11
-
Block
-
Spare part number: 1 619 PB9 853
Position: 43
Availability: 1
Price group: 17
-
Torsion Spring
-
Spare part number: 1 619 PB9 854
Position: 44
Availability: 1
Price group: 11
-
Damping Ring
-
Spare part number: 1 619 PB9 859
Position: 49
Availability: 2
Price group: 12
-
Screw
-
Spare part number: 1 619 PB9 874
Position: 64
Availability: 4
Price group: 10
-
Screw
-
Spare part number: 1 619 PB9 875
Position: 66
Availability: 9
Price group: 10
-
Seal
-
Spare part number: 1 619 PB9 876
Position: 67
Availability: 1
Price group: 16
-
Screw
-
Spare part number: 1 619 PB9 877
Position: 68
Availability: 2
Price group: 11
-
Wire Retainer
-
Spare part number: 1 619 PB9 878
Position: 69
Availability: 1
Price group: 11
-
Detent Roller
-
Spare part number: 1 619 PB9 879
Position: 70
Availability: 1
Price group: 11
-
Spacer
-
Spare part number: 1 619 PB9 880
Position: 71
Availability: 1
Price group: 12
-
Screw
-
Spare part number: 1 619 PB9 881
Position: 72
Availability: 1
Price group: 10
-
Gear Head
-
Spare part number: 1 619 PB9 882
Position: 624
Availability: 1
Price group: 44
-
Motor Housing
-
Spare part number: 1 619 PS0 885
Position: 1
Availability: 1
Price group: -
-
Motor Housing
-
Spare part number: 1 619 PS0 885
Position: 1
Availability: 1
Price group: -
-
Armature assembly
-
Spare part number: 1 619 PS1 230
Position: 803
Availability: 1
Price group: -
-
1
Spare parts in cart

41 Parts found

Sort by
Description
Pos. 1 | Motor Housing
1 619 PS0 885
-
-
Pos. 2 | Field assembly
1 619 PB9 376
-
-
Pos. 3 | Armature
1 619 PB9 377
-
-
Pos. 9 | Manufacturer's nameplate
1 619 PB9 804
-
-
Pos. 13 | groove ball bearing
1 619 PB9 830
-
-
Pos. 14 | groove ball bearing
1 619 PB9 831
-
-
Pos. 22 | Spring
1 619 PB9 832
-
-
Pos. 23 | Block
1 619 PB9 833
-
-
Pos. 24 | Motor Housing
1 619 PB9 834
-
-
Pos. 25 | Clamping bracket
1 619 PB9 835
-
-
Pos. 26 | Spacer Ring
1 619 PB9 836
-
-
Pos. 27 | Gasket
1 619 PB9 837
-
-
Pos. 28 | Eccentric Shaft
1 619 PB9 838
-
-
Pos. 29 | Counterweight
1 619 PB9 839
-
-
Pos. 30 | Plain Washer
1 619 PB9 840
-
-
Pos. 31 | Ball Bearing
1 619 PB9 841
-
-
Pos. 32 | Backup ring
1 619 PB9 842
-
-
Pos. 33 | Bearing Flange
1 619 PB9 843
-
-
Pos. 34 | O-Ring
1 619 PB9 844
-
-
Pos. 36 | Damping Ring
1 619 PB9 846
-
-
Pos. 37 | Switch Slide
1 619 PB9 847
-
-
Pos. 38 | Cover
1 619 PB9 848
-
-
Pos. 39 | Lever
1 619 PB9 849
-
-
Pos. 40 | Torsion Spring
1 619 PB9 850
-
-
Pos. 41 | Contact Screw
1 619 PB9 851
-
-
Pos. 42 | Insulating Plate
1 619 PB9 852
-
-
Pos. 43 | Block
1 619 PB9 853
-
-
Pos. 44 | Torsion Spring
1 619 PB9 854
-
-
Pos. 49 | Damping Ring
1 619 PB9 859
-
-
Pos. 64 | Screw
1 619 PB9 874
-
-
Pos. 66 | Screw
1 619 PB9 875
-
-
Pos. 67 | Seal
1 619 PB9 876
-
-
Pos. 68 | Screw
1 619 PB9 877
-
-
Pos. 69 | Wire Retainer
1 619 PB9 878
-
-
Pos. 70 | Detent Roller
1 619 PB9 879
-
-
Pos. 71 | Spacer
1 619 PB9 880
-
-
Pos. 72 | Screw
1 619 PB9 881
-
-
Pos. 624 | Gear Head
1 619 PB9 882
-
-
Pos. 625 | Electronics Module
1 619 PB6 095
-
-
Pos. 803 | Armature assembly
1 619 PS1 230
-
-
Pos. 808 | Nameplate
1 619 PB9 801
-
-
Turn the device for 90 degrees.
