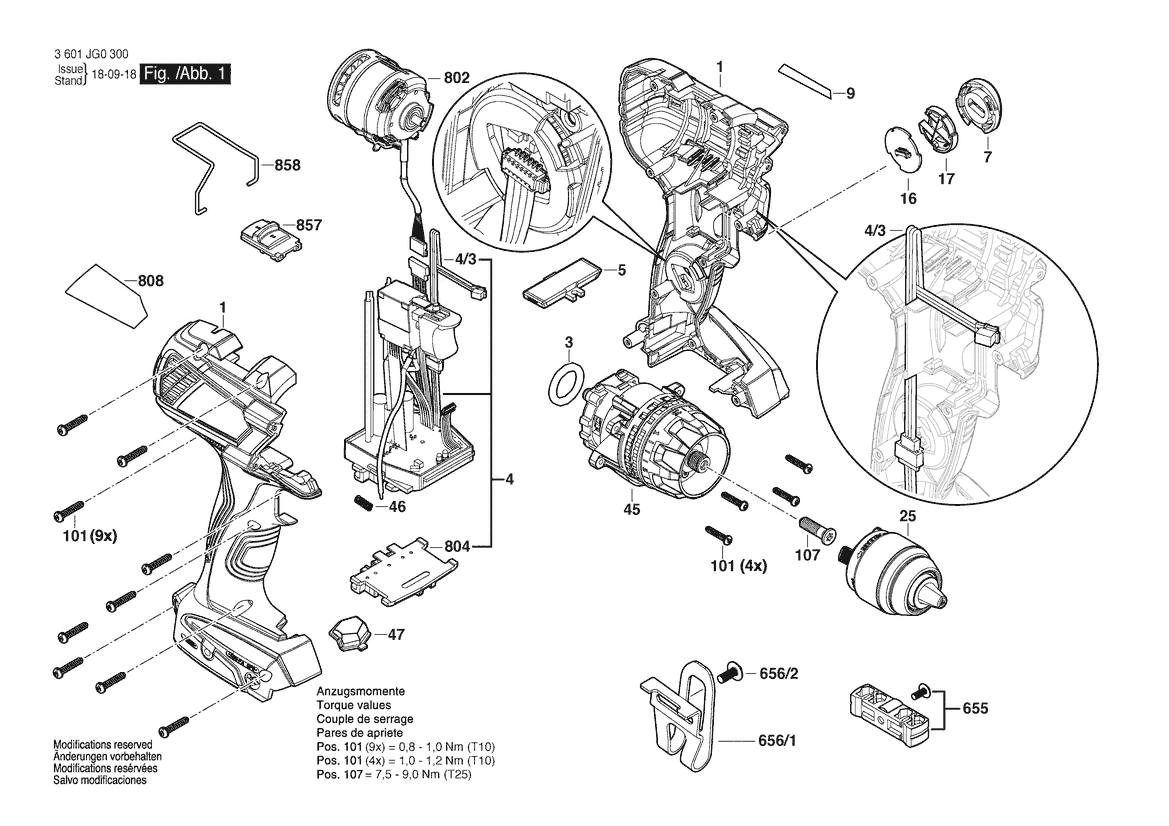

3 601 JG0 301
Cover Panel
-
Spare part number: 1 600 A00 M53
Position: 17
Availability: 1
Price group: 10
-
Cover unit
-
Spare part number: 1 600 A00 RU9
Position: 7
Availability: 1
Price group: 14
-
Motor Spare Parts Set
-
Spare part number: 1 600 A00 XG0
Position: 802
Availability: 1
Price group: 44
-
Keyless Chuck
-
Spare part number: 1 600 A01 YE8
Position: 25
Availability: 1
Price group: 34
-
Nameplate GSB 18V-110 SP
-
Spare part number: 1 601 11A 75D
Position: 808
Availability: 1
Price group: 13
-
Manufacturer's nameplate GSB 18V-110
-
Spare part number: 1 601 11C 3A8
Position: 9
Availability: 1
Price group: 13
-

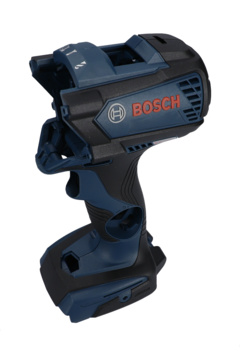

Housing
-
Spare part number: 1 605 108 2CJ
Position: 1
Availability: 1
Price group: 29
-
Housing
-
Spare part number: 1 605 108 2CJ
Position: 1
Availability: 1
Price group: 29
-
Electronics Module
-
Spare part number: 1 607 233 5DB
Position: 4
Availability: 1
Price group: 48
-
Printed-Board Assembly
-
Spare part number: 1 607 503 333
Position: 16
Availability: 1
Price group: 24
-
Printed-Board Assembly
-
Spare part number: 1 607 503 377
Position: 4/3
Availability: 1
Price group: 22
-
Printed-Board Assembly
-
Spare part number: 1 607 503 377
Position: 4/3
Availability: 1
Price group: 22
-
Compression Spring
-
Spare part number: 1 609 280 477
Position: 46
Availability: 1
Price group: 11
-
Contact retainer 18V
-
Spare part number: 1 609 280 820
Position: 804
Availability: 1
Price group: 18
-
Countersunk-Head Screw M6X23 LEFTHAND THREADS
-
Spare part number: 2 603 421 229
Position: 107
Availability: 1
Price group: 11
-
Lens
-
Spare part number: 2 609 101 490
Position: 47
Availability: 1
Price group: 11
-
Adjusting lever
-
Spare part number: 2 609 101 551
Position: 5
Availability: 1
Price group: 10
-
Switch Slide
-
Spare part number: 2 609 101 554
Position: 857
Availability: 1
Price group: 12
-
Torx Oval-Head Screw
-
Spare part number: 2 609 110 353
Position: 101
Availability: 13
Price group: 12
-
Torx Oval-Head Screw
-
Spare part number: 2 609 110 353
Position: 101
Availability: 13
Price group: 12
-
Screw
-
Spare part number: 2 609 110 834
Position: 656/2
Availability: 1
Price group: 11
-
Clip
-
Spare part number: 2 609 111 584
Position: 656/1
Availability: 1
Price group: 15
-
Switch Spring
-
Spare part number: 2 609 112 036
Position: 858
Availability: 1
Price group: 10
-
O-Ring
-
Spare part number: 2 609 170 278
Position: 3
Availability: 1
Price group: 12
-
Bit holder
-
Spare part number: 2 609 199 748
Position: 655
Availability: 1
Price group: 12
-
Gear Box
-
Spare part number: 2 609 199 916
Position: 45
Availability: 1
Price group: 48
-
Auxiliary Handle
-
Spare part number: 1 602 025 07X
Position: 650
Availability: 1
Price group: 29
-
Electronics Module
-
Spare part number: 1 607 233 5DB
Position: 4
Availability: 1
Price group: 48
-
-
Please click for futher details
Sticker
-
Spare part number: 2 601 115 537
Position: 91/1/22
Availability: 1
Price group: 11
-
-
Please click for futher details
-
Please click for futher details
-
Please click for futher details
-
Please click for futher details
-
Please click for futher details
-
Please click for futher details
-
Please click for futher details
-
Please click for futher details
1
2
Spare parts in cart
34 Parts found
Sort by
Description
Pos. 1 | Housing
1 605 108 2CJ
-
Pos. 3 | O-Ring
2 609 170 278
-
Pos. 4 | Electronics Module
1 607 233 5DB
-
Pos. 4/3 | Printed-Board Assembly
1 607 503 377
-
Pos. 5 | Adjusting lever
2 609 101 551
-
Pos. 7 | Cover unit
1 600 A00 RU9
-
Pos. 9 | Manufacturer's nameplate GSB 18V-110
1 601 11C 3A8
-
Pos. 16 | Printed-Board Assembly
1 607 503 333
-
Pos. 17 | Cover Panel
1 600 A00 M53
-
Pos. 25 | Keyless Chuck
1 600 A01 YE8
-
Pos. 45 | Gear Box
2 609 199 916
-
Pos. 46 | Compression Spring
1 609 280 477
-
Pos. 47 | Lens
2 609 101 490
-

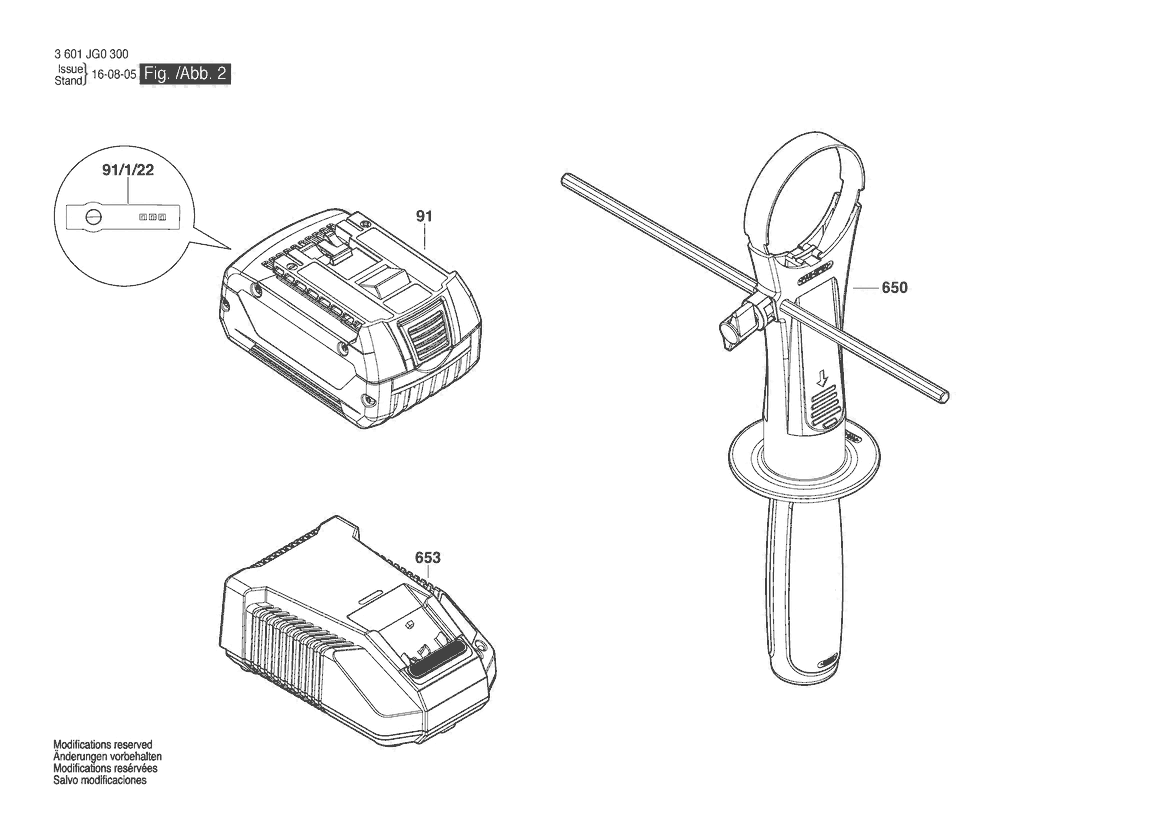

Pos. 91 | Battery Pack
1 607 A35 0AN
-
Pos. 91 | Battery Pack GBA 18V 4,0AH
2 607 336 723
-
Pos. 91 | Battery Pack
2 607 336 815
-
Pos. 91 | Battery Pack
2 607 337 069
-
Pos. 91 | Battery Pack
2 607 337 263
-
Pos. 91/1/22 | Sticker
2 601 115 537
-
Pos. 101 | Torx Oval-Head Screw
2 609 110 353
-
Pos. 107 | Countersunk-Head Screw M6X23 LEFTHAND THREADS
2 603 421 229
-
Pos. 650 | Auxiliary Handle
1 602 025 07X
-
Pos. 653 | Fast Charger
2 607 225 893
-
Pos. 653 | Charger EU GAL 1880 CV 230/14,4-18V
2 607 225 921
-
Pos. 653 | Charger
2 607 225 923
-
Pos. 653 | Fast Charger
2 607 226 251
-
Pos. 655 | Bit holder
2 609 199 748
-
Pos. 656/1 | Clip
2 609 111 584
-
Pos. 656/2 | Screw
2 609 110 834
-
Pos. 802 | Motor Spare Parts Set
1 600 A00 XG0
-
Pos. 804 | Contact retainer 18V
1 609 280 820
-
Pos. 808 | Nameplate GSB 18V-110 SP
1 601 11A 75D
-
Pos. 857 | Switch Slide
2 609 101 554
-
Pos. 858 | Switch Spring
2 609 112 036
-
