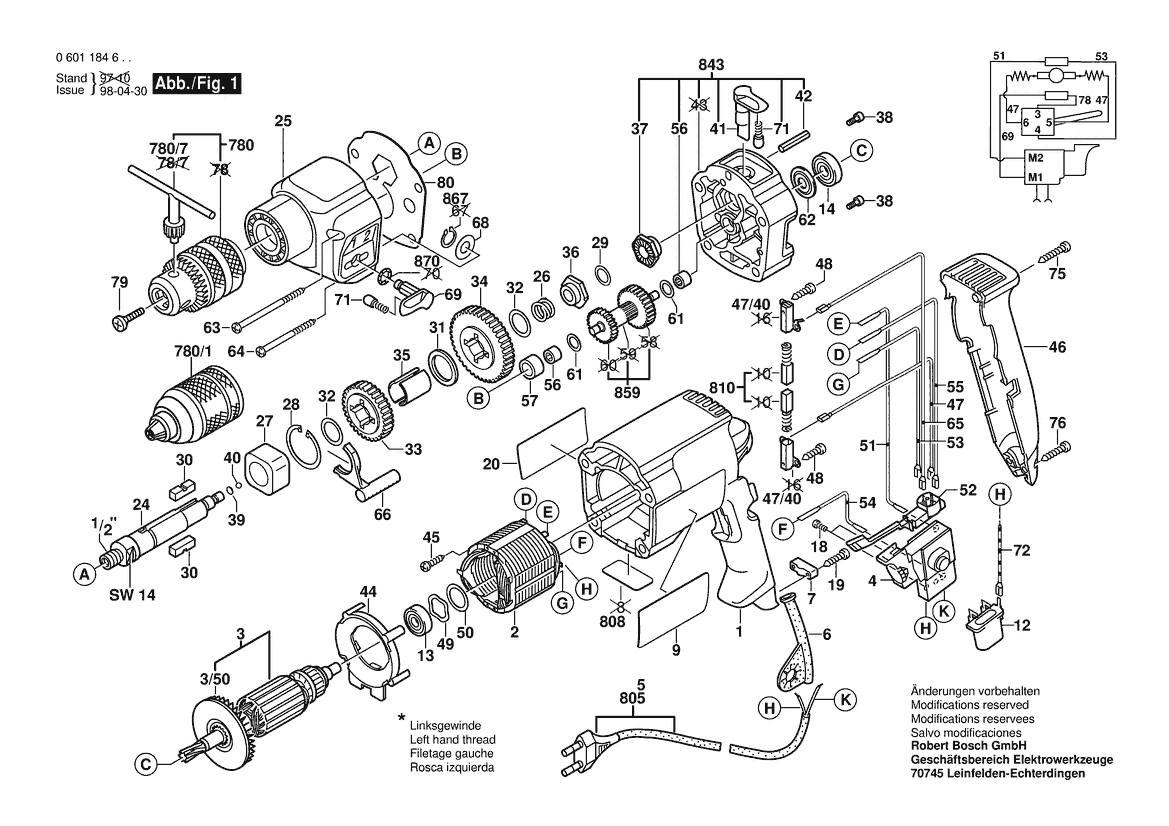

0 601 184 607
Field 220-240V
-
Spare part number: 1 604 220 254
Position: 2
Availability: 1
Price group: 30
-
Power supply cord EU 2,65M 2 X 0,75MM H05 W-F
-
Spare part number: 1 604 460 312
Position: 5
Availability: 1
Price group: 22
-
Chuck Ø1,5-13 MM, 1/2"
-
Spare part number: 1 608 571 069
Position: 780
Availability: 1
Price group: 31
-
Screw
-
Spare part number: 1 619 P00 029
Position: 19
Availability: 2
Price group: 10
-
Torx Oval-Head Screw 4X20
-
Spare part number: 1 619 P00 105
Position: 76
Availability: 1
Price group: 11
-
Screw
-
Spare part number: 1 619 P00 106
Position: 75
Availability: 1
Price group: 10
-
Torx Oval-Head Screw 3X10
-
Spare part number: 1 619 P00 220
Position: 48
Availability: 4
Price group: 10
-
Torx Oval-Head Screw 3X10
-
Spare part number: 1 619 P00 220
Position: 48
Availability: 4
Price group: 10
-
Torx Oval-Head Screw 3X10
-
Spare part number: 1 619 P00 220
Position: 45
Availability: 4
Price group: 10
-
Nameplate
-
Spare part number: 1 619 P00 513
Position: 808
Availability: 1
Price group: 15
-
groove ball bearing
-
Spare part number: 1 619 P02 417
Position: 14
Availability: 1
Price group: 19
-
Ball Bearing 7X22X7
-
Spare part number: 1 900 905 018
Position: 13
Availability: 1
Price group: 28
-
Ball DIN 5401-5,5MM-III-ST
-
Spare part number: 1 903 230 010
Position: 40
Availability: 1
Price group: 10
-
-
Please click for futher details
-
Please click for futher details
Shim 0,3 MM
-
Spare part number: 2 600 100 607
Position: 61
Availability: 3
Price group: 11
-
Shim 0,3 MM
-
Spare part number: 2 600 100 607
Position: 61
Availability: 3
Price group: 11
-
Shim washer
-
Spare part number: 2 600 100 618
Position: 68
Availability: 1
Price group: 10
-
-
Please click for futher details
Shim 0,3 MM
-
Spare part number: 2 600 101 047
Position: 29
Availability: 1
Price group: 11
-
Retaining Washer
-
Spare part number: 2 600 101 084
Position: 31
Availability: 1
Price group: 11
-
Shim 1,0 MM
-
Spare part number: 2 600 101 515
Position: 32
Availability: 1
Price group: 10
-
Shim 1,0 MM
-
Spare part number: 2 600 101 515
Position: 32
Availability: 1
Price group: 10
-
-
Please click for futher details
-
Please click for futher details
Shim
-
Spare part number: 2 600 150 004
Position: 49
Availability: 1
Price group: 12
-
Catch Disk
-
Spare part number: 2 600 190 070
Position: 36
Availability: 1
Price group: 18
-
Catch Disk
-
Spare part number: 2 600 190 071
Position: 37
Availability: 1
Price group: 19
-
Sintered-Metal Bushing 14,7-0,15
-
Spare part number: 2 600 301 031
Position: 27
Availability: 1
Price group: 16
-
Bearing Sleeve
-
Spare part number: 2 600 400 027
Position: 57
Availability: 1
Price group: 16
-
Cupped Washer
-
Spare part number: 2 600 500 002
Position: 62
Availability: 1
Price group: 11
-
Ratchet Cap
-
Spare part number: 2 600 590 006
Position: 71
Availability: 2
Price group: 11
-
Ratchet Cap
-
Spare part number: 2 600 590 006
Position: 71
Availability: 2
Price group: 11
-
-
Please click for futher details
-
Please click for futher details
Needle-Roller Bearing Ø6 MM
-
Spare part number: 2 600 914 010
Position: 56
Availability: 2
Price group: 14
-
Needle-Roller Bearing Ø6 MM
-
Spare part number: 2 600 914 010
Position: 56
Availability: 2
Price group: 14
-
Cable Clip
-
Spare part number: 2 601 035 001
Position: 7
Availability: 1
Price group: 11
-
Gasket
-
Spare part number: 2 601 073 012
Position: 80
Availability: 1
Price group: 10
-
Guiding Plate
-
Spare part number: 2 601 098 031
Position: 35
Availability: 2
Price group: 11
-
Manufacturer's nameplate GSB 20-2 RE SUNNY SIDE
-
Spare part number: 2 601 117 005
Position: 9
Availability: 1
Price group: 15
-
Reference Plate
-
Spare part number: 2 601 117 095
Position: 20
Availability: 1
Price group: 15
-
Cover Disc
-
Spare part number: 2 601 328 033
Position: 44
Availability: 1
Price group: 15
-
Rotary Knob BLACK
-
Spare part number: 2 602 026 038
Position: 69
Availability: 1
Price group: 18
-
Rotary Knob BLACK
-
Spare part number: 2 602 026 072
Position: 41
Availability: 1
Price group: 21
-
Adjusting Slide
-
Spare part number: 2 602 033 011
Position: 66
Availability: 1
Price group: 15
-
Flat Key
-
Spare part number: 2 602 300 034
Position: 30
Availability: 2
Price group: 13
-
Flat Key
-
Spare part number: 2 602 300 034
Position: 30
Availability: 2
Price group: 13
-
Socket head cap screw M3X6,5-4.8
-
Spare part number: 2 603 410 001
Position: 18
Availability: 2
Price group: 11
-
Thread-forming tap. Screw M4X8
-
Spare part number: 2 603 410 048
Position: 38
Availability: 2
Price group: 11
-
Thread-forming tap. Screw M4X8
-
Spare part number: 2 603 410 048
Position: 38
Availability: 2
Price group: 11
-
Countersunk-Head Screw M6X27 LEFTHAND THREADS
-
Spare part number: 2 603 421 226
Position: 79
Availability: 1
Price group: 11
-
Headless Screw
-
Spare part number: 2 603 435 070
Position: 63
Availability: 2
Price group: 12
-
Headless Screw 65 MM
-
Spare part number: 2 603 435 071
Position: 64
Availability: 2
Price group: 16
-
Armature With Fan 220-240V
-
Spare part number: 2 604 011 222
Position: 3
Availability: 1
Price group: 37
-
Carbon-Brush Set
-
Spare part number: 2 604 321 905
Position: 810
Availability: 1
Price group: 23
-
Cable L=130 MM WHITE
-
Spare part number: 2 604 448 005
Position: 51
Availability: 1
Price group: 11
-
Connecting Cable L=68 MM WHITE
-
Spare part number: 2 604 448 100
Position: 53
Availability: 1
Price group: 10
-
Connecting Cable L=110 MM WHITE
-
Spare part number: 2 604 448 146
Position: 54
Availability: 1
Price group: 11
-
Connecting Cable
-
Spare part number: 2 604 448 254
Position: 55
Availability: 1
Price group: 10
-
Brush Holder
-
Spare part number: 2 604 449 046
Position: 65
Availability: 1
Price group: 13
-
Brush Holder
-
Spare part number: 2 604 449 047
Position: 47/40
Availability: 1
Price group: 13
-
Brush Holder
-
Spare part number: 2 604 449 047
Position: 47/40
Availability: 1
Price group: 13
-
Compression Spring
-
Spare part number: 2 604 616 006
Position: 26
Availability: 1
Price group: 11
-
Motor Housing BLUE
-
Spare part number: 2 605 104 653
Position: 1
Availability: 1
Price group: 26
-
Housing Cover BLUE
-
Spare part number: 2 605 132 051
Position: 46
Availability: 1
Price group: 20
-
Intermediate Flange
-
Spare part number: 2 605 700 941
Position: 843
Availability: 1
Price group: 36
-
Gear Housing BLUE
-
Spare part number: 2 605 806 422
Position: 25
Availability: 1
Price group: 27
-
Drilling Spindle SW 14
-
Spare part number: 2 606 135 086
Position: 24
Availability: 1
Price group: 27
-
Toothed Shaft Z= 10/29/22
-
Spare part number: 2 606 309 931
Position: 859
Availability: 1
Price group: 29
-
Cylindrical Gear
-
Spare part number: 2 606 317 082
Position: 34
Availability: 1
Price group: 25
-
Cylindrical Gear
-
Spare part number: 2 606 317 083
Position: 33
Availability: 1
Price group: 23
-
Fan
-
Spare part number: 2 606 610 029
Position: 3/50
Availability: 1
Price group: 13
-
Parts Set
-
Spare part number: 2 607 010 226
Position: 870
Availability: 1
Price group: 11
-
Switch
-
Spare part number: 2 607 200 209
Position: 4
Availability: 1
Price group: 36
-
Change-Over Switch
-
Spare part number: 2 607 200 216
Position: 52
Availability: 1
Price group: 24
-
Chuck Wrench SG2
-
Spare part number: 2 607 950 007
Position: 780/7
Availability: 1
Price group: 19
-
Locking washer DIN 6799-4-FST
-
Spare part number: 2 916 080 007
Position: 867
Availability: 1
Price group: 13
-
Spring retaining ring DIN 471 17X1 MM
-
Spare part number: 2 916 650 008
Position: 28
Availability: 1
Price group: 11
-
Slotted Spring Pin DIN 7346 4X24
-
Spare part number: 2 917 780 101
Position: 42
Availability: 1
Price group: 10
-

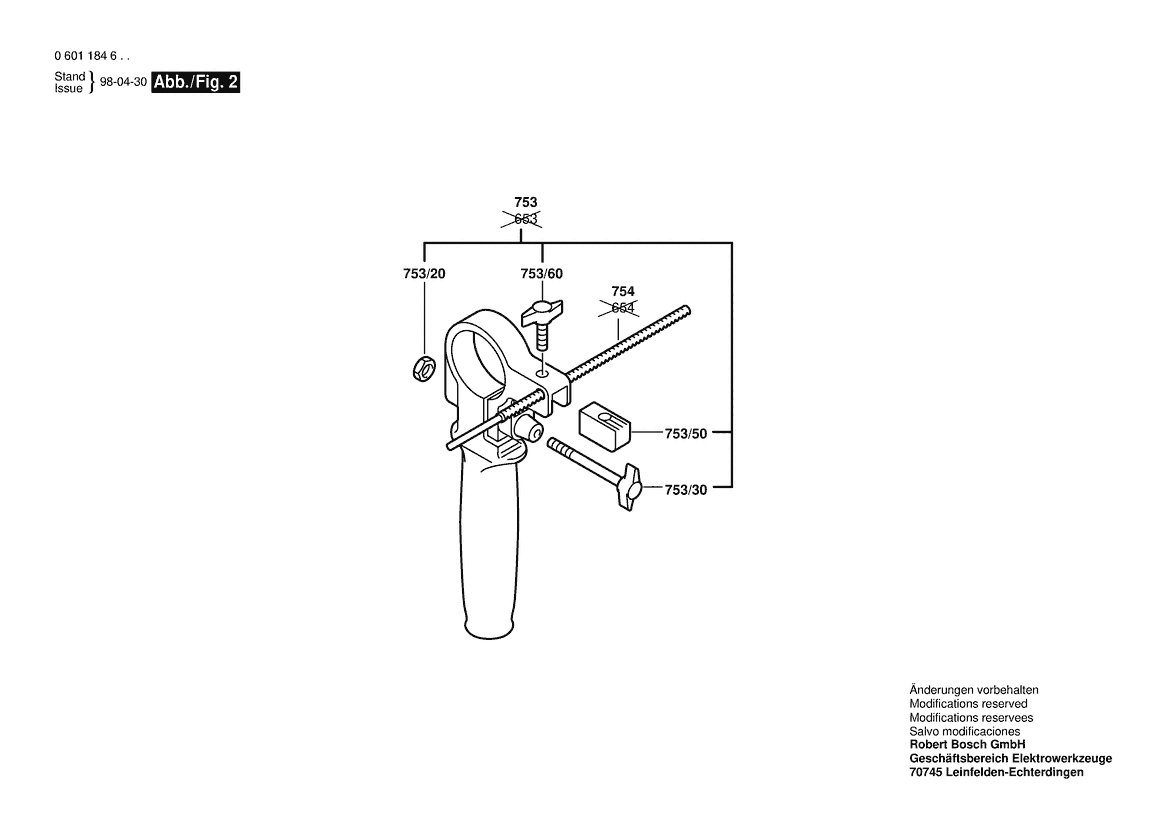

Auxiliary Handle Ø43 MM BLACK
-
Spare part number: 1 612 025 031
Position: 753
Availability: 1
Price group: 24
-
Depth-Gauge SW 6X210 MM
-
Spare part number: 1 613 001 005
Position: 754
Availability: 1
Price group: -
-
Wing Screw M6X(15)55
-
Spare part number: 1 613 480 007
Position: 753/30
Availability: 1
Price group: 11
-
Wing Screw M6X20 MM
-
Spare part number: 1 613 480 008
Position: 753/60
Availability: 1
Price group: 11
-
Gasket
-
Spare part number: 2 601 073 012
Position: 80
Availability: 1
Price group: 10
-
Clamping Plate M6
-
Spare part number: 2 608 040 014
Position: 753/50
Availability: 1
Price group: 14
-
Hex Nut DIN 934-M6-8-A
-
Spare part number: 2 915 011 007
Position: 753/20
Availability: 2
Price group: 10
-
1
2
Spare parts in cart
77 Parts found
Sort by
Description
Pos. 1 | Motor Housing BLUE
2 605 104 653
-
Pos. 2 | Field 220-240V
1 604 220 254
-
Pos. 3 | Armature With Fan 220-240V
2 604 011 222
-
Pos. 3/50 | Fan
2 606 610 029
-
Pos. 4 | Switch
2 607 200 209
-
Pos. 5 | Power supply cord EU 2,65M 2 X 0,75MM H05 W-F
1 604 460 312
-
Pos. 6 | Grommet Ø6,9 MM
2 600 707 059
-
Pos. 6 | Grommet Ø11,6-Ø12,5X84 MM
2 600 707 060
-
Pos. 7 | Cable Clip
2 601 035 001
-
Pos. 9 | Manufacturer's nameplate GSB 20-2 RE SUNNY SIDE
2 601 117 005
-
Pos. 13 | Ball Bearing 7X22X7
1 900 905 018
-
Pos. 14 | groove ball bearing
1 619 P02 417
-
Pos. 18 | Socket head cap screw M3X6,5-4.8
2 603 410 001
-
Pos. 19 | Screw
1 619 P00 029
-
Pos. 20 | Reference Plate
2 601 117 095
-
Pos. 24 | Drilling Spindle SW 14
2 606 135 086
-
Pos. 25 | Gear Housing BLUE
2 605 806 422
-
Pos. 26 | Compression Spring
2 604 616 006
-
Pos. 27 | Sintered-Metal Bushing 14,7-0,15
2 600 301 031
-
Pos. 28 | Spring retaining ring DIN 471 17X1 MM
2 916 650 008
-
Pos. 29 | Shim 0,3 MM
2 600 101 047
-
Pos. 30 | Flat Key
2 602 300 034
-
Pos. 31 | Retaining Washer
2 600 101 084
-
Pos. 32 | Shim 1,0 MM
2 600 101 515
-
Pos. 33 | Cylindrical Gear
2 606 317 083
-
Pos. 34 | Cylindrical Gear
2 606 317 082
-
Pos. 35 | Guiding Plate
2 601 098 031
-
Pos. 36 | Catch Disk
2 600 190 070
-
Pos. 37 | Catch Disk
2 600 190 071
-
Pos. 38 | Thread-forming tap. Screw M4X8
2 603 410 048
-
Pos. 39 | Shim washer 0,2 MM
2 600 000 012
-
Pos. 39 | Shim washer 0,5 MM
2 600 000 014
-
Pos. 40 | Ball DIN 5401-5,5MM-III-ST
1 903 230 010
-
Pos. 41 | Rotary Knob BLACK
2 602 026 072
-
Pos. 42 | Slotted Spring Pin DIN 7346 4X24
2 917 780 101
-
Pos. 44 | Cover Disc
2 601 328 033
-
Pos. 46 | Housing Cover BLUE
2 605 132 051
-
Pos. 47/40 | Brush Holder
2 604 449 047
-
Pos. 48 | Torx Oval-Head Screw 3X10
1 619 P00 220
-
Pos. 49 | Shim
2 600 150 004
-
Pos. 50 | Shim washer 0,3 MM
2 600 101 027
-
Pos. 50 | Shim washer 0,2 MM
2 600 101 665
-
Pos. 50 | Shim washer 0,5 MM
2 600 101 667
-
Pos. 51 | Cable L=130 MM WHITE
2 604 448 005
-
Pos. 52 | Change-Over Switch
2 607 200 216
-
Pos. 53 | Connecting Cable L=68 MM WHITE
2 604 448 100
-
Pos. 54 | Connecting Cable L=110 MM WHITE
2 604 448 146
-
Pos. 55 | Connecting Cable
2 604 448 254
-
Pos. 56 | Needle-Roller Bearing Ø6 MM
2 600 914 010
-
Pos. 57 | Bearing Sleeve
2 600 400 027
-
Pos. 61 | Shim 0,3 MM
2 600 100 607
-
Pos. 62 | Cupped Washer
2 600 500 002
-
Pos. 63 | Headless Screw
2 603 435 070
-
Pos. 64 | Headless Screw 65 MM
2 603 435 071
-
Pos. 65 | Brush Holder
2 604 449 046
-
Pos. 66 | Adjusting Slide
2 602 033 011
-
Pos. 68 | Shim washer
2 600 100 618
-
Pos. 69 | Rotary Knob BLACK
2 602 026 038
-
Pos. 71 | Ratchet Cap
2 600 590 006
-
Pos. 75 | Screw
1 619 P00 106
-
Pos. 76 | Torx Oval-Head Screw 4X20
1 619 P00 105
-
Pos. 79 | Countersunk-Head Screw M6X27 LEFTHAND THREADS
2 603 421 226
-
Pos. 80 | Gasket
2 601 073 012
-
Pos. 753 | Auxiliary Handle Ø43 MM BLACK
1 612 025 031
-
Pos. 753/20 | Hex Nut DIN 934-M6-8-A
2 915 011 007
-
Pos. 753/30 | Wing Screw M6X(15)55
1 613 480 007
-
Pos. 753/50 | Clamping Plate M6
2 608 040 014
-
Pos. 753/60 | Wing Screw M6X20 MM
1 613 480 008
-
Pos. 754 | Depth-Gauge SW 6X210 MM
1 613 001 005
-
Pos. 780 | Chuck Ø1,5-13 MM, 1/2"
1 608 571 069
-
Pos. 780/7 | Chuck Wrench SG2
2 607 950 007
-
Pos. 808 | Nameplate
1 619 P00 513
-
Pos. 810 | Carbon-Brush Set
2 604 321 905
-
Pos. 843 | Intermediate Flange
2 605 700 941
-
Pos. 859 | Toothed Shaft Z= 10/29/22
2 606 309 931
-
Pos. 867 | Locking washer DIN 6799-4-FST
2 916 080 007
-
Pos. 870 | Parts Set
2 607 010 226
-
