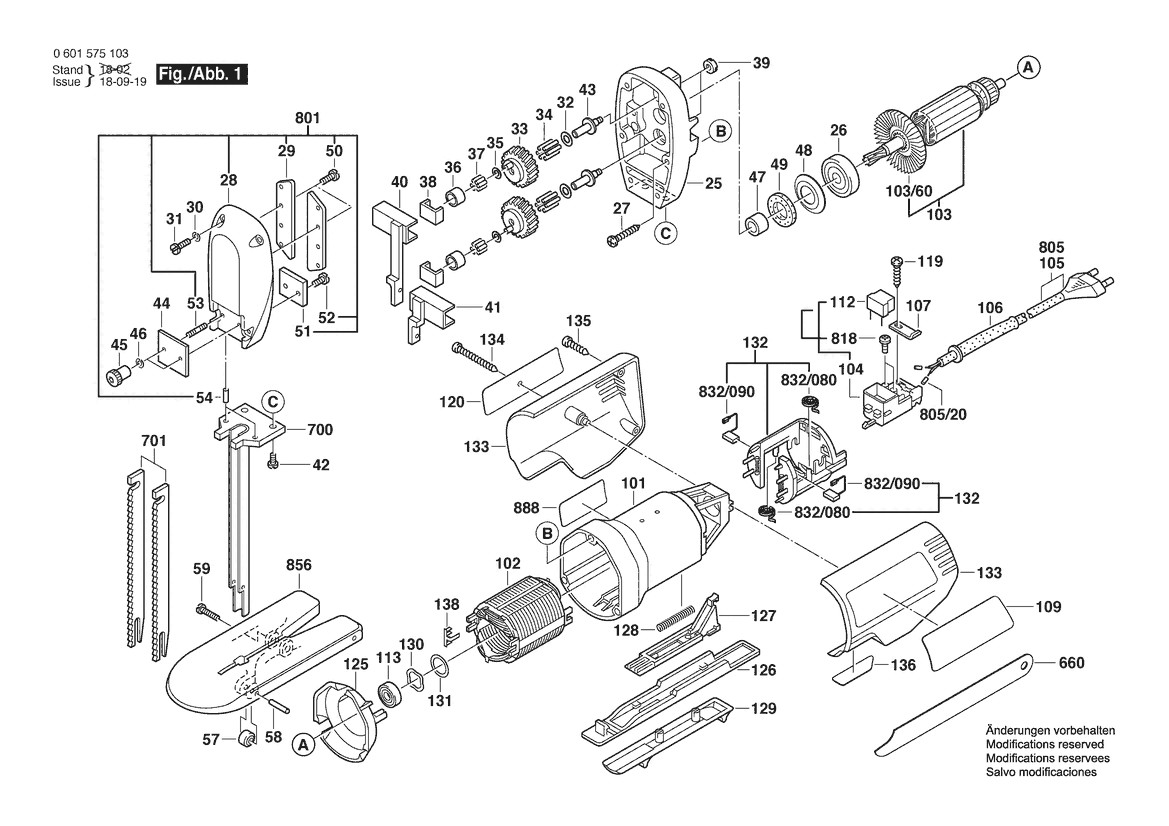

0 601 575 142
Nameplate
-
Spare part number: 1 601 11A 3H3
Position: 888
Availability: 1
Price group: 13
-
Fastening Clamp
-
Spare part number: 1 601 302 017
Position: 107
Availability: 1
Price group: 10
-
Armature
-
Spare part number: 1 604 010 B6R
Position: 103
Availability: 1
Price group: 41
-
Power supply cord GB 240V 2,65M 2 X 1,0MM H05 VV-F
-
Spare part number: 1 604 460 182
Position: 105
Availability: 1
Price group: 27
-
Spiral Spring
-
Spare part number: 1 604 652 013
Position: 832/080
Availability: 2
Price group: 11
-
Spiral Spring
-
Spare part number: 1 604 652 013
Position: 832/080
Availability: 2
Price group: 11
-
Carbon-Brush Set
-
Spare part number: 1 607 014 17J
Position: 832/090
Availability: 1
Price group: 22
-
Carbon-Brush Set
-
Spare part number: 1 607 014 17J
Position: 832/090
Availability: 1
Price group: 22
-
Eccentric Cog Wheel
-
Spare part number: 1 617 S01 Z60
Position: 33
Availability: 2
Price group: 29
-
Needle Roller
-
Spare part number: 1 903 201 521
Position: 58
Availability: 4
Price group: 10
-
-
Please click for futher details
-
Please click for futher details
-
Please click for futher details
-
Please click for futher details
-
Please click for futher details
Shim 0,3 MM
-
Spare part number: 2 600 101 617
Position: 131
Availability: 1
Price group: 11
-
Felt Washer
-
Spare part number: 2 600 108 026
Position: 49
Availability: 1
Price group: 11
-
Shim
-
Spare part number: 2 600 150 003
Position: 130
Availability: 1
Price group: 12
-
Roller
-
Spare part number: 2 600 300 005
Position: 36
Availability: 2
Price group: 21
-
Roller
-
Spare part number: 2 600 300 011
Position: 57
Availability: 4
Price group: 11
-
Seal Bushing
-
Spare part number: 2 600 300 047
Position: 47
Availability: 1
Price group: 13
-
Cupped Washer
-
Spare part number: 2 600 500 017
Position: 48
Availability: 1
Price group: 10
-
Grommet Ø6,5-Ø6,9X95 MM
-
Spare part number: 2 600 703 012
Position: 106
Availability: 1
Price group: 14
-
Ball Bearing 7X19X6
-
Spare part number: 2 600 905 032
Position: 113
Availability: 1
Price group: 17
-
Ball Bearing 9X24X7
-
Spare part number: 2 600 905 095
Position: 26
Availability: 1
Price group: 24
-
Scraper
-
Spare part number: 2 601 030 010
Position: 660
Availability: 1
Price group: 13
-
Pressure Plate
-
Spare part number: 2 601 034 010
Position: 44
Availability: 1
Price group: 19
-
Guide Rail
-
Spare part number: 2 601 038 001
Position: 29
Availability: 2
Price group: 15
-
Retaining Bracket
-
Spare part number: 2 601 320 018
Position: 38
Availability: 2
Price group: 14
-
Cover Disc
-
Spare part number: 2 601 328 002
Position: 125
Availability: 1
Price group: 14
-
Contact Spring
-
Spare part number: 2 601 329 037
Position: 138
Availability: 1
Price group: 11
-
Lifting Rod
-
Spare part number: 2 602 305 014
Position: 41
Availability: 1
Price group: 39
-
Lifting Rod
-
Spare part number: 2 602 305 016
Position: 40
Availability: 1
Price group: 39
-
Needle Roller 1,5X5,8 MM
-
Spare part number: 2 603 201 037
Position: 37
Availability: 22
Price group: 13
-
Slotted Round Nut
-
Spare part number: 2 603 341 007
Position: 39
Availability: 2
Price group: 11
-
Stud
-
Spare part number: 2 603 502 015
Position: 53
Availability: 2
Price group: 15
-
Bearing bolt
-
Spare part number: 2 603 520 010
Position: 43
Availability: 2
Price group: 27
-
Field 220-230V
-
Spare part number: 2 604 220 502
Position: 102
Availability: 1
Price group: 34
-
Compression Spring
-
Spare part number: 2 604 611 033
Position: 128
Availability: 1
Price group: 12
-
Housing Cover BLUE
-
Spare part number: 2 605 104 339
Position: 133
Availability: 1
Price group: 26
-
Housing Cover BLUE
-
Spare part number: 2 605 104 339
Position: 133
Availability: 1
Price group: 26
-
Motor Housing BLUE
-
Spare part number: 2 605 108 060
Position: 101
Availability: 1
Price group: 26
-
Gear Cover
-
Spare part number: 2 605 500 056
Position: 28
Availability: 1
Price group: 43
-
Gear Cover
-
Spare part number: 2 605 500 905
Position: 801
Availability: 1
Price group: 47
-
Gear Housing
-
Spare part number: 2 605 806 082
Position: 25
Availability: 1
Price group: 43
-
Fan
-
Spare part number: 2 606 610 064
Position: 103/60
Availability: 1
Price group: 14
-
-
Please click for futher details
-
Please click for futher details
-
Please click for futher details
-
Please click for futher details
Switch
-
Spare part number: 2 607 200 286
Position: 104
Availability: 1
Price group: 26
-
Suppression Filter
-
Spare part number: 2 607 329 126
Position: 112
Availability: 1
Price group: -
-
Base Plate
-
Spare part number: 2 608 000 908
Position: 856
Availability: 1
Price group: -
-
Switch Rocker BLUE
-
Spare part number: 2 608 001 005
Position: 126
Availability: 1
Price group: 14
-
Switch Slide
-
Spare part number: 2 608 001 008
Position: 127
Availability: 1
Price group: 12
-
Switch Handle BLACK
-
Spare part number: 2 608 001 010
Position: 129
Availability: 1
Price group: 14
-
-
Please click for futher details
-
Please click for futher details
-
Please click for futher details
-
Please click for futher details
Socket head cap screw DIN 84-AM3,5X6-5.8
-
Spare part number: 2 910 011 082
Position: 50
Availability: 8
Price group: 10
-
Socket head cap screw DIN 84-AM3,5X8-5.8
-
Spare part number: 2 910 011 084
Position: 52
Availability: 2
Price group: 10
-
Socket head cap screw DIN 84-AM4X18-5.8
-
Spare part number: 2 910 011 128
Position: 31
Availability: 4
Price group: 10
-
Socket head cap screw DIN 84-AM4X8-8.8
-
Spare part number: 2 910 021 118
Position: 42
Availability: 2
Price group: 10
-
Socket head cap screw DIN 84-AM4X25-8.8
-
Spare part number: 2 910 021 132
Position: 59
Availability: 1
Price group: 10
-
Tapping Screw DIN 7971-BZ2,9X16
-
Spare part number: 2 910 211 007
Position: 135
Availability: 1
Price group: 11
-
Tapping Screw DIN 7971-ST3,9X16-F
-
Spare part number: 2 910 211 019
Position: 119
Availability: 1
Price group: 10
-
Tapping Screw DIN 7971-B3,9X45
-
Spare part number: 2 910 211 283
Position: 134
Availability: 1
Price group: 13
-
Torx Oval-Head Screw
-
Spare part number: 2 914 201 508
Position: 27
Availability: 3
Price group: 10
-
Spring Lock Washer DIN128-A5-FST
-
Spare part number: 2 916 690 002
Position: 46
Availability: 2
Price group: 10
-
Spring Lock Washer DIN 128-A4-FST
-
Spare part number: 2 916 690 003
Position: 30
Availability: 4
Price group: 10
-
Straight Pin 4H8X8 DIN 7
-
Spare part number: 2 917 500 093
Position: 54
Availability: 2
Price group: 11
-
Needle-Roller Assembly
-
Spare part number: 3 600 910 000
Position: 34
Availability: 2
Price group: 16
-
Sticker
-
Spare part number: 3 601 110 206
Position: 136
Availability: 1
Price group: 14
-
Sticker
-
Spare part number: 3 601 110 350
Position: 109
Availability: 1
Price group: 16
-
Sticker SHADOW SIDE
-
Spare part number: 3 601 110 351
Position: 120
Availability: 1
Price group: 14
-
Support Plate
-
Spare part number: 3 602 307 009
Position: 51
Availability: 1
Price group: 44
-
Round Nut
-
Spare part number: 3 603 345 016
Position: 45
Availability: 2
Price group: 25
-
Brush Holder
-
Spare part number: 3 604 336 010
Position: 132
Availability: 1
Price group: 39
-
Brush Holder
-
Spare part number: 3 604 336 010
Position: 132
Availability: 1
Price group: 39
-
Socket head cap screw M 3,5X7 MM
-
Spare part number: 3 607 030 229
Position: 818
Availability: 1
Price group: 18
-
1
Spare parts in cart
77 Parts found
Sort by
Description
Pos. 25 | Gear Housing
2 605 806 082
-
Pos. 26 | Ball Bearing 9X24X7
2 600 905 095
-
Pos. 27 | Torx Oval-Head Screw
2 914 201 508
-
Pos. 28 | Gear Cover
2 605 500 056
-
Pos. 29 | Guide Rail
2 601 038 001
-
Pos. 30 | Spring Lock Washer DIN 128-A4-FST
2 916 690 003
-
Pos. 31 | Socket head cap screw DIN 84-AM4X18-5.8
2 910 011 128
-
Pos. 32 | Shim 0,10 MM
2 600 100 611
-
Pos. 32 | Shim 0,50 MM
2 600 100 613
-
Pos. 33 | Eccentric Cog Wheel
1 617 S01 Z60
-
Pos. 34 | Needle-Roller Assembly
3 600 910 000
-
Pos. 35 | Shim 0,20 MM
2 600 100 586
-
Pos. 35 | Shim 0,30 MM
2 600 100 587
-
Pos. 35 | Shim 0,5 MM
2 600 100 588
-
Pos. 36 | Roller
2 600 300 005
-
Pos. 37 | Needle Roller 1,5X5,8 MM
2 603 201 037
-
Pos. 38 | Retaining Bracket
2 601 320 018
-
Pos. 39 | Slotted Round Nut
2 603 341 007
-
Pos. 40 | Lifting Rod
2 602 305 016
-
Pos. 41 | Lifting Rod
2 602 305 014
-
Pos. 42 | Socket head cap screw DIN 84-AM4X8-8.8
2 910 021 118
-
Pos. 43 | Bearing bolt
2 603 520 010
-
Pos. 44 | Pressure Plate
2 601 034 010
-
Pos. 45 | Round Nut
3 603 345 016
-
Pos. 46 | Spring Lock Washer DIN128-A5-FST
2 916 690 002
-
Pos. 47 | Seal Bushing
2 600 300 047
-
Pos. 48 | Cupped Washer
2 600 500 017
-
Pos. 49 | Felt Washer
2 600 108 026
-
Pos. 50 | Socket head cap screw DIN 84-AM3,5X6-5.8
2 910 011 082
-
Pos. 51 | Support Plate
3 602 307 009
-
Pos. 52 | Socket head cap screw DIN 84-AM3,5X8-5.8
2 910 011 084
-
Pos. 53 | Stud
2 603 502 015
-
Pos. 54 | Straight Pin 4H8X8 DIN 7
2 917 500 093
-
Pos. 57 | Roller
2 600 300 011
-
Pos. 58 | Needle Roller
1 903 201 521
-
Pos. 59 | Socket head cap screw DIN 84-AM4X25-8.8
2 910 021 132
-
Pos. 101 | Motor Housing BLUE
2 605 108 060
-
Pos. 102 | Field 220-230V
2 604 220 502
-
Pos. 103 | Armature
1 604 010 B6R
-
Pos. 103/60 | Fan
2 606 610 064
-
Pos. 104 | Switch
2 607 200 286
-
Pos. 105 | Power supply cord GB 240V 2,65M 2 X 1,0MM H05 VV-F
1 604 460 182
-
Pos. 106 | Grommet Ø6,5-Ø6,9X95 MM
2 600 703 012
-
Pos. 107 | Fastening Clamp
1 601 302 017
-
Pos. 109 | Sticker
3 601 110 350
-
Pos. 112 | Suppression Filter
2 607 329 126
-
Pos. 113 | Ball Bearing 7X19X6
2 600 905 032
-
Pos. 119 | Tapping Screw DIN 7971-ST3,9X16-F
2 910 211 019
-
Pos. 120 | Sticker SHADOW SIDE
3 601 110 351
-
Pos. 125 | Cover Disc
2 601 328 002
-
Pos. 126 | Switch Rocker BLUE
2 608 001 005
-
Pos. 127 | Switch Slide
2 608 001 008
-
Pos. 128 | Compression Spring
2 604 611 033
-
Pos. 129 | Switch Handle BLACK
2 608 001 010
-
Pos. 130 | Shim
2 600 150 003
-
Pos. 131 | Shim 0,3 MM
2 600 101 617
-
Pos. 132 | Brush Holder
3 604 336 010
-
Pos. 133 | Housing Cover BLUE
2 605 104 339
-
Pos. 134 | Tapping Screw DIN 7971-B3,9X45
2 910 211 283
-
Pos. 135 | Tapping Screw DIN 7971-BZ2,9X16
2 910 211 007
-
Pos. 136 | Sticker
3 601 110 206
-
Pos. 138 | Contact Spring
2 601 329 037
-
Pos. 660 | Scraper
2 601 030 010
-
Pos. 700 | Guide 130 MM, T42A
2 608 135 020
-
Pos. 700 | Guide 220 MM, T42B
2 608 135 021
-
Pos. 700 | Guide 300 MM, T42C
2 608 135 022
-
Pos. 700 | Guide 70 MM, T42D
2 608 135 023
-
Pos. 701 | Saw Blade Set 130 MM, T43A
2 607 018 010
-
Pos. 701 | Saw Blade Set 220 MM, T43B
2 607 018 011
-
Pos. 701 | Saw Blade Set 300 MM, T43C
2 607 018 012
-
Pos. 701 | Saw Blade Set 70 MM, T 43D
2 607 018 013
-
Pos. 801 | Gear Cover
2 605 500 905
-
Pos. 818 | Socket head cap screw M 3,5X7 MM
3 607 030 229
-
Pos. 832/080 | Spiral Spring
1 604 652 013
-
Pos. 832/090 | Carbon-Brush Set
1 607 014 17J
-
Pos. 856 | Base Plate
2 608 000 908
-
Pos. 888 | Nameplate
1 601 11A 3H3
-
