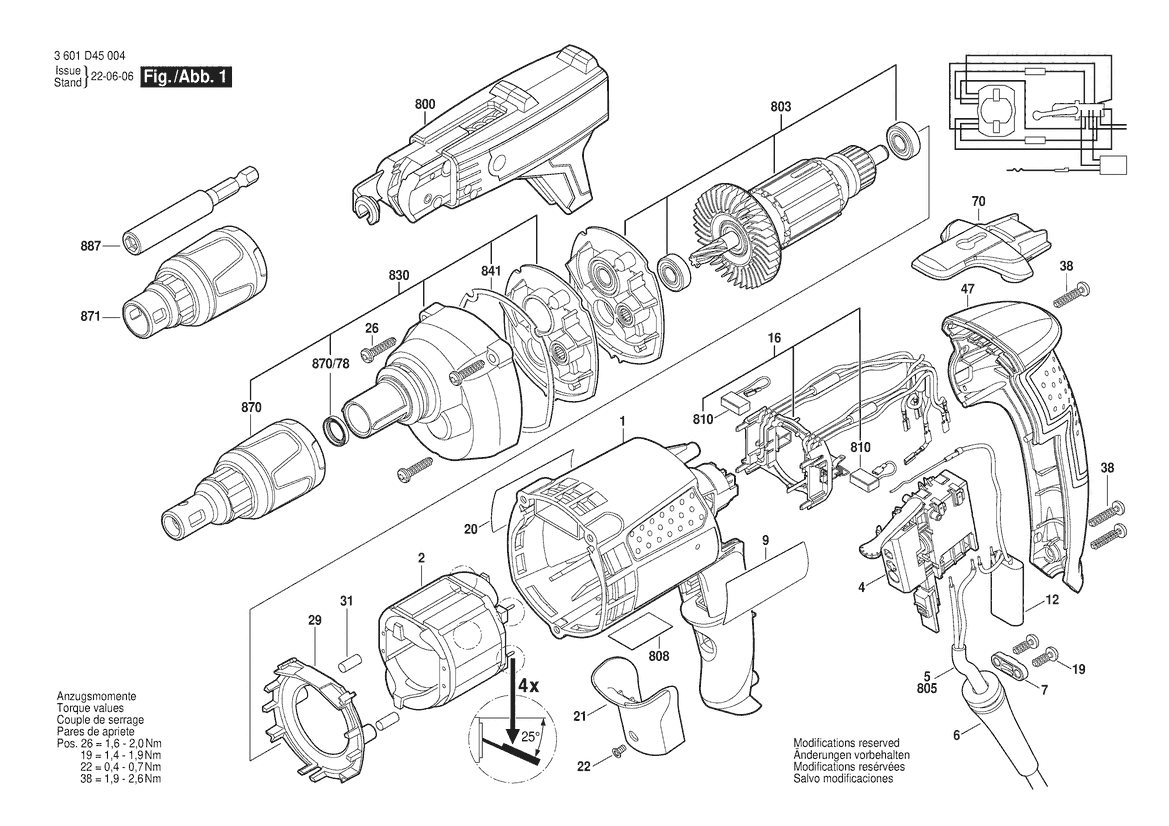

3 601 D45 004
Suppression Filter
-
Spare part number: 1 600 A02 K8Y
Position: 12
Availability: 1
Price group: -
-
Nameplate
-
Spare part number: 1 601 11A 53H
Position: 808
Availability: 1
Price group: 17
-
Manufacturer's nameplate
-
Spare part number: 1 601 11C 0VY
Position: 9
Availability: 1
Price group: 13
-
Power supply cord EU 230V 4,15M 2 X 1,0MM H05 RN-F
-
Spare part number: 1 607 000 386
Position: 805
Availability: 1
Price group: 29
-
Depth-Gauge
-
Spare part number: 2 600 460 049
Position: 870
Availability: 1
Price group: 27
-
Depth-Gauge
-
Spare part number: 2 600 460 050
Position: 871
Availability: 1
Price group: 27
-
Grommet Ø6,4-Ø7,2X76 MM
-
Spare part number: 2 600 703 017
Position: 6
Availability: 1
Price group: 13
-
Seal
-
Spare part number: 2 601 015 097
Position: 841
Availability: 1
Price group: 15
-
Cable Clip
-
Spare part number: 2 601 035 004
Position: 7
Availability: 1
Price group: 12
-
Reference Plate
-
Spare part number: 2 601 111 965
Position: 20
Availability: 1
Price group: 11
-
Air-Deflector Ring
-
Spare part number: 2 601 328 092
Position: 29
Availability: 1
Price group: 18
-
Belt holder clip
-
Spare part number: 2 601 329 127
Position: 70
Availability: 1
Price group: 16
-
Rubber Buffer
-
Spare part number: 2 602 391 004
Position: 31
Availability: 2
Price group: 12
-
Torx Oval-Head Screw 4X12
-
Spare part number: 2 603 490 021
Position: 19
Availability: 2
Price group: 10
-
Torx Oval-Head Screw 4X20
-
Spare part number: 2 603 490 023
Position: 38
Availability: 3
Price group: 10
-
Torx Oval-Head Screw 4X20
-
Spare part number: 2 603 490 023
Position: 38
Availability: 3
Price group: 10
-
Torx Oval-Head Screw 4X25
-
Spare part number: 2 603 490 024
Position: 26
Availability: 3
Price group: 11
-
Armature 230V
-
Spare part number: 2 604 011 941
Position: 803
Availability: 1
Price group: 41
-
Field 220-240V
-
Spare part number: 2 604 220 456
Position: 2
Availability: 1
Price group: 28
-
Carbon-Brush Set
-
Spare part number: 2 604 321 943
Position: 810
Availability: 1
Price group: 22
-
Carbon-Brush Set
-
Spare part number: 2 604 321 943
Position: 810
Availability: 1
Price group: 22
-
Motor Housing DARK BLUE
-
Spare part number: 2 605 108 083
Position: 1
Availability: 1
Price group: 32
-
Housing Cover DARK BLUE
-
Spare part number: 2 605 132 073
Position: 47
Availability: 1
Price group: 25
-
Switch Cover RED
-
Spare part number: 2 605 500 196
Position: 21
Availability: 1
Price group: 13
-
Brush Plate
-
Spare part number: 2 605 807 124
Position: 16
Availability: 1
Price group: 28
-
Gear Unit
-
Spare part number: 2 606 200 268
Position: 830
Availability: 1
Price group: 42
-
Hopper
-
Spare part number: 2 607 020 396
Position: 800
Availability: 1
Price group: 48
-
Switch
-
Spare part number: 2 607 200 638
Position: 4
Availability: 1
Price group: 36
-
Countersunk-Head Screw DIN 7991 M3X8-8.8
-
Spare part number: 2 910 541 050
Position: 22
Availability: 1
Price group: 10
-
Seal Ring
-
Spare part number: 3 600 290 502
Position: 870/78
Availability: 1
Price group: 15
-
Toolholder 1/4"
-
Spare part number: 3 603 008 500
Position: 887
Availability: 1
Price group: 26
-
1
Spare parts in cart
29 Parts found
Sort by
Description
Pos. 1 | Motor Housing DARK BLUE
2 605 108 083
-
Pos. 2 | Field 220-240V
2 604 220 456
-
Pos. 4 | Switch
2 607 200 638
-
Pos. 6 | Grommet Ø6,4-Ø7,2X76 MM
2 600 703 017
-
Pos. 7 | Cable Clip
2 601 035 004
-
Pos. 9 | Manufacturer's nameplate
1 601 11C 0VY
-
Pos. 12 | Suppression Filter
1 600 A02 K8Y
-
Pos. 16 | Brush Plate
2 605 807 124
-
Pos. 19 | Torx Oval-Head Screw 4X12
2 603 490 021
-
Pos. 20 | Reference Plate
2 601 111 965
-
Pos. 21 | Switch Cover RED
2 605 500 196
-
Pos. 22 | Countersunk-Head Screw DIN 7991 M3X8-8.8
2 910 541 050
-
Pos. 26 | Torx Oval-Head Screw 4X25
2 603 490 024
-
Pos. 29 | Air-Deflector Ring
2 601 328 092
-
Pos. 31 | Rubber Buffer
2 602 391 004
-
Pos. 38 | Torx Oval-Head Screw 4X20
2 603 490 023
-
Pos. 47 | Housing Cover DARK BLUE
2 605 132 073
-
Pos. 70 | Belt holder clip
2 601 329 127
-
Pos. 800 | Hopper
2 607 020 396
-
Pos. 803 | Armature 230V
2 604 011 941
-
Pos. 805 | Power supply cord EU 230V 4,15M 2 X 1,0MM H05 RN-F
1 607 000 386
-
Pos. 808 | Nameplate
1 601 11A 53H
-
Pos. 810 | Carbon-Brush Set
2 604 321 943
-
Pos. 830 | Gear Unit
2 606 200 268
-
Pos. 841 | Seal
2 601 015 097
-
Pos. 870 | Depth-Gauge
2 600 460 049
-
Pos. 870/78 | Seal Ring
3 600 290 502
-
Pos. 871 | Depth-Gauge
2 600 460 050
-
Pos. 887 | Toolholder 1/4"
3 603 008 500
-
