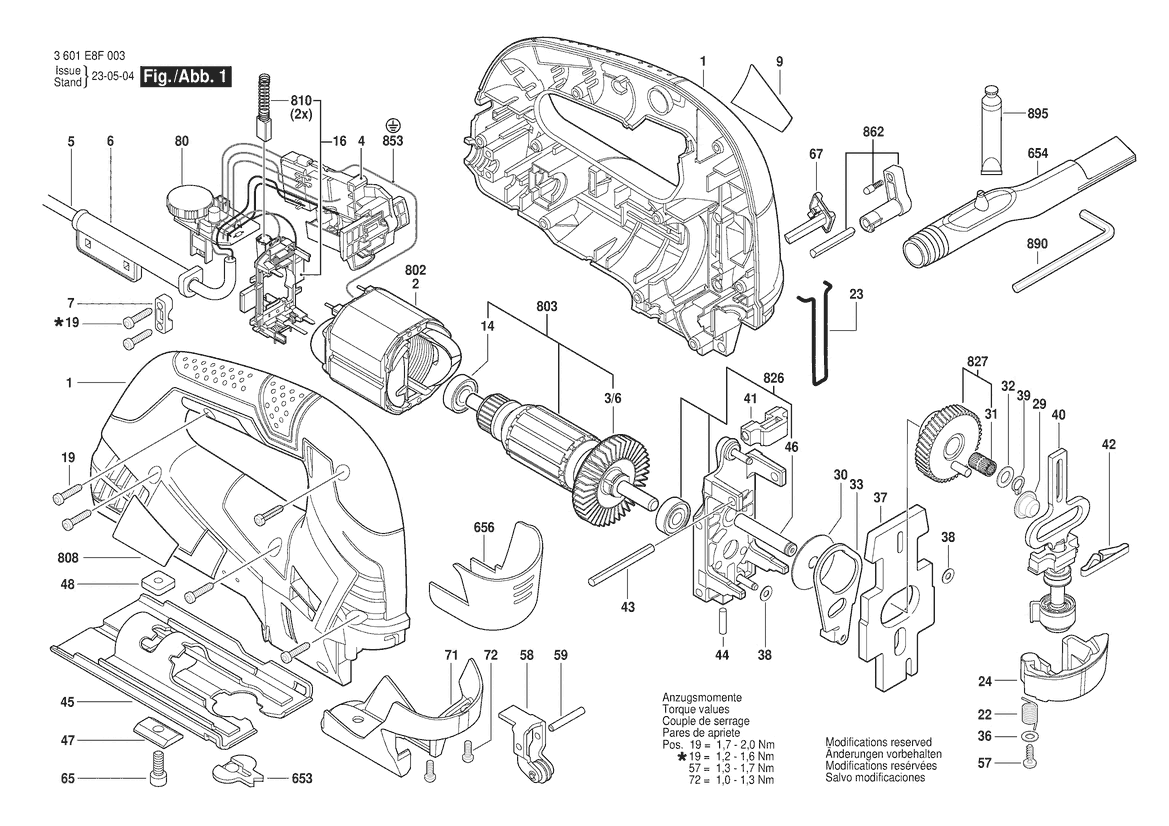

3 601 E8F 072
Retaining Washer
-
Spare part number: 1 600 A00 8C6
Position: 38
Availability: 2
Price group: 10
-
Retaining Washer
-
Spare part number: 1 600 A00 8C6
Position: 38
Availability: 2
Price group: 10
-
Lever Switch
-
Spare part number: 1 600 A00 D6B
Position: 24
Availability: 1
Price group: 11
-
Nameplate
-
Spare part number: 1 601 11A 647
Position: 808
Availability: 1
Price group: 13
-
Power supply cord GB 230V 2,65M 2X1 H05 RN-F
-
Spare part number: 1 604 460 700
Position: 5
Availability: 1
Price group: 24
-
Housing Section
-
Spare part number: 1 605 108 2C5
Position: 1
Availability: 1
Price group: 31
-
Housing Section
-
Spare part number: 1 605 108 2C5
Position: 1
Availability: 1
Price group: 31
-
Cover
-
Spare part number: 1 605 500 2CJ
Position: 71
Availability: 1
Price group: 21
-
Earth Conductor
-
Spare part number: 1 607 000 D5U
Position: 853
Availability: 1
Price group: -
-
Needle bearing
-
Spare part number: 1 617 S02 10P
Position: 29
Availability: 1
Price group: -
-
Manufacturer's nameplate GST 90
-
Spare part number: 1 618 B00 02K
Position: 9
Availability: 1
Price group: 13
-
Protecting Cover
-
Spare part number: 1 619 P07 128
Position: 23
Availability: 1
Price group: 11
-
Roller Lever
-
Spare part number: 1 619 P07 129
Position: 58
Availability: 1
Price group: 24
-
Counterweight
-
Spare part number: 1 619 P07 133
Position: 37
Availability: 1
Price group: 23
-
Fork Lever
-
Spare part number: 1 619 P07 137
Position: 33
Availability: 1
Price group: 16
-
Bearing bolt
-
Spare part number: 1 619 P07 143
Position: 44
Availability: 1
Price group: 10
-
Lifting Rod
-
Spare part number: 1 619 P07 147
Position: 40
Availability: 1
Price group: 36
-
Torsion Spring
-
Spare part number: 1 619 P07 152
Position: 22
Availability: 1
Price group: 10
-
Change-Over Switch
-
Spare part number: 1 619 P07 157
Position: 59
Availability: 1
Price group: 12
-
Switch Slide
-
Spare part number: 1 619 P07 158
Position: 67
Availability: 1
Price group: 14
-
Base Plate
-
Spare part number: 1 619 P07 162
Position: 45
Availability: 1
Price group: 23
-
Covering hood
-
Spare part number: 1 619 P07 166
Position: 656
Availability: 1
Price group: 13
-
Suction Nozzle
-
Spare part number: 1 619 P07 167
Position: 654
Availability: 1
Price group: 19
-
Speed governor
-
Spare part number: 1 619 P07 309
Position: 80
Availability: 1
Price group: 30
-
Shim
-
Spare part number: 1 619 P07 576
Position: 30
Availability: 1
Price group: 12
-
Bearing Bracket
-
Spare part number: 1 619 P08 888
Position: 826
Availability: 1
Price group: 29
-
Eccentric Cog Wheel
-
Spare part number: 1 619 P08 889
Position: 827
Availability: 1
Price group: 29
-
Change-Over Switch
-
Spare part number: 1 619 P08 890
Position: 862
Availability: 1
Price group: 15
-
Plain bearing
-
Spare part number: 1 619 P08 903
Position: 41
Availability: 1
Price group: 12
-
Field 220V
-
Spare part number: 1 619 P09 155
Position: 802
Availability: 1
Price group: 28
-
Armature 220V
-
Spare part number: 1 619 P09 157
Position: 803
Availability: 1
Price group: 35
-
Coiled Spring
-
Spare part number: 1 619 P11 327
Position: 42
Availability: 1
Price group: 10
-
fixing plate
-
Spare part number: 2 600 040 004
Position: 48
Availability: 1
Price group: 14
-
Shim 0,5 MM
-
Spare part number: 2 600 100 588
Position: 36
Availability: 1
Price group: 11
-
Shim 0,5 MM
-
Spare part number: 2 600 101 077
Position: 32
Availability: 1
Price group: 11
-
Grommet Ø7,6-Ø8,2X95 MM
-
Spare part number: 2 600 703 028
Position: 6
Availability: 1
Price group: 11
-
groove ball bearing 8X22X7
-
Spare part number: 2 600 905 110
Position: 14
Availability: 1
Price group: 18
-
Needle-Roller Assembly
-
Spare part number: 2 600 913 040
Position: 31
Availability: 1
Price group: 18
-
Splintering Protector
-
Spare part number: 2 601 016 065
Position: 653
Availability: 1
Price group: 17
-
Profile Beading
-
Spare part number: 2 601 030 019
Position: 47
Availability: 1
Price group: 13
-
Cable Clip
-
Spare part number: 2 601 035 001
Position: 7
Availability: 1
Price group: 11
-
Bearing bolt
-
Spare part number: 2 603 105 080
Position: 46
Availability: 1
Price group: 13
-
Needle Roller
-
Spare part number: 2 603 201 089
Position: 43
Availability: 1
Price group: 18
-
Cross Recessed-Head Screw DIN 7981-ST3,5X9,5-F
-
Spare part number: 2 603 435 015
Position: 72
Availability: 2
Price group: 12
-
Torx Oval-Head Screw 4X12
-
Spare part number: 2 603 490 021
Position: 57
Availability: 1
Price group: 10
-
Screw 4X16
-
Spare part number: 2 603 490 022
Position: 19
Availability: 1
Price group: 10
-
Screw 4X16
-
Spare part number: 2 603 490 022
Position: 19
Availability: 1
Price group: 10
-
Carbon-Brush Set
-
Spare part number: 2 604 321 925
Position: 810
Availability: 1
Price group: 21
-
Fan
-
Spare part number: 2 606 610 123
Position: 3/6
Availability: 1
Price group: 13
-
Switch
-
Spare part number: 2 607 200 669
Position: 4
Availability: 1
Price group: 28
-
Brush Plate
-
Spare part number: 2 609 001 621
Position: 16
Availability: 1
Price group: 25
-
Hexagon Socket Screw Key 5 MM
-
Spare part number: 2 610 364 015
Position: 890
Availability: 1
Price group: 15
-
Hex Socket Head Cap Screw DIN 912-M6X16-8.8
-
Spare part number: 2 910 141 197
Position: 65
Availability: 1
Price group: 10
-
Spring retaining ring 8X0,8 N31A MR7
-
Spare part number: 2 916 640 905
Position: 39
Availability: 1
Price group: 11
-
Grease Tube ALBIDA
-
Spare part number: 3 605 430 003
Position: 895
Availability: 1
Price group: 32
-
1
Spare parts in cart
52 Parts found
Sort by
Description
Pos. 1 | Housing Section
1 605 108 2C5
-
Pos. 3/6 | Fan
2 606 610 123
-
Pos. 4 | Switch
2 607 200 669
-
Pos. 5 | Power supply cord GB 230V 2,65M 2X1 H05 RN-F
1 604 460 700
-
Pos. 6 | Grommet Ø7,6-Ø8,2X95 MM
2 600 703 028
-
Pos. 7 | Cable Clip
2 601 035 001
-
Pos. 9 | Manufacturer's nameplate GST 90
1 618 B00 02K
-
Pos. 14 | groove ball bearing 8X22X7
2 600 905 110
-
Pos. 16 | Brush Plate
2 609 001 621
-
Pos. 19 | Screw 4X16
2 603 490 022
-
Pos. 22 | Torsion Spring
1 619 P07 152
-
Pos. 23 | Protecting Cover
1 619 P07 128
-
Pos. 24 | Lever Switch
1 600 A00 D6B
-
Pos. 29 | Needle bearing
1 617 S02 10P
-
Pos. 30 | Shim
1 619 P07 576
-
Pos. 31 | Needle-Roller Assembly
2 600 913 040
-
Pos. 32 | Shim 0,5 MM
2 600 101 077
-
Pos. 33 | Fork Lever
1 619 P07 137
-
Pos. 36 | Shim 0,5 MM
2 600 100 588
-
Pos. 37 | Counterweight
1 619 P07 133
-
Pos. 38 | Retaining Washer
1 600 A00 8C6
-
Pos. 39 | Spring retaining ring 8X0,8 N31A MR7
2 916 640 905
-
Pos. 40 | Lifting Rod
1 619 P07 147
-
Pos. 41 | Plain bearing
1 619 P08 903
-
Pos. 42 | Coiled Spring
1 619 P11 327
-
Pos. 43 | Needle Roller
2 603 201 089
-
Pos. 44 | Bearing bolt
1 619 P07 143
-
Pos. 45 | Base Plate
1 619 P07 162
-
Pos. 46 | Bearing bolt
2 603 105 080
-
Pos. 47 | Profile Beading
2 601 030 019
-
Pos. 48 | fixing plate
2 600 040 004
-
Pos. 57 | Torx Oval-Head Screw 4X12
2 603 490 021
-
Pos. 58 | Roller Lever
1 619 P07 129
-
Pos. 59 | Change-Over Switch
1 619 P07 157
-
Pos. 65 | Hex Socket Head Cap Screw DIN 912-M6X16-8.8
2 910 141 197
-
Pos. 67 | Switch Slide
1 619 P07 158
-
Pos. 71 | Cover
1 605 500 2CJ
-
Pos. 72 | Cross Recessed-Head Screw DIN 7981-ST3,5X9,5-F
2 603 435 015
-
Pos. 80 | Speed governor
1 619 P07 309
-
Pos. 653 | Splintering Protector
2 601 016 065
-
Pos. 654 | Suction Nozzle
1 619 P07 167
-
Pos. 656 | Covering hood
1 619 P07 166
-
Pos. 802 | Field 220V
1 619 P09 155
-
Pos. 803 | Armature 220V
1 619 P09 157
-
Pos. 808 | Nameplate
1 601 11A 647
-
Pos. 810 | Carbon-Brush Set
2 604 321 925
-
Pos. 826 | Bearing Bracket
1 619 P08 888
-
Pos. 827 | Eccentric Cog Wheel
1 619 P08 889
-
Pos. 853 | Earth Conductor
1 607 000 D5U
-
Pos. 862 | Change-Over Switch
1 619 P08 890
-
Pos. 890 | Hexagon Socket Screw Key 5 MM
2 610 364 015
-
Pos. 895 | Grease Tube ALBIDA
3 605 430 003
-
