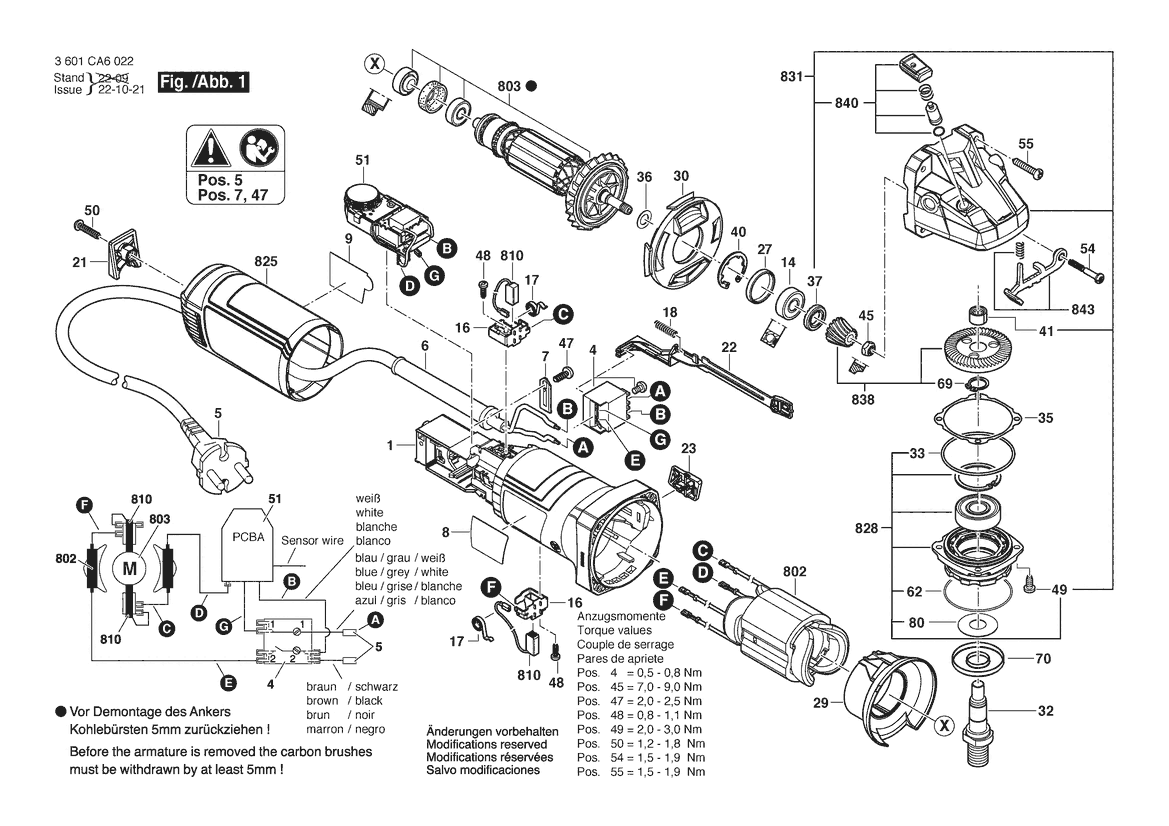

3 601 CA6 022
Retaining clip
-
Spare part number: 1 600 119 011
Position: 40
Availability: 1
Price group: 12
-
-
Please click for futher details
-
Please click for futher details
Rubber Ring
-
Spare part number: 1 600 206 025
Position: 27
Availability: 1
Price group: 12
-
Rotary shaft lip seal
-
Spare part number: 1 600 290 016
Position: 37
Availability: 1
Price group: 13
-
Grommet
-
Spare part number: 1 600 703 039
Position: 6
Availability: 1
Price group: 13
-
Needle bearing Ø8XØ12X8 MM
-
Spare part number: 1 600 910 018
Position: 41
Availability: 1
Price group: 17
-
Brush Holder
-
Spare part number: 1 600 A00 RG1
Position: 16
Availability: 2
Price group: 12
-
Brush Holder
-
Spare part number: 1 600 A00 RG1
Position: 16
Availability: 2
Price group: 12
-
Fastening Clamp
-
Spare part number: 1 601 302 017
Position: 7
Availability: 1
Price group: 10
-
Torx Oval-Head Screw 4X30
-
Spare part number: 1 603 414 026
Position: 54
Availability: 1
Price group: 10
-
Thread-forming tap. Screw M4X16-ST W/ PRECOTE 85-3
-
Spare part number: 1 603 435 08X
Position: 49
Availability: 4
Price group: 10
-
Spiral Spring
-
Spare part number: 1 604 652 013
Position: 17
Availability: 2
Price group: 11
-
Spiral Spring
-
Spare part number: 1 604 652 013
Position: 17
Availability: 2
Price group: 11
-
Power supply cord EU 230V 4,15M 2 X 1,0MM H05 RN-F
-
Spare part number: 1 607 000 386
Position: 5
Availability: 1
Price group: 29
-
Catch Lever
-
Spare part number: 1 607 000 742
Position: 843
Availability: 1
Price group: 20
-
Switch
-
Spare part number: 1 607 200 31S
Position: 4
Availability: 1
Price group: 19
-
Speed governor GWS1200,220~240V
-
Spare part number: 1 607 233 5NX
Position: 51
Availability: 1
Price group: 35
-
Torx Oval-Head Screw 4X20
-
Spare part number: 1 619 P00 105
Position: 50
Availability: 1
Price group: 11
-
Torx Oval-Head Screw 3X10
-
Spare part number: 1 619 P00 220
Position: 48
Availability: 2
Price group: 10
-
Torx Oval-Head Screw 3X10
-
Spare part number: 1 619 P00 220
Position: 48
Availability: 2
Price group: 10
-
Washer
-
Spare part number: 1 619 P00 987
Position: 36
Availability: 1
Price group: 10
-
Torx Oval-Head Screw 4X25
-
Spare part number: 1 619 P01 066
Position: 55
Availability: 3
Price group: 10
-
Cover Disc
-
Spare part number: 1 619 P09 390
Position: 80
Availability: 1
Price group: 12
-
groove ball bearing
-
Spare part number: 1 619 P09 955
Position: 14
Availability: 1
Price group: 18
-
Compression Spring
-
Spare part number: 1 619 P11 487
Position: 18
Availability: 1
Price group: 10
-
O-Ring
-
Spare part number: 1 619 P14 427
Position: 33
Availability: 1
Price group: 10
-
Grinding Spindle M14
-
Spare part number: 1 619 P15 210
Position: 32
Availability: 1
Price group: 17
-
Hex Nut
-
Spare part number: 1 619 P16 897
Position: 45
Availability: 1
Price group: 10
-
Motor Housing
-
Spare part number: 1 619 P20 936
Position: 1
Availability: 1
Price group: 20
-
Air-Deflector Ring
-
Spare part number: 1 619 P20 938
Position: 29
Availability: 1
Price group: 11
-
Air Distributor
-
Spare part number: 1 619 P20 939
Position: 30
Availability: 1
Price group: 11
-
Adjusting Slide
-
Spare part number: 1 619 P20 940
Position: 22
Availability: 1
Price group: 11
-
Manufacturer's nameplate GWS 12-125 S
-
Spare part number: 1 619 P20 943
Position: 9
Availability: 1
Price group: 13
-
Cap
-
Spare part number: 1 619 P20 983
Position: 21
Availability: 1
Price group: 11
-
Switch Button
-
Spare part number: 1 619 P21 162
Position: 23
Availability: 1
Price group: 10
-
Nameplate
-
Spare part number: 1 619 P21 163
Position: 8
Availability: 1
Price group: 13
-
Field
-
Spare part number: 1 619 P21 170
Position: 802
Availability: 1
Price group: 31
-
Armature
-
Spare part number: 1 619 P21 171
Position: 803
Availability: 1
Price group: 35
-
Carbon-Brush Set
-
Spare part number: 1 619 P21 172
Position: 810
Availability: 1
Price group: 21
-
Carbon-Brush Set
-
Spare part number: 1 619 P21 172
Position: 810
Availability: 1
Price group: 21
-
Housing Cover
-
Spare part number: 1 619 P21 173
Position: 825
Availability: 1
Price group: 18
-
Bearing Flange
-
Spare part number: 1 619 P21 174
Position: 828
Availability: 1
Price group: 26
-
Gear Housing
-
Spare part number: 1 619 P21 176
Position: 831
Availability: 1
Price group: 27
-
Push-Button
-
Spare part number: 1 619 P21 177
Position: 840
Availability: 1
Price group: 13
-
Bevel Gear Set
-
Spare part number: 1 619 P21 178
Position: 838
Availability: 1
Price group: 26
-
Special Screw
-
Spare part number: 2 609 110 052
Position: 47
Availability: 1
Price group: 10
-
Retaining ring
-
Spare part number: 2 916 540 007
Position: 69
Availability: 1
Price group: 10
-
Cover Disc
-
Spare part number: 3 600 150 038
Position: 70
Availability: 1
Price group: 12
-
O-Ring 47,0X1,5 MM
-
Spare part number: 3 600 210 109
Position: 62
Availability: 1
Price group: 12
-
Protective Cover
-
Spare part number: 1 600 A02 5XR
Position: 651
Availability: 1
Price group: 22
-

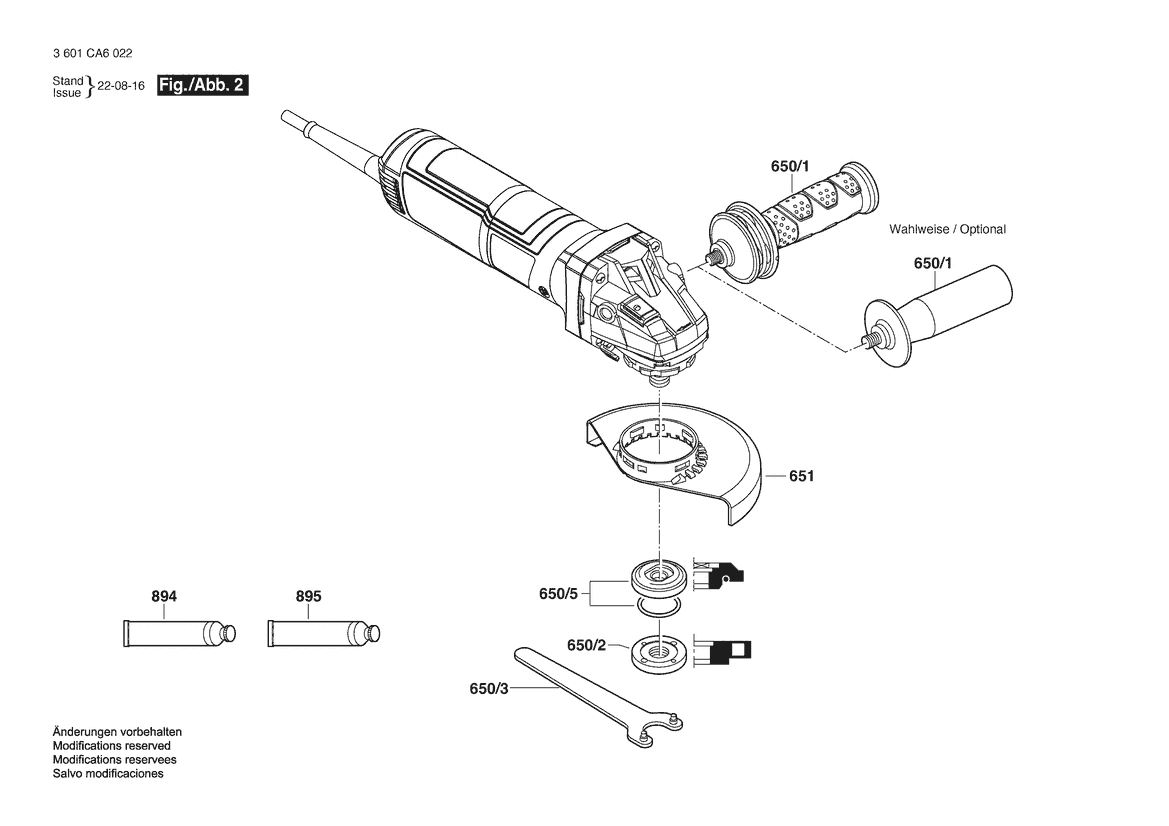

Auxiliary Handle
-
Spare part number: 1 602 025 0A0
Position: 650/1
Availability: 1
Price group: 23
-
Auxiliary Handle
-
Spare part number: 1 602 025 0A0
Position: 650/1
Availability: 1
Price group: 23
-
Round Nut M14
-
Spare part number: 1 603 345 043
Position: 650/2
Availability: 1
Price group: 21
-
Grease Tube 225 ML
-
Spare part number: 1 605 430 003
Position: 895
Availability: 1
Price group: 34
-
Pin-Type Face-Wrench
-
Spare part number: 1 607 950 052
Position: 650/3
Availability: 1
Price group: 15
-
Grease Tube 225 ML
-
Spare part number: 1 615 430 020
Position: 894
Availability: 1
Price group: 29
-
Gear Housing
-
Spare part number: 1 619 P21 176
Position: 831
Availability: 1
Price group: 27
-
Clamping Flange Ø22,3XØ42 MM
-
Spare part number: 2 605 703 014
Position: 650/5
Availability: 1
Price group: 20
-
1
2
Spare parts in cart
53 Parts found
Sort by
Description
Pos. 1 | Motor Housing
1 619 P20 936
-
Pos. 4 | Switch
1 607 200 31S
-
Pos. 5 | Power supply cord EU 230V 4,15M 2 X 1,0MM H05 RN-F
1 607 000 386
-
Pos. 6 | Grommet
1 600 703 039
-
Pos. 7 | Fastening Clamp
1 601 302 017
-
Pos. 8 | Nameplate
1 619 P21 163
-
Pos. 9 | Manufacturer's nameplate GWS 12-125 S
1 619 P20 943
-
Pos. 14 | groove ball bearing
1 619 P09 955
-
Pos. 16 | Brush Holder
1 600 A00 RG1
-
Pos. 17 | Spiral Spring
1 604 652 013
-
Pos. 18 | Compression Spring
1 619 P11 487
-
Pos. 21 | Cap
1 619 P20 983
-
Pos. 22 | Adjusting Slide
1 619 P20 940
-
Pos. 23 | Switch Button
1 619 P21 162
-
Pos. 27 | Rubber Ring
1 600 206 025
-
Pos. 29 | Air-Deflector Ring
1 619 P20 938
-
Pos. 30 | Air Distributor
1 619 P20 939
-
Pos. 32 | Grinding Spindle M14
1 619 P15 210
-
Pos. 33 | O-Ring
1 619 P14 427
-
Pos. 35 | Shim 0,1 MM THICK
1 600 136 013
-
Pos. 35 | Shim 0,2 MM THICK
1 600 136 014
-
Pos. 36 | Washer
1 619 P00 987
-
Pos. 37 | Rotary shaft lip seal
1 600 290 016
-
Pos. 40 | Retaining clip
1 600 119 011
-
Pos. 41 | Needle bearing Ø8XØ12X8 MM
1 600 910 018
-
Pos. 45 | Hex Nut
1 619 P16 897
-
Pos. 47 | Special Screw
2 609 110 052
-
Pos. 48 | Torx Oval-Head Screw 3X10
1 619 P00 220
-
Pos. 49 | Thread-forming tap. Screw M4X16-ST W/ PRECOTE 85-3
1 603 435 08X
-
Pos. 50 | Torx Oval-Head Screw 4X20
1 619 P00 105
-
Pos. 51 | Speed governor GWS1200,220~240V
1 607 233 5NX
-
Pos. 54 | Torx Oval-Head Screw 4X30
1 603 414 026
-
Pos. 55 | Torx Oval-Head Screw 4X25
1 619 P01 066
-
Pos. 62 | O-Ring 47,0X1,5 MM
3 600 210 109
-
Pos. 69 | Retaining ring
2 916 540 007
-
Pos. 70 | Cover Disc
3 600 150 038
-
Pos. 80 | Cover Disc
1 619 P09 390
-
Pos. 650/1 | Auxiliary Handle
1 602 025 0A0
-
Pos. 650/2 | Round Nut M14
1 603 345 043
-
Pos. 650/3 | Pin-Type Face-Wrench
1 607 950 052
-
Pos. 650/5 | Clamping Flange Ø22,3XØ42 MM
2 605 703 014
-
Pos. 651 | Protective Cover
1 600 A02 5XR
-
Pos. 802 | Field
1 619 P21 170
-
Pos. 803 | Armature
1 619 P21 171
-
Pos. 810 | Carbon-Brush Set
1 619 P21 172
-
Pos. 825 | Housing Cover
1 619 P21 173
-
Pos. 828 | Bearing Flange
1 619 P21 174
-
Pos. 831 | Gear Housing
1 619 P21 176
-
Pos. 838 | Bevel Gear Set
1 619 P21 178
-
Pos. 840 | Push-Button
1 619 P21 177
-
Pos. 843 | Catch Lever
1 607 000 742
-
Pos. 894 | Grease Tube 225 ML
1 615 430 020
-
Pos. 895 | Grease Tube 225 ML
1 605 430 003
-
