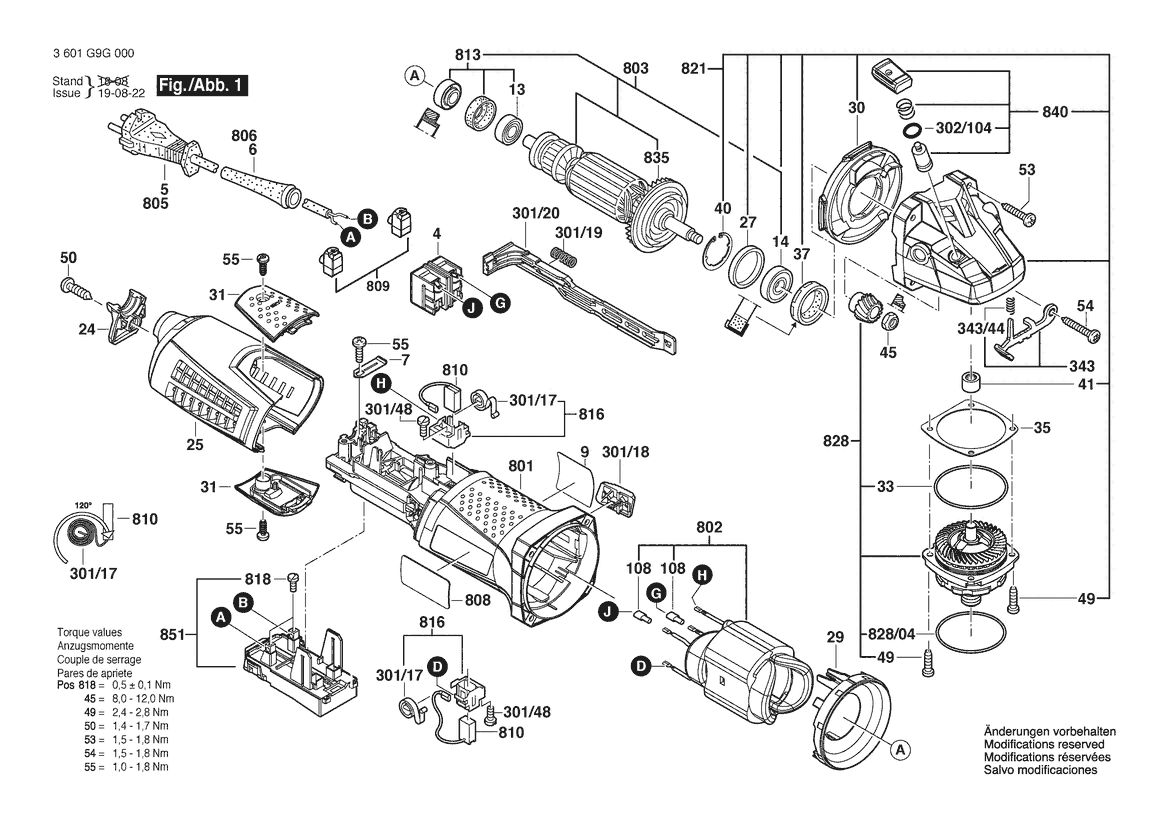

3 601 G9G 000
Retaining clip
-
Spare part number: 1 600 119 011
Position: 40
Availability: 1
Price group: 12
-
-
Please click for futher details
-
Please click for futher details
-
Please click for futher details
-
Please click for futher details
Plain bearing
-
Spare part number: 1 600 200 029
Position: 41
Availability: 1
Price group: 16
-
Rubber Ring
-
Spare part number: 1 600 206 025
Position: 27
Availability: 1
Price group: 12
-
O-Ring 46,0X1,1 MM
-
Spare part number: 1 600 210 035
Position: 33
Availability: 1
Price group: 11
-
O-Ring 4,5X1,0 MM BLUE
-
Spare part number: 1 600 210 044
Position: 302/104
Availability: 1
Price group: 10
-
Rotary shaft lip seal
-
Spare part number: 1 600 290 016
Position: 37
Availability: 1
Price group: 13
-
Air-Deflector Ring
-
Spare part number: 1 600 591 047
Position: 29
Availability: 1
Price group: 12
-
Air Distributor
-
Spare part number: 1 600 591 048
Position: 30
Availability: 1
Price group: 13
-
Grommet
-
Spare part number: 1 600 703 043
Position: 6
Availability: 1
Price group: 13
-
Insulating Part
-
Spare part number: 1 600 712 030
Position: 108
Availability: 2
Price group: 11
-
Insulating Part
-
Spare part number: 1 600 712 030
Position: 108
Availability: 2
Price group: 11
-
groove ball bearing 8X22X7
-
Spare part number: 1 600 905 032
Position: 14
Availability: 1
Price group: 18
-
Brush-Cover
-
Spare part number: 1 600 A01 M0M
Position: 31
Availability: 2
Price group: 15
-
Brush-Cover
-
Spare part number: 1 600 A01 M0M
Position: 31
Availability: 2
Price group: 15
-
Nameplate
-
Spare part number: 1 601 11A 57G
Position: 808
Availability: 1
Price group: 13
-
Manufacturer's nameplate
-
Spare part number: 1 601 11C 1CH
Position: 9
Availability: 1
Price group: 13
-
Fastening Clamp
-
Spare part number: 1 601 302 017
Position: 7
Availability: 1
Price group: 10
-
Switch Handle
-
Spare part number: 1 602 026 091
Position: 301/18
Availability: 1
Price group: 10
-
Adjusting Slide
-
Spare part number: 1 602 319 026
Position: 301/20
Availability: 1
Price group: 11
-
Hex Nut M7, SW10
-
Spare part number: 1 603 300 016
Position: 45
Availability: 1
Price group: 11
-
Torx Oval-Head Screw 4X30
-
Spare part number: 1 603 414 026
Position: 54
Availability: 1
Price group: 10
-
Torx Oval-Head Screw
-
Spare part number: 1 603 435 078
Position: 53
Availability: 3
Price group: 10
-
Thread-forming tap. Screw M4X16-ST W/ PRECOTE 85-3
-
Spare part number: 1 603 435 08X
Position: 49
Availability: 4
Price group: 10
-
Thread-forming tap. Screw M4X16-ST W/ PRECOTE 85-3
-
Spare part number: 1 603 435 08X
Position: 49
Availability: 4
Price group: 10
-
Field assembly 220-230V
-
Spare part number: 1 604 220 532
Position: 802
Availability: 1
Price group: 31
-
Compression Spring
-
Spare part number: 1 604 611 031
Position: 301/19
Availability: 1
Price group: 14
-
Compression Spring
-
Spare part number: 1 604 611 042
Position: 343/44
Availability: 1
Price group: 11
-
Spiral Spring
-
Spare part number: 1 604 652 021
Position: 301/17
Availability: 2
Price group: 10
-
Spiral Spring
-
Spare part number: 1 604 652 021
Position: 301/17
Availability: 2
Price group: 10
-
Spiral Spring
-
Spare part number: 1 604 652 021
Position: 301/17
Availability: 2
Price group: 10
-
Cover
-
Spare part number: 1 605 500 274
Position: 24
Availability: 1
Price group: 14
-
Housing Cover
-
Spare part number: 1 605 500 276
Position: 25
Availability: 1
Price group: 21
-
Fan
-
Spare part number: 1 606 610 132
Position: 835
Availability: 1
Price group: 12
-
Power supply cord EU 4,15M 2 X 1,0MM H07 RN-F
-
Spare part number: 1 607 000 392
Position: 805
Availability: 1
Price group: 29
-
Catch Lever
-
Spare part number: 1 607 000 742
Position: 343
Availability: 1
Price group: 20
-
Motor Housing
-
Spare part number: 1 607 000 CY2
Position: 801
Availability: 1
Price group: 28
-
Bearing Flange
-
Spare part number: 1 607 000 D62
Position: 828
Availability: 1
Price group: 33
-
Seal
-
Spare part number: 1 607 000 D9C
Position: 809
Availability: 1
Price group: 11
-
Speed governor
-
Spare part number: 1 607 000 DA3
Position: 851
Availability: 1
Price group: 37
-
Armature With Fan 230V
-
Spare part number: 1 607 000 V35
Position: 803
Availability: 1
Price group: 40
-
Carbon-Brush Set
-
Spare part number: 1 607 000 V37
Position: 810
Availability: 1
Price group: 26
-
Carbon-Brush Set
-
Spare part number: 1 607 000 V37
Position: 810
Availability: 1
Price group: 26
-
Carbon-Brush Set
-
Spare part number: 1 607 000 V37
Position: 810
Availability: 1
Price group: 26
-
groove ball bearing
-
Spare part number: 1 607 000 V38
Position: 813
Availability: 1
Price group: 20
-
Gear Housing
-
Spare part number: 1 607 000 V40
Position: 821
Availability: 1
Price group: 31
-
Push-Button
-
Spare part number: 1 607 000 V41
Position: 840
Availability: 1
Price group: 16
-
Pan head screw
-
Spare part number: 1 607 000 V42
Position: 818
Availability: 1
Price group: 10
-
Brush Holder
-
Spare part number: 1 607 000 V43
Position: 816
Availability: 2
Price group: 15
-
Brush Holder
-
Spare part number: 1 607 000 V43
Position: 816
Availability: 2
Price group: 15
-
Switch
-
Spare part number: 1 607 200 35A
Position: 4
Availability: 1
Price group: 23
-
Lens Head Screw 3X10 ST
-
Spare part number: 1 613 435 034
Position: 301/48
Availability: 2
Price group: 10
-
Lens Head Screw 3X10 ST
-
Spare part number: 1 613 435 034
Position: 301/48
Availability: 2
Price group: 10
-
Ball Bearing 7X19X6
-
Spare part number: 2 600 905 032
Position: 13
Availability: 1
Price group: 17
-
Torx Oval-Head Screw 4X12
-
Spare part number: 2 603 490 021
Position: 55
Availability: 3
Price group: 10
-
Torx Oval-Head Screw 4X12
-
Spare part number: 2 603 490 021
Position: 55
Availability: 3
Price group: 10
-
Torx Oval-Head Screw 4X12
-
Spare part number: 2 603 490 021
Position: 55
Availability: 3
Price group: 10
-
Torx Oval-Head Screw 4X20
-
Spare part number: 2 603 490 023
Position: 50
Availability: 1
Price group: 10
-
O-Ring 47,0X1,5 MM
-
Spare part number: 3 600 210 109
Position: 828/04
Availability: 1
Price group: 12
-
O-Ring 20,35X1,78 MM
-
Spare part number: 1 600 210 039
Position: 650/5/2
Availability: 1
Price group: 12
-
Fast Locking Flange
-
Spare part number: 1 600 A01 6PP
Position: 896
Availability: 1
Price group: 36
-
Protective Cover
-
Spare part number: 1 600 A02 5XR
Position: 651
Availability: 1
Price group: 22
-
Fastening Clamp
-
Spare part number: 1 601 302 017
Position: 7
Availability: 1
Price group: 10
-
Auxiliary Handle
-
Spare part number: 1 602 025 09T
Position: 891
Availability: 1
Price group: 15
-
Auxiliary Handle
-
Spare part number: 1 602 025 0A0
Position: 650/1
Availability: 1
Price group: 23
-
Round Nut M14
-
Spare part number: 1 603 345 043
Position: 650/2
Availability: 1
Price group: 21
-
Speed governor
-
Spare part number: 1 607 000 DA3
Position: 851
Availability: 1
Price group: 37
-
Switch
-
Spare part number: 1 607 200 35A
Position: 4
Availability: 1
Price group: 23
-
Pin-Type Face-Wrench
-
Spare part number: 1 607 950 052
Position: 650/3
Availability: 1
Price group: 15
-
Grease Tube 225 ML
-
Spare part number: 1 615 430 017
Position: 892
Availability: 1
Price group: 33
-
Grease Tube 225 ML
-
Spare part number: 1 615 430 020
Position: 893
Availability: 1
Price group: 29
-
Clamping Flange Ø22,3XØ42 MM
-
Spare part number: 2 605 703 014
Position: 650/5
Availability: 1
Price group: 20
-
1
2
Spare parts in cart
61 Parts found
Sort by
Description
Pos. 4 | Switch
1 607 200 35A
-
Pos. 6 | Grommet
1 600 703 043
-
Pos. 7 | Fastening Clamp
1 601 302 017
-
Pos. 9 | Manufacturer's nameplate
1 601 11C 1CH
-
Pos. 13 | Ball Bearing 7X19X6
2 600 905 032
-
Pos. 14 | groove ball bearing 8X22X7
1 600 905 032
-
Pos. 24 | Cover
1 605 500 274
-
Pos. 25 | Housing Cover
1 605 500 276
-
Pos. 27 | Rubber Ring
1 600 206 025
-
Pos. 29 | Air-Deflector Ring
1 600 591 047
-
Pos. 30 | Air Distributor
1 600 591 048
-
Pos. 31 | Brush-Cover
1 600 A01 M0M
-
Pos. 33 | O-Ring 46,0X1,1 MM
1 600 210 035
-
Pos. 35 | Shim 0,1 MM THICK
1 600 136 013
-
Pos. 35 | Shim 0,2 MM THICK
1 600 136 014
-
Pos. 35 | Shim 0,3 MM THICK
1 600 136 015
-
Pos. 35 | Shim 0,15 MM THICK
1 600 136 020
-
Pos. 37 | Rotary shaft lip seal
1 600 290 016
-
Pos. 40 | Retaining clip
1 600 119 011
-
Pos. 41 | Plain bearing
1 600 200 029
-
Pos. 45 | Hex Nut M7, SW10
1 603 300 016
-
Pos. 49 | Thread-forming tap. Screw M4X16-ST W/ PRECOTE 85-3
1 603 435 08X
-
Pos. 50 | Torx Oval-Head Screw 4X20
2 603 490 023
-
Pos. 53 | Torx Oval-Head Screw
1 603 435 078
-
Pos. 54 | Torx Oval-Head Screw 4X30
1 603 414 026
-
Pos. 55 | Torx Oval-Head Screw 4X12
2 603 490 021
-
Pos. 108 | Insulating Part
1 600 712 030
-
Pos. 301/17 | Spiral Spring
1 604 652 021
-
Pos. 301/18 | Switch Handle
1 602 026 091
-
Pos. 301/19 | Compression Spring
1 604 611 031
-
Pos. 301/20 | Adjusting Slide
1 602 319 026
-
Pos. 301/48 | Lens Head Screw 3X10 ST
1 613 435 034
-
Pos. 302/104 | O-Ring 4,5X1,0 MM BLUE
1 600 210 044
-
Pos. 343 | Catch Lever
1 607 000 742
-
Pos. 343/44 | Compression Spring
1 604 611 042
-
Pos. 650/1 | Auxiliary Handle
1 602 025 0A0
-
Pos. 650/2 | Round Nut M14
1 603 345 043
-
Pos. 650/3 | Pin-Type Face-Wrench
1 607 950 052
-
Pos. 650/5/2 | O-Ring 20,35X1,78 MM
1 600 210 039
-
Pos. 650/5 | Clamping Flange Ø22,3XØ42 MM
2 605 703 014
-
Pos. 651 | Protective Cover
1 600 A02 5XR
-
Pos. 801 | Motor Housing
1 607 000 CY2
-
Pos. 802 | Field assembly 220-230V
1 604 220 532
-
Pos. 803 | Armature With Fan 230V
1 607 000 V35
-
Pos. 805 | Power supply cord EU 4,15M 2 X 1,0MM H07 RN-F
1 607 000 392
-
Pos. 808 | Nameplate
1 601 11A 57G
-
Pos. 809 | Seal
1 607 000 D9C
-
Pos. 810 | Carbon-Brush Set
1 607 000 V37
-
Pos. 813 | groove ball bearing
1 607 000 V38
-
Pos. 816 | Brush Holder
1 607 000 V43
-
Pos. 818 | Pan head screw
1 607 000 V42
-
Pos. 821 | Gear Housing
1 607 000 V40
-
Pos. 828 | Bearing Flange
1 607 000 D62
-
Pos. 828/04 | O-Ring 47,0X1,5 MM
3 600 210 109
-
Pos. 835 | Fan
1 606 610 132
-
Pos. 840 | Push-Button
1 607 000 V41
-
Pos. 851 | Speed governor
1 607 000 DA3
-
Pos. 891 | Auxiliary Handle
1 602 025 09T
-
Pos. 892 | Grease Tube 225 ML
1 615 430 017
-
Pos. 893 | Grease Tube 225 ML
1 615 430 020
-
Pos. 896 | Fast Locking Flange
1 600 A01 6PP
-
