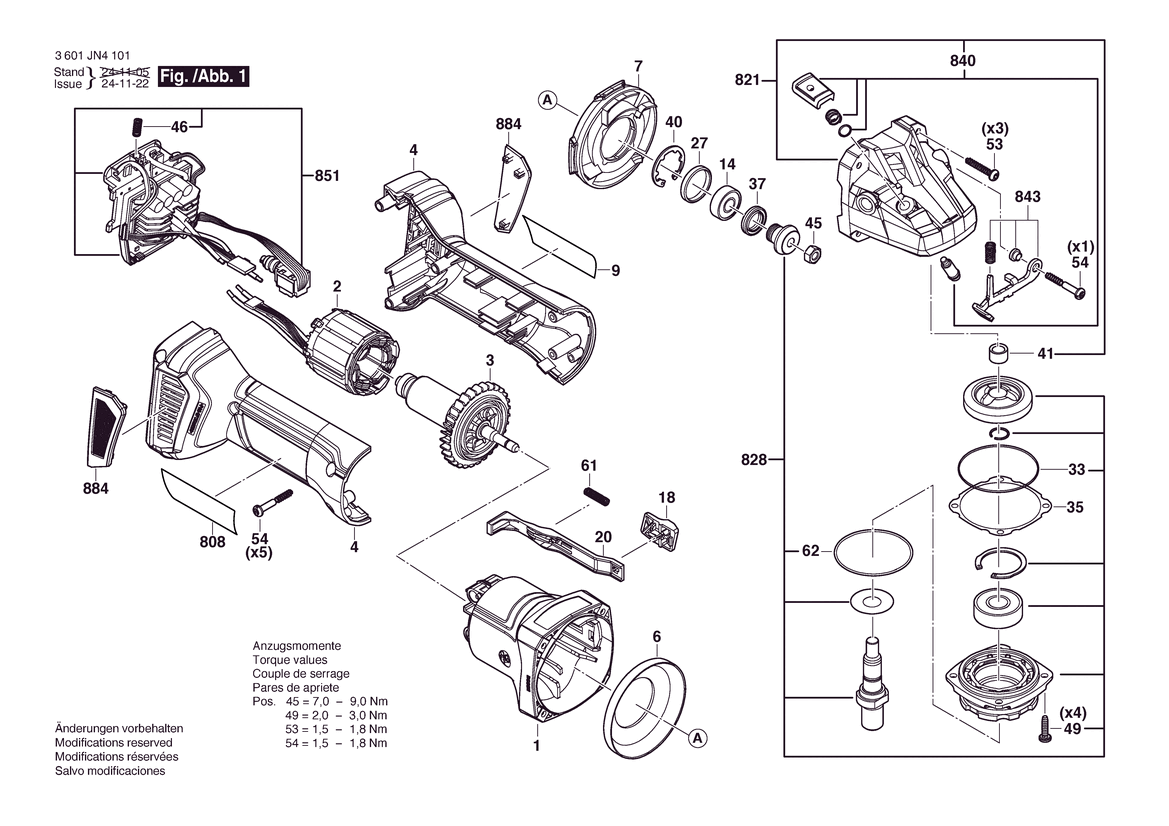

3 601 JN4 101
Retaining clip
-
Spare part number: 1 600 119 011
Position: 40
Availability: 1
Price group: 12
-
Shim 0,2 MM THICK
-
Spare part number: 1 600 136 014
Position: 35
Availability: 1
Price group: 13
-
Plain bearing
-
Spare part number: 1 600 200 029
Position: 41
Availability: 1
Price group: 16
-
Rubber Ring
-
Spare part number: 1 600 206 025
Position: 27
Availability: 1
Price group: 12
-
Holder
-
Spare part number: 1 600 A00 P17
Position: 37
Availability: 1
Price group: 10
-
Switch Handle
-
Spare part number: 1 600 A01 6PW
Position: 18
Availability: 1
Price group: 10
-
Torx Oval-Head Screw 4X30
-
Spare part number: 1 603 414 026
Position: 54
Availability: 6
Price group: 10
-
Torx Oval-Head Screw 4X30
-
Spare part number: 1 603 414 026
Position: 54
Availability: 6
Price group: 10
-
Catch Lever
-
Spare part number: 1 607 000 742
Position: 843
Availability: 1
Price group: 20
-
Compression Spring
-
Spare part number: 1 609 280 477
Position: 46
Availability: 1
Price group: 11
-
Ball Bearing
-
Spare part number: 1 619 P00 455
Position: 14
Availability: 1
Price group: 15
-
Torx Oval-Head Screw 4X25
-
Spare part number: 1 619 P01 066
Position: 53
Availability: 3
Price group: 10
-
Compression Spring
-
Spare part number: 1 619 P11 487
Position: 61
Availability: 1
Price group: 10
-
O-Ring
-
Spare part number: 1 619 P14 427
Position: 33
Availability: 1
Price group: 10
-
Air Distributor
-
Spare part number: 1 619 P16 508
Position: 7
Availability: 1
Price group: 23
-
Push Button
-
Spare part number: 1 619 P17 077
Position: 840
Availability: 1
Price group: 16
-
Gear Housing
-
Spare part number: 1 619 PS1 123
Position: 821
Availability: 1
Price group: -
-
Filter
-
Spare part number: 1 619 PS1 128
Position: 884
Availability: 1
Price group: -
-
Filter
-
Spare part number: 1 619 PS1 128
Position: 884
Availability: 1
Price group: -
-
Motor Housing
-
Spare part number: 1 619 PS2 054
Position: 1
Availability: 1
Price group: -
-
Stator
-
Spare part number: 1 619 PS2 056
Position: 2
Availability: 1
Price group: -
-
Rotor
-
Spare part number: 1 619 PS2 057
Position: 3
Availability: 1
Price group: -
-
Handle
-
Spare part number: 1 619 PS2 059
Position: 4
Availability: 1
Price group: -
-
Handle
-
Spare part number: 1 619 PS2 059
Position: 4
Availability: 1
Price group: -
-
Air-Deflector Ring
-
Spare part number: 1 619 PS2 060
Position: 6
Availability: 1
Price group: -
-
Nameplate
-
Spare part number: 1 619 PS2 065
Position: 808
Availability: 1
Price group: -
-
Manufacturer's nameplate
-
Spare part number: 1 619 PS2 069
Position: 9
Availability: 1
Price group: -
-
Adjusting Slide
-
Spare part number: 1 619 PS2 072
Position: 20
Availability: 1
Price group: -
-
Bearing Flange
-
Spare part number: 1 619 PS2 074
Position: 828
Availability: 1
Price group: -
-
Electronics Module
-
Spare part number: 1 619 PS2 077
Position: 851
Availability: 1
Price group: -
-
Thread-forming tap. Screw M4X16
-
Spare part number: 2 914 491 410
Position: 49
Availability: 4
Price group: 10
-
Hex Nut DIN 934-M6-8-A
-
Spare part number: 2 915 011 007
Position: 45
Availability: 1
Price group: 10
-
O-Ring 47,0X1,5 MM
-
Spare part number: 3 600 210 109
Position: 62
Availability: 1
Price group: 12
-
O-Ring 20,35X1,78 MM
-
Spare part number: 1 600 210 055
Position: 656
Availability: 1
Price group: 10
-
Protective Cover 115 MM
-
Spare part number: 1 600 A00 XK8
Position: 651
Availability: 1
Price group: 26
-
Quick Acting Flange
-
Spare part number: 1 600 A01 6DN
Position: 653
Availability: 1
Price group: 26
-
Protective Cover
-
Spare part number: 1 600 A02 1MG
Position: 652
Availability: 1
Price group: 22
-
Auxiliary Handle
-
Spare part number: 1 602 025 0A0
Position: 654
Availability: 1
Price group: 23
-
Grease Tube 225 ML
-
Spare part number: 1 605 430 003
Position: 895
Availability: 1
Price group: 34
-
Grease Tube 225 ML
-
Spare part number: 1 615 430 020
Position: 894
Availability: 1
Price group: 29
-
Clamping Flange Ø22,3XØ42 MM
-
Spare part number: 2 605 703 014
Position: 655
Availability: 1
Price group: 20
-
1
2
Spare parts in cart
38 Parts found
Sort by
Description
Pos. 1 | Motor Housing
1 619 PS2 054
-
Pos. 2 | Stator
1 619 PS2 056
-
Pos. 3 | Rotor
1 619 PS2 057
-
Pos. 4 | Handle
1 619 PS2 059
-
Pos. 6 | Air-Deflector Ring
1 619 PS2 060
-
Pos. 7 | Air Distributor
1 619 P16 508
-
Pos. 9 | Manufacturer's nameplate
1 619 PS2 069
-
Pos. 14 | Ball Bearing
1 619 P00 455
-
Pos. 18 | Switch Handle
1 600 A01 6PW
-
Pos. 20 | Adjusting Slide
1 619 PS2 072
-
Pos. 27 | Rubber Ring
1 600 206 025
-
Pos. 33 | O-Ring
1 619 P14 427
-
Pos. 35 | Shim 0,2 MM THICK
1 600 136 014
-
Pos. 37 | Holder
1 600 A00 P17
-
Pos. 40 | Retaining clip
1 600 119 011
-
Pos. 41 | Plain bearing
1 600 200 029
-
Pos. 45 | Hex Nut DIN 934-M6-8-A
2 915 011 007
-
Pos. 46 | Compression Spring
1 609 280 477
-
Pos. 49 | Thread-forming tap. Screw M4X16
2 914 491 410
-
Pos. 53 | Torx Oval-Head Screw 4X25
1 619 P01 066
-
Pos. 54 | Torx Oval-Head Screw 4X30
1 603 414 026
-
Pos. 61 | Compression Spring
1 619 P11 487
-
Pos. 62 | O-Ring 47,0X1,5 MM
3 600 210 109
-
Pos. 651 | Protective Cover 115 MM
1 600 A00 XK8
-
Pos. 652 | Protective Cover
1 600 A02 1MG
-
Pos. 653 | Quick Acting Flange
1 600 A01 6DN
-
Pos. 654 | Auxiliary Handle
1 602 025 0A0
-
Pos. 655 | Clamping Flange Ø22,3XØ42 MM
2 605 703 014
-
Pos. 656 | O-Ring 20,35X1,78 MM
1 600 210 055
-
Pos. 808 | Nameplate
1 619 PS2 065
-
Pos. 821 | Gear Housing
1 619 PS1 123
-
Pos. 828 | Bearing Flange
1 619 PS2 074
-
Pos. 840 | Push Button
1 619 P17 077
-
Pos. 843 | Catch Lever
1 607 000 742
-
Pos. 851 | Electronics Module
1 619 PS2 077
-
Pos. 884 | Filter
1 619 PS1 128
-
Pos. 894 | Grease Tube 225 ML
1 615 430 020
-
Pos. 895 | Grease Tube 225 ML
1 605 430 003
-
