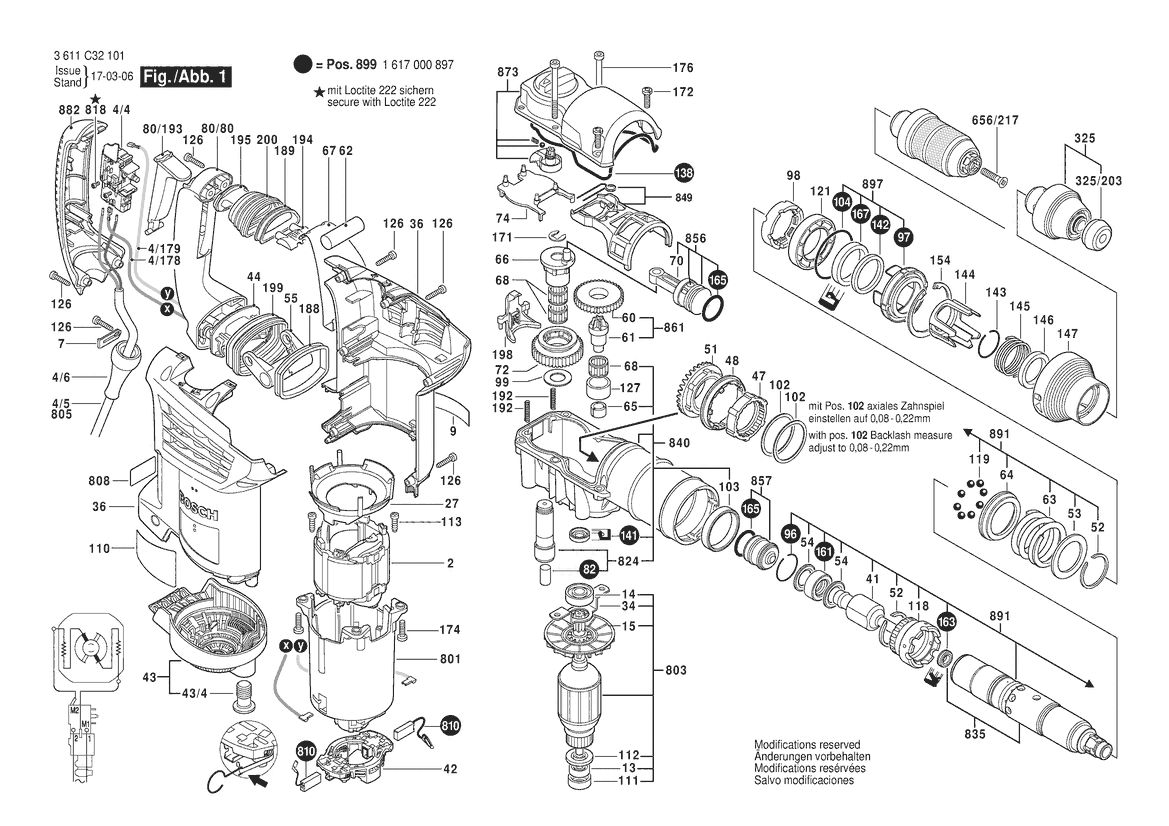

3 611 C32 101
Intermediate Ring
-
Spare part number: 1 600 502 023
Position: 111
Availability: 1
Price group: 12
27,86 R*
Recommended retail price excluding GST
Grommet Ø7,3-Ø8,6X66 MM
-
Spare part number: 1 600 703 034
Position: 4/6
Availability: 1
Price group: 13
33,97 R*
Recommended retail price excluding GST
Rotary shaft lip seal
-
Spare part number: 1 600 A00 89A
Position: 141
Availability: 1
Price group: 19
75,44 R*
Recommended retail price excluding GST
Shaft Seal
-
Spare part number: 1 600 A00 9VC
Position: 163
Availability: 1
Price group: 14
31,23 R*
Recommended retail price excluding GST
Nameplate
-
Spare part number: 1 601 11A 3H5
Position: 808
Availability: 1
Price group: 13
37,59 R*
Recommended retail price excluding GST
Manufacturer's nameplate
-
Spare part number: 1 601 11C 1CA
Position: 9
Availability: 1
Price group: -
-
Fastening Clamp
-
Spare part number: 1 601 302 017
Position: 7
Availability: 1
Price group: 10
12,19 R*
Recommended retail price excluding GST
Thread-forming tap. Screw
-
Spare part number: 1 603 435 08E
Position: 172
Availability: 4
Price group: 10
11,10 R*
Recommended retail price excluding GST
Power supply cord EU 4,15M 2 X 1,0MM H07 RN-F
-
Spare part number: 1 607 000 392
Position: 805
Availability: 1
Price group: 29
350,81 R*
Recommended retail price excluding GST
Damping rubber
-
Spare part number: 1 610 026 002
Position: 62
Availability: 1
Price group: 12
20,88 R*
Recommended retail price excluding GST
Screw Plate
-
Spare part number: 1 610 099 008
Position: 194
Availability: 1
Price group: 12
27,86 R*
Recommended retail price excluding GST
Clamping Piece
-
Spare part number: 1 610 099 009
Position: 195
Availability: 1
Price group: 13
33,97 R*
Recommended retail price excluding GST
Stop Disc
-
Spare part number: 1 610 101 020
Position: 54
Availability: 2
Price group: 16
56,58 R*
Recommended retail price excluding GST
Stop Disc
-
Spare part number: 1 610 101 020
Position: 54
Availability: 2
Price group: 16
56,58 R*
Recommended retail price excluding GST
Supporting Disc 1,0 MM THICK
-
Spare part number: 1 610 101 626
Position: 99
Availability: 1
Price group: 11
27,86 R*
Recommended retail price excluding GST
-
Please click for futher details
-
Please click for futher details
-
Please click for futher details
-
Please click for futher details
-
Please click for futher details
-
Please click for futher details
Supporting Disc
-
Spare part number: 1 610 102 634
Position: 53
Availability: 1
Price group: 13
33,97 R*
Recommended retail price excluding GST
Sealing washer
-
Spare part number: 1 610 190 038
Position: 112
Availability: 1
Price group: 10
11,56 R*
Recommended retail price excluding GST
Plain bearing
-
Spare part number: 1 610 200 027
Position: 103
Availability: 1
Price group: 15
48,74 R*
Recommended retail price excluding GST
Plain bearing
-
Spare part number: 1 610 200 028
Position: 121
Availability: 1
Price group: 20
116,64 R*
Recommended retail price excluding GST
Backup ring
-
Spare part number: 1 610 200 029
Position: 146
Availability: 1
Price group: 19
87,92 R*
Recommended retail price excluding GST
Felt Seal
-
Spare part number: 1 610 205 010
Position: 82
Availability: 1
Price group: 10
12,19 R*
Recommended retail price excluding GST
Felt Washer
-
Spare part number: 1 610 205 012
Position: 142
Availability: 1
Price group: 11
20,88 R*
Recommended retail price excluding GST
Grip-Spring Tensioning E
-
Spare part number: 1 610 209 008
Position: 188
Availability: 1
Price group: 15
39,17 R*
Recommended retail price excluding GST
Clamping Piece
-
Spare part number: 1 610 209 009
Position: 189
Availability: 1
Price group: 14
39,17 R*
Recommended retail price excluding GST
O-Ring 46,0X3,5 MM
-
Spare part number: 1 610 210 196
Position: 104
Availability: 1
Price group: 11
20,88 R*
Recommended retail price excluding GST
O-Ring 21,0X3,5 MM
-
Spare part number: 1 610 210 199
Position: 165
Availability: 2
Price group: 11
20,88 R*
Recommended retail price excluding GST
O-Ring 21,0X3,5 MM
-
Spare part number: 1 610 210 199
Position: 165
Availability: 2
Price group: 11
20,88 R*
Recommended retail price excluding GST
Spacer Sleeve
-
Spare part number: 1 610 211 019
Position: 98
Availability: 1
Price group: 13
39,17 R*
Recommended retail price excluding GST
Collar
-
Spare part number: 1 610 241 001
Position: 144
Availability: 1
Price group: 13
33,97 R*
Recommended retail price excluding GST
Rotary shaft lip seal DIN 3760-A ,Ø32X42X7X6 MM
-
Spare part number: 1 610 283 030
Position: 167
Availability: 1
Price group: 26
134,94 R*
Recommended retail price excluding GST
Bellows
-
Spare part number: 1 610 284 001
Position: 200
Availability: 1
Price group: 18
76,61 R*
Recommended retail price excluding GST
Bellows
-
Spare part number: 1 610 284 002
Position: 199
Availability: 1
Price group: 18
76,61 R*
Recommended retail price excluding GST
Clutch Sleeve
-
Spare part number: 1 610 290 085
Position: 48
Availability: 1
Price group: 29
309,03 R*
Recommended retail price excluding GST
Damping Ring
-
Spare part number: 1 610 290 092
Position: 161
Availability: 1
Price group: 16
56,58 R*
Recommended retail price excluding GST
Plain bearing
-
Spare part number: 1 610 301 007
Position: 65
Availability: 1
Price group: 17
69,64 R*
Recommended retail price excluding GST
Sealing Sleeve
-
Spare part number: 1 610 314 005
Position: 97
Availability: 1
Price group: 13
33,97 R*
Recommended retail price excluding GST
Sealing Sleeve
-
Spare part number: 1 610 314 006
Position: 897
Availability: 1
Price group: 24
172,36 R*
Recommended retail price excluding GST
Guide Sleeve BLACK
-
Spare part number: 1 610 390 056
Position: 147
Availability: 1
Price group: 13
33,97 R*
Recommended retail price excluding GST
Bushing
-
Spare part number: 1 610 422 021
Position: 127
Availability: 1
Price group: 17
69,64 R*
Recommended retail price excluding GST
Protective Cap
-
Spare part number: 1 610 508 047
Position: 325/203
Availability: 1
Price group: 12
27,86 R*
Recommended retail price excluding GST
Air-Deflector Ring BLACK
-
Spare part number: 1 610 591 043
Position: 27
Availability: 1
Price group: 15
48,74 R*
Recommended retail price excluding GST
groove ball bearing 10X26X8
-
Spare part number: 1 610 905 036
Position: 14
Availability: 1
Price group: 20
101,86 R*
Recommended retail price excluding GST
Needle-Roller Assembly
-
Spare part number: 1 610 913 021
Position: 68
Availability: 3
Price group: 13
33,97 R*
Recommended retail price excluding GST
Needle-Roller Assembly
-
Spare part number: 1 610 913 021
Position: 68
Availability: 3
Price group: 13
33,97 R*
Recommended retail price excluding GST
Sealing Frame
-
Spare part number: 1 611 015 058
Position: 138
Availability: 1
Price group: 18
48,74 R*
Recommended retail price excluding GST
Reference Plate
-
Spare part number: 1 611 110 Y97
Position: 110
Availability: 1
Price group: 13
37,59 R*
Recommended retail price excluding GST
Fixing Plate
-
Spare part number: 1 611 322 004
Position: 34
Availability: 1
Price group: 14
39,17 R*
Recommended retail price excluding GST
Control Fork BLACK
-
Spare part number: 1 611 329 030
Position: 849
Availability: 1
Price group: 22
134,94 R*
Recommended retail price excluding GST
Connecting Rod
-
Spare part number: 1 612 001 041
Position: 70
Availability: 1
Price group: 26
210,67 R*
Recommended retail price excluding GST
Switch-Pawl RED
-
Spare part number: 1 612 026 126
Position: 80/193
Availability: 1
Price group: 13
39,17 R*
Recommended retail price excluding GST
Switch Slide
-
Spare part number: 1 612 099 000
Position: 198
Availability: 1
Price group: 15
48,74 R*
Recommended retail price excluding GST
Rocker Arm BLACK
-
Spare part number: 1 612 099 001
Position: 55
Availability: 2
Price group: 13
27,86 R*
Recommended retail price excluding GST
Eccentric Shaft
-
Spare part number: 1 613 123 013
Position: 824
Availability: 1
Price group: 28
271,60 R*
Recommended retail price excluding GST
Striker Pin
-
Spare part number: 1 613 124 088
Position: 41
Availability: 1
Price group: 32
453,53 R*
Recommended retail price excluding GST
Lens Head Screw
-
Spare part number: 1 613 435 038
Position: 113
Availability: 2
Price group: 10
20,88 R*
Recommended retail price excluding GST
Clamp Screw
-
Spare part number: 1 613 490 007
Position: 43/4
Availability: 1
Price group: 11
20,88 R*
Recommended retail price excluding GST
Thread-forming tap. Screw
-
Spare part number: 1 613 490 014
Position: 174
Availability: 4
Price group: 11
20,88 R*
Recommended retail price excluding GST
Armature With Fan 230V
-
Spare part number: 1 614 010 252
Position: 803
Availability: 1
Price group: 42
1 042,61 R*
Recommended retail price excluding GST
Carbon-Brush Set
-
Spare part number: 1 614 321 079
Position: 810
Availability: 1
Price group: 27
173,04 R*
Recommended retail price excluding GST
Carbon-Brush Set
-
Spare part number: 1 614 321 079
Position: 810
Availability: 1
Price group: 27
173,04 R*
Recommended retail price excluding GST
Brush Holder
-
Spare part number: 1 614 336 072
Position: 42
Availability: 1
Price group: 32
453,53 R*
Recommended retail price excluding GST
Support Plate
-
Spare part number: 1 614 336 075
Position: 74
Availability: 1
Price group: 11
33,97 R*
Recommended retail price excluding GST
Connecting Cable
-
Spare part number: 1 614 412 055
Position: 4/178
Availability: 1
Price group: 14
39,17 R*
Recommended retail price excluding GST
Connecting Cable
-
Spare part number: 1 614 412 056
Position: 4/179
Availability: 1
Price group: 14
39,17 R*
Recommended retail price excluding GST
Retaining ring
-
Spare part number: 1 614 601 060
Position: 96
Availability: 1
Price group: 11
20,88 R*
Recommended retail price excluding GST
Spring retaining ring
-
Spare part number: 1 614 601 061
Position: 52
Availability: 2
Price group: 13
27,86 R*
Recommended retail price excluding GST
Spring retaining ring
-
Spare part number: 1 614 601 061
Position: 52
Availability: 2
Price group: 13
27,86 R*
Recommended retail price excluding GST
Spring retaining ring
-
Spare part number: 1 614 601 062
Position: 154
Availability: 1
Price group: 12
27,86 R*
Recommended retail price excluding GST
Compression Spring
-
Spare part number: 1 614 611 016
Position: 192
Availability: 2
Price group: 10
20,88 R*
Recommended retail price excluding GST
Compression Spring
-
Spare part number: 1 614 611 016
Position: 192
Availability: 2
Price group: 10
20,88 R*
Recommended retail price excluding GST
Compression Spring
-
Spare part number: 1 614 611 023
Position: 145
Availability: 1
Price group: 11
20,88 R*
Recommended retail price excluding GST
Rocker Foot BLACK
-
Spare part number: 1 614 611 025
Position: 44
Availability: 1
Price group: 14
33,97 R*
Recommended retail price excluding GST
Compression Spring
-
Spare part number: 1 614 611 026
Position: 63
Availability: 1
Price group: 19
87,92 R*
Recommended retail price excluding GST
Housing Section
-
Spare part number: 1 615 104 049
Position: 36
Availability: 1
Price group: 32
390,85 R*
Recommended retail price excluding GST
Housing Section
-
Spare part number: 1 615 104 049
Position: 36
Availability: 1
Price group: 32
390,85 R*
Recommended retail price excluding GST
Motor Housing BLACK
-
Spare part number: 1 615 108 150
Position: 801
Availability: 1
Price group: 28
271,60 R*
Recommended retail price excluding GST
Handle BLUE
-
Spare part number: 1 615 133 033
Position: 80/80
Availability: 1
Price group: 23
153,21 R*
Recommended retail price excluding GST
Impact Mechanism Housing
-
Spare part number: 1 615 190 168
Position: 840
Availability: 1
Price group: 43
1 332,72 R*
Recommended retail price excluding GST
Fan Cover BLACK
-
Spare part number: 1 615 500 384
Position: 43
Availability: 1
Price group: 22
134,94 R*
Recommended retail price excluding GST
Housing Cover
-
Spare part number: 1 615 500 411
Position: 873
Availability: 1
Price group: 32
453,53 R*
Recommended retail price excluding GST
Hammer Pipe
-
Spare part number: 1 615 806 229
Position: 835
Availability: 1
Price group: 47
1 454,82 R*
Recommended retail price excluding GST
Hammer Pipe
-
Spare part number: 1 615 806 230
Position: 891
Availability: 1
Price group: 50
2 130,56 R*
Recommended retail price excluding GST
Hammer Pipe
-
Spare part number: 1 615 806 230
Position: 891
Availability: 1
Price group: 50
2 130,56 R*
Recommended retail price excluding GST
Leaf Spring
-
Spare part number: 1 616 232 006
Position: 67
Availability: 1
Price group: 12
27,86 R*
Recommended retail price excluding GST
Cylindrical Gear
-
Spare part number: 1 616 317 076
Position: 60
Availability: 1
Price group: 25
191,51 R*
Recommended retail price excluding GST
Eccentric Cog Wheel
-
Spare part number: 1 616 317 077
Position: 72
Availability: 1
Price group: 33
530,14 R*
Recommended retail price excluding GST
Gear Sleeve
-
Spare part number: 1 616 328 049
Position: 47
Availability: 1
Price group: 25
191,51 R*
Recommended retail price excluding GST
Crown Gear
-
Spare part number: 1 616 333 044
Position: 51
Availability: 1
Price group: 33
530,14 R*
Recommended retail price excluding GST
Pinion
-
Spare part number: 1 616 333 046
Position: 61
Availability: 1
Price group: 30
350,81 R*
Recommended retail price excluding GST
Pinion
-
Spare part number: 1 616 333 048
Position: 861
Availability: 1
Price group: 32
453,53 R*
Recommended retail price excluding GST
Clutch Ring
-
Spare part number: 1 616 409 024
Position: 64
Availability: 1
Price group: 27
236,77 R*
Recommended retail price excluding GST
Eccentric
-
Spare part number: 1 616 455 006
Position: 66
Availability: 1
Price group: 34
576,29 R*
Recommended retail price excluding GST
Clutch Sleeve
-
Spare part number: 1 616 455 007
Position: 118
Availability: 1
Price group: 34
576,29 R*
Recommended retail price excluding GST
Fan
-
Spare part number: 1 616 610 100
Position: 15
Availability: 1
Price group: 15
48,74 R*
Recommended retail price excluding GST
Handle Cover BLACK
-
Spare part number: 1 617 000 6AE
Position: 882
Availability: 1
Price group: 24
167,49 R*
Recommended retail price excluding GST
Tool Holding Fixture
-
Spare part number: 1 617 000 895
Position: 325
Availability: 1
Price group: 36
964,59 R*
Recommended retail price excluding GST
Wear and Tear Part Set
-
Spare part number: 1 617 000 897
Position: 899
Availability: 1
Price group: 34
377,97 R*
Recommended retail price excluding GST
Switch
-
Spare part number: 1 617 200 127
Position: 4/4
Availability: 1
Price group: 32
260,00 R*
Recommended retail price excluding GST
Hammer Piston
-
Spare part number: 1 618 700 093
Position: 856
Availability: 1
Price group: 26
210,67 R*
Recommended retail price excluding GST
Striker
-
Spare part number: 1 618 710 094
Position: 857
Availability: 1
Price group: 28
271,60 R*
Recommended retail price excluding GST
Field 230V
-
Spare part number: 1 619 P08 340
Position: 2
Availability: 1
Price group: 33
346,96 R*
Recommended retail price excluding GST
Ball DIN 5401-Ø7MM-III-ST
-
Spare part number: 1 903 230 013
Position: 119
Availability: 8
Price group: 11
12,19 R*
Recommended retail price excluding GST
Ball Bearing 7X19X6
-
Spare part number: 2 600 905 032
Position: 13
Availability: 1
Price group: 17
69,64 R*
Recommended retail price excluding GST
Socket head cap screw M3X6,5-4.8
-
Spare part number: 2 603 410 001
Position: 818
Availability: 2
Price group: 11
20,88 R*
Recommended retail price excluding GST
Countersunk-Head Screw M6X23 LEFTHAND THREADS
-
Spare part number: 2 603 421 229
Position: 656/217
Availability: 1
Price group: 11
21,75 R*
Recommended retail price excluding GST
Torx Oval-Head Screw 4X20
-
Spare part number: 2 603 490 023
Position: 126
Availability: 11
Price group: 10
12,19 R*
Recommended retail price excluding GST
Torx Oval-Head Screw 4X20
-
Spare part number: 2 603 490 023
Position: 126
Availability: 11
Price group: 10
12,19 R*
Recommended retail price excluding GST
Torx Oval-Head Screw 4X20
-
Spare part number: 2 603 490 023
Position: 126
Availability: 11
Price group: 10
12,19 R*
Recommended retail price excluding GST
Torx Oval-Head Screw 4X20
-
Spare part number: 2 603 490 023
Position: 126
Availability: 11
Price group: 10
12,19 R*
Recommended retail price excluding GST
Torx Oval-Head Screw 4X20
-
Spare part number: 2 603 490 023
Position: 126
Availability: 11
Price group: 10
12,19 R*
Recommended retail price excluding GST
Torx Oval-Head Screw 4X20
-
Spare part number: 2 603 490 023
Position: 126
Availability: 11
Price group: 10
12,19 R*
Recommended retail price excluding GST
Socket head cap screw
-
Spare part number: 2 912 738 178
Position: 176
Availability: 2
Price group: 10
12,19 R*
Recommended retail price excluding GST
Locking washer
-
Spare part number: 2 916 080 911
Position: 171
Availability: 1
Price group: 12
20,88 R*
Recommended retail price excluding GST
Retaining ring DIN 7993-28
-
Spare part number: 2 916 540 015
Position: 143
Availability: 1
Price group: 11
20,88 R*
Recommended retail price excluding GST
Auxiliary Handle
-
Spare part number: 1 602 025 07H
Position: 84
Availability: 1
Price group: 23
169,64 R*
Recommended retail price excluding GST
Clamping Band Ø62 MM
-
Spare part number: 1 611 316 019
Position: 87
Availability: 1
Price group: 16
56,58 R*
Recommended retail price excluding GST
Auxiliary Handle
-
Spare part number: 1 612 025 079
Position: 884
Availability: 1
Price group: 27
236,77 R*
Recommended retail price excluding GST
Depth-Gauge SW 6X330 MM
-
Spare part number: 1 613 001 008
Position: 688
Availability: 1
Price group: 21
116,64 R*
Recommended retail price excluding GST
T-Head Bolt M8X40 MM
-
Spare part number: 1 613 490 002
Position: 86
Availability: 1
Price group: 16
33,97 R*
Recommended retail price excluding GST
Grease Tube 30 ML
-
Spare part number: 1 615 430 010
Position: 661
Availability: 1
Price group: 18
76,61 R*
Recommended retail price excluding GST
Lock for 1 615 438 395
-
Spare part number: 1 615 438 426
Position: 895
Availability: 1
Price group: -
-
Support clamp
-
Spare part number: 1 618 040 087
Position: 85
Availability: 1
Price group: 20
101,86 R*
Recommended retail price excluding GST
Torx Oval-Head Screw 4X20
-
Spare part number: 2 603 490 023
Position: 126
Availability: 11
Price group: 10
12,19 R*
Recommended retail price excluding GST
1
2
My spare part list
112 Parts found
Sort by
Description
Pos. 2 | Field 230V
1 619 P08 340
-
*Recommended retail price excluding GST
Pos. 4/4 | Switch
1 617 200 127
-
*Recommended retail price excluding GST
Pos. 4/6 | Grommet Ø7,3-Ø8,6X66 MM
1 600 703 034
-
*Recommended retail price excluding GST
Pos. 4/178 | Connecting Cable
1 614 412 055
-
*Recommended retail price excluding GST
Pos. 4/179 | Connecting Cable
1 614 412 056
-
*Recommended retail price excluding GST
Pos. 7 | Fastening Clamp
1 601 302 017
-
*Recommended retail price excluding GST
Pos. 9 | Manufacturer's nameplate
1 601 11C 1CA
-
Pos. 13 | Ball Bearing 7X19X6
2 600 905 032
-
*Recommended retail price excluding GST
Pos. 14 | groove ball bearing 10X26X8
1 610 905 036
-
*Recommended retail price excluding GST
Pos. 15 | Fan
1 616 610 100
-
*Recommended retail price excluding GST
Pos. 27 | Air-Deflector Ring BLACK
1 610 591 043
-
*Recommended retail price excluding GST
Pos. 34 | Fixing Plate
1 611 322 004
-
*Recommended retail price excluding GST
Pos. 36 | Housing Section
1 615 104 049
-
*Recommended retail price excluding GST
Pos. 41 | Striker Pin
1 613 124 088
-
*Recommended retail price excluding GST
Pos. 42 | Brush Holder
1 614 336 072
-
*Recommended retail price excluding GST
Pos. 43 | Fan Cover BLACK
1 615 500 384
-
*Recommended retail price excluding GST
Pos. 43/4 | Clamp Screw
1 613 490 007
-
*Recommended retail price excluding GST
Pos. 44 | Rocker Foot BLACK
1 614 611 025
-
*Recommended retail price excluding GST
Pos. 47 | Gear Sleeve
1 616 328 049
-
*Recommended retail price excluding GST
Pos. 48 | Clutch Sleeve
1 610 290 085
-
*Recommended retail price excluding GST
Pos. 51 | Crown Gear
1 616 333 044
-
*Recommended retail price excluding GST
Pos. 52 | Spring retaining ring
1 614 601 061
-
*Recommended retail price excluding GST
Pos. 53 | Supporting Disc
1 610 102 634
-
*Recommended retail price excluding GST
Pos. 54 | Stop Disc
1 610 101 020
-
*Recommended retail price excluding GST
Pos. 55 | Rocker Arm BLACK
1 612 099 001
-
*Recommended retail price excluding GST
Pos. 60 | Cylindrical Gear
1 616 317 076
-
*Recommended retail price excluding GST
Pos. 61 | Pinion
1 616 333 046
-
*Recommended retail price excluding GST
Pos. 62 | Damping rubber
1 610 026 002
-
*Recommended retail price excluding GST
Pos. 63 | Compression Spring
1 614 611 026
-
*Recommended retail price excluding GST
Pos. 64 | Clutch Ring
1 616 409 024
-
*Recommended retail price excluding GST
Pos. 65 | Plain bearing
1 610 301 007
-
*Recommended retail price excluding GST
Pos. 66 | Eccentric
1 616 455 006
-
*Recommended retail price excluding GST
Pos. 67 | Leaf Spring
1 616 232 006
-
*Recommended retail price excluding GST
Pos. 68 | Needle-Roller Assembly
1 610 913 021
-
*Recommended retail price excluding GST
Pos. 70 | Connecting Rod
1 612 001 041
-
*Recommended retail price excluding GST
Pos. 72 | Eccentric Cog Wheel
1 616 317 077
-
*Recommended retail price excluding GST
Pos. 74 | Support Plate
1 614 336 075
-
*Recommended retail price excluding GST
Pos. 80/80 | Handle BLUE
1 615 133 033
-
*Recommended retail price excluding GST
Pos. 80/193 | Switch-Pawl RED
1 612 026 126
-
*Recommended retail price excluding GST
Pos. 82 | Felt Seal
1 610 205 010
-
*Recommended retail price excluding GST
Pos. 84 | Auxiliary Handle
1 602 025 07H
-
*Recommended retail price excluding GST
Pos. 85 | Support clamp
1 618 040 087
-
*Recommended retail price excluding GST
Pos. 86 | T-Head Bolt M8X40 MM
1 613 490 002
-
*Recommended retail price excluding GST
Pos. 87 | Clamping Band Ø62 MM
1 611 316 019
-
*Recommended retail price excluding GST
Pos. 96 | Retaining ring
1 614 601 060
-
*Recommended retail price excluding GST
Pos. 97 | Sealing Sleeve
1 610 314 005
-
*Recommended retail price excluding GST
Pos. 98 | Spacer Sleeve
1 610 211 019
-
*Recommended retail price excluding GST
Pos. 99 | Supporting Disc 1,0 MM THICK
1 610 101 626
-
*Recommended retail price excluding GST
Pos. 102 | Shim 0,8 MM THICK
1 610 102 079
-
*Recommended retail price excluding GST
Pos. 102 | Shim 0,9 MM THICK
1 610 102 080
-
*Recommended retail price excluding GST
Pos. 102 | Shim 1,0 MM THICK
1 610 102 081
-
*Recommended retail price excluding GST
Pos. 103 | Plain bearing
1 610 200 027
-
*Recommended retail price excluding GST
Pos. 104 | O-Ring 46,0X3,5 MM
1 610 210 196
-
*Recommended retail price excluding GST
Pos. 110 | Reference Plate
1 611 110 Y97
-
*Recommended retail price excluding GST
Pos. 111 | Intermediate Ring
1 600 502 023
-
*Recommended retail price excluding GST
Pos. 112 | Sealing washer
1 610 190 038
-
*Recommended retail price excluding GST
Pos. 113 | Lens Head Screw
1 613 435 038
-
*Recommended retail price excluding GST
Pos. 118 | Clutch Sleeve
1 616 455 007
-
*Recommended retail price excluding GST
Pos. 119 | Ball DIN 5401-Ø7MM-III-ST
1 903 230 013
-
*Recommended retail price excluding GST
Pos. 121 | Plain bearing
1 610 200 028
-
*Recommended retail price excluding GST
Pos. 126 | Torx Oval-Head Screw 4X20
2 603 490 023
-
*Recommended retail price excluding GST
Pos. 127 | Bushing
1 610 422 021
-
*Recommended retail price excluding GST
Pos. 138 | Sealing Frame
1 611 015 058
-
*Recommended retail price excluding GST
Pos. 141 | Rotary shaft lip seal
1 600 A00 89A
-
*Recommended retail price excluding GST
Pos. 142 | Felt Washer
1 610 205 012
-
*Recommended retail price excluding GST
Pos. 143 | Retaining ring DIN 7993-28
2 916 540 015
-
*Recommended retail price excluding GST
Pos. 144 | Collar
1 610 241 001
-
*Recommended retail price excluding GST
Pos. 145 | Compression Spring
1 614 611 023
-
*Recommended retail price excluding GST
Pos. 146 | Backup ring
1 610 200 029
-
*Recommended retail price excluding GST
Pos. 147 | Guide Sleeve BLACK
1 610 390 056
-
*Recommended retail price excluding GST
Pos. 154 | Spring retaining ring
1 614 601 062
-
*Recommended retail price excluding GST
Pos. 161 | Damping Ring
1 610 290 092
-
*Recommended retail price excluding GST
Pos. 163 | Shaft Seal
1 600 A00 9VC
-
*Recommended retail price excluding GST
Pos. 165 | O-Ring 21,0X3,5 MM
1 610 210 199
-
*Recommended retail price excluding GST
Pos. 167 | Rotary shaft lip seal DIN 3760-A ,Ø32X42X7X6 MM
1 610 283 030
-
*Recommended retail price excluding GST
Pos. 171 | Locking washer
2 916 080 911
-
*Recommended retail price excluding GST
Pos. 172 | Thread-forming tap. Screw
1 603 435 08E
-
*Recommended retail price excluding GST
Pos. 174 | Thread-forming tap. Screw
1 613 490 014
-
*Recommended retail price excluding GST
Pos. 176 | Socket head cap screw
2 912 738 178
-
*Recommended retail price excluding GST
Pos. 188 | Grip-Spring Tensioning E
1 610 209 008
-
*Recommended retail price excluding GST
Pos. 189 | Clamping Piece
1 610 209 009
-
*Recommended retail price excluding GST
Pos. 192 | Compression Spring
1 614 611 016
-
*Recommended retail price excluding GST
Pos. 194 | Screw Plate
1 610 099 008
-
*Recommended retail price excluding GST
Pos. 195 | Clamping Piece
1 610 099 009
-
*Recommended retail price excluding GST
Pos. 198 | Switch Slide
1 612 099 000
-
*Recommended retail price excluding GST
Pos. 199 | Bellows
1 610 284 002
-
*Recommended retail price excluding GST
Pos. 200 | Bellows
1 610 284 001
-
*Recommended retail price excluding GST
Pos. 325 | Tool Holding Fixture
1 617 000 895
-
*Recommended retail price excluding GST
Pos. 325/203 | Protective Cap
1 610 508 047
-
*Recommended retail price excluding GST
Pos. 656/217 | Countersunk-Head Screw M6X23 LEFTHAND THREADS
2 603 421 229
-
*Recommended retail price excluding GST
Pos. 661 | Grease Tube 30 ML
1 615 430 010
-
*Recommended retail price excluding GST
Pos. 688 | Depth-Gauge SW 6X330 MM
1 613 001 008
-
*Recommended retail price excluding GST
Pos. 801 | Motor Housing BLACK
1 615 108 150
-
*Recommended retail price excluding GST
Pos. 803 | Armature With Fan 230V
1 614 010 252
-
*Recommended retail price excluding GST
Pos. 805 | Power supply cord EU 4,15M 2 X 1,0MM H07 RN-F
1 607 000 392
-
*Recommended retail price excluding GST
Pos. 808 | Nameplate
1 601 11A 3H5
-
*Recommended retail price excluding GST
Pos. 810 | Carbon-Brush Set
1 614 321 079
-
*Recommended retail price excluding GST
Pos. 818 | Socket head cap screw M3X6,5-4.8
2 603 410 001
-
*Recommended retail price excluding GST
Pos. 824 | Eccentric Shaft
1 613 123 013
-
*Recommended retail price excluding GST
Pos. 835 | Hammer Pipe
1 615 806 229
-
*Recommended retail price excluding GST
Pos. 840 | Impact Mechanism Housing
1 615 190 168
-
*Recommended retail price excluding GST
Pos. 849 | Control Fork BLACK
1 611 329 030
-
*Recommended retail price excluding GST
Pos. 856 | Hammer Piston
1 618 700 093
-
*Recommended retail price excluding GST
Pos. 857 | Striker
1 618 710 094
-
*Recommended retail price excluding GST
Pos. 861 | Pinion
1 616 333 048
-
*Recommended retail price excluding GST
Pos. 873 | Housing Cover
1 615 500 411
-
*Recommended retail price excluding GST
Pos. 882 | Handle Cover BLACK
1 617 000 6AE
-
*Recommended retail price excluding GST
Pos. 884 | Auxiliary Handle
1 612 025 079
-
*Recommended retail price excluding GST
Pos. 891 | Hammer Pipe
1 615 806 230
-
*Recommended retail price excluding GST
Pos. 895 | Lock for 1 615 438 395
1 615 438 426
-
Pos. 897 | Sealing Sleeve
1 610 314 006
-
*Recommended retail price excluding GST
Pos. 899 | Wear and Tear Part Set
1 617 000 897
-
*Recommended retail price excluding GST
* Recommended retail price excluding GST
