Straight Grinders
GGS 28 LCE | 3 601 B21 100 | 230 V / 001 - EU
3 601 B21 100

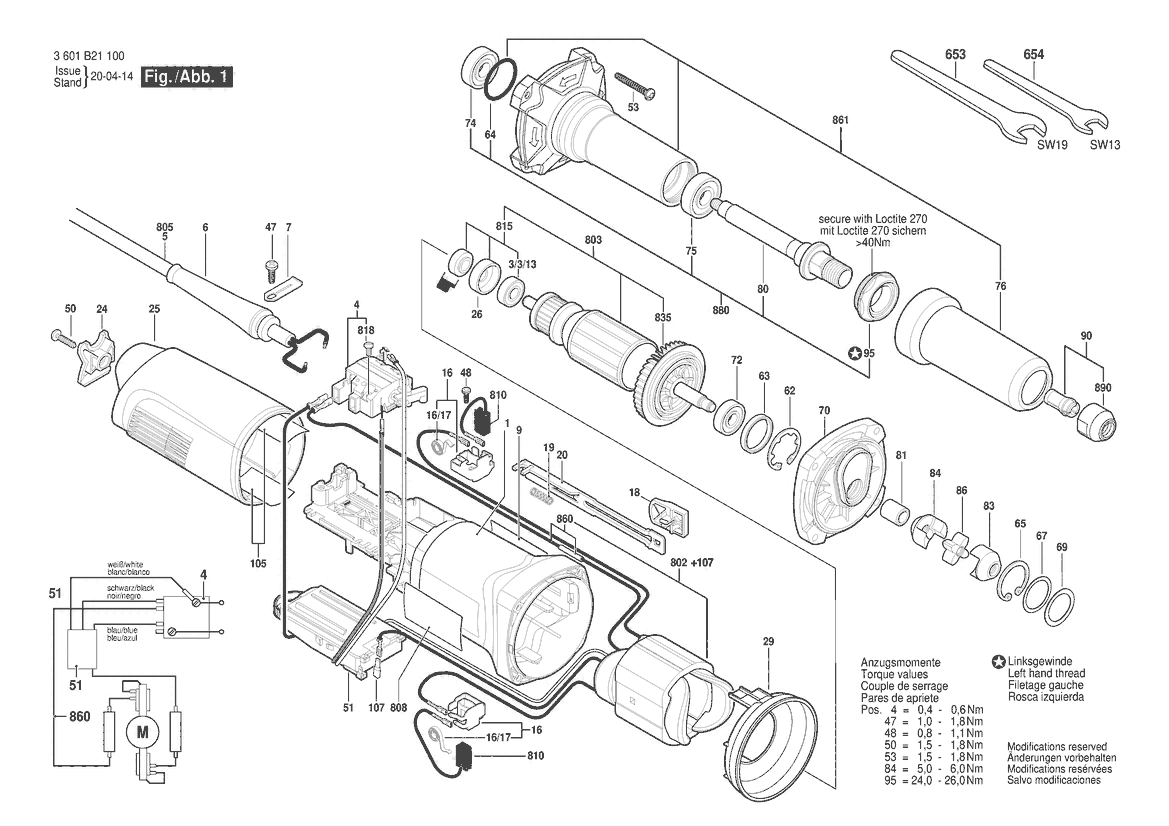

Image 1
Retaining clip
-
part
Spare part number: 1 600 119 011
Position: 62
Availability: 1
Price group: 12
20,88 R*
Recommended retail price excluding GST
Rubber Ring
-
part
Spare part number: 1 600 206 025
Position: 63
Availability: 1
Price group: 12
27,86 R*
Recommended retail price excluding GST
Rubber Ring
-
part
Spare part number: 1 600 206 036
Position: 26
Availability: 1
Price group: 11
20,88 R*
Recommended retail price excluding GST
Air-Deflector Ring
-
part
Spare part number: 1 600 591 025
Position: 29
Availability: 1
Price group: 13
33,97 R*
Recommended retail price excluding GST
Grommet
-
part
Spare part number: 1 600 703 040
Position: 6
Availability: 1
Price group: 12
27,86 R*
Recommended retail price excluding GST
Insulating Part
-
part
Spare part number: 1 600 712 030
Position: 107
Availability: 1
Price group: 11
20,88 R*
Recommended retail price excluding GST
groove ball bearing 8X22X7
-
part
Spare part number: 1 600 905 032
Position: 72
Availability: 1
Price group: 18
46,00 R*
Recommended retail price excluding GST
Insulating Plate
-
part
Spare part number: 1 601 008 005
Position: 105
Availability: 2
Price group: 14
39,17 R*
Recommended retail price excluding GST
Nameplate
-
Spare part number: 1 601 11A 3H3
Position: 808
Availability: 1
Price group: 13
31,23 R*
Recommended retail price excluding GST
Fastening Clamp
-
part
Spare part number: 1 601 302 017
Position: 7
Availability: 1
Price group: 10
12,19 R*
Recommended retail price excluding GST
Brush Holder
-
part
Spare part number: 1 601 323 025
Position: 16
Availability: 2
Price group: 15
48,74 R*
Recommended retail price excluding GST
Brush Holder
-
part
Spare part number: 1 601 323 025
Position: 16
Availability: 2
Price group: 15
48,74 R*
Recommended retail price excluding GST
Switch Handle
-
part
Spare part number: 1 602 026 088
Position: 18
Availability: 1
Price group: 10
12,19 R*
Recommended retail price excluding GST
Adjusting Slide BLACK
-
part
Spare part number: 1 602 319 010
Position: 20
Availability: 1
Price group: 11
20,88 R*
Recommended retail price excluding GST
Connecting Cable
-
part
Spare part number: 1 604 448 023
Position: 860
Availability: 1
Price group: 11
20,88 R*
Recommended retail price excluding GST
Connecting Cable
-
part
Spare part number: 1 604 448 023
Position: 860
Availability: 1
Price group: 11
20,88 R*
Recommended retail price excluding GST
Compression Spring
-
part
Spare part number: 1 604 611 026
Position: 19
Availability: 1
Price group: 10
12,19 R*
Recommended retail price excluding GST
Spiral Spring
-
part
Spare part number: 1 604 652 013
Position: 16/17
Availability: 1
Price group: 11
20,88 R*
Recommended retail price excluding GST
Spiral Spring
-
part
Spare part number: 1 604 652 013
Position: 16/17
Availability: 1
Price group: 11
20,88 R*
Recommended retail price excluding GST
Cover
-
part
Spare part number: 1 605 500 227
Position: 24
Availability: 1
Price group: 12
27,86 R*
Recommended retail price excluding GST
Housing Cover DARK BLUE
-
part
Spare part number: 1 605 500 251
Position: 25
Availability: 1
Price group: 20
101,86 R*
Recommended retail price excluding GST
Fan
-
part
Spare part number: 1 606 610 129
Position: 835
Availability: 1
Price group: 12
27,86 R*
Recommended retail price excluding GST
Parts Set
-
part
Spare part number: 1 607 000 378
Position: 815
Availability: 1
Price group: 19
87,92 R*
Recommended retail price excluding GST
Power supply cord EU 4,15M 2 X 1,0MM H07 RN-F
-
part
Spare part number: 1 607 000 392
Position: 805
Availability: 1
Price group: 29
350,81 R*
Recommended retail price excluding GST
-

Please click for futher details

-

Please click for futher details

-

Please click for futher details

-

Please click for futher details

Switch
-
part
Spare part number: 1 607 200 199
Position: 4
Availability: 1
Price group: 27
112,17 R*
Recommended retail price excluding GST
Switch
-
part
Spare part number: 1 607 200 199
Position: 4
Availability: 1
Price group: 27
112,17 R*
Recommended retail price excluding GST
Speed governor
-
part
Spare part number: 1 607 233 452
Position: 51
Availability: 1
Price group: 42
850,83 R*
Recommended retail price excluding GST
Speed governor
-
part
Spare part number: 1 607 233 452
Position: 51
Availability: 1
Price group: 42
850,83 R*
Recommended retail price excluding GST
Speed governor
-
part
Spare part number: 1 607 233 452
Position: 51
Availability: 1
Price group: 42
850,83 R*
Recommended retail price excluding GST
O-Ring 26,0X2,0 MM
-
part
Spare part number: 1 610 210 101
Position: 64
Availability: 1
Price group: 14
27,86 R*
Recommended retail price excluding GST
Lens Head Screw 3X10 ST
-
part
Spare part number: 1 613 435 034
Position: 48
Availability: 2
Price group: 10
12,19 R*
Recommended retail price excluding GST
Shim 0,10 MM
-
part
Spare part number: 1 710 102 601
Position: 69
Availability: 1
Price group: 11
12,19 R*
Recommended retail price excluding GST
Ball Bearing 7X19X6
-
part
Spare part number: 2 600 905 032
Position: 3/3/13
Availability: 1
Price group: 17
69,64 R*
Recommended retail price excluding GST
Torx Oval-Head Screw 4X12
-
part
Spare part number: 2 603 490 021
Position: 47
Availability: 1
Price group: 10
12,19 R*
Recommended retail price excluding GST
Torx Oval-Head Screw 4X20
-
part
Spare part number: 2 603 490 023
Position: 50
Availability: 1
Price group: 10
12,19 R*
Recommended retail price excluding GST
Torx Oval-Head Screw 4X30
-
part
Spare part number: 2 603 490 025
Position: 53
Availability: 4
Price group: 10
12,19 R*
Recommended retail price excluding GST
Pan head screw DIN 85-AM3X6-CUZN
-
part
Spare part number: 2 910 110 048
Position: 818
Availability: 1
Price group: 10
12,19 R*
Recommended retail price excluding GST
Spring retaining ring DIN 472-26X1,2 MM
-
part
Spare part number: 2 916 660 010
Position: 65
Availability: 1
Price group: 10
12,19 R*
Recommended retail price excluding GST
Shim
-
part
Spare part number: 3 600 150 011
Position: 67
Availability: 1
Price group: 11
20,88 R*
Recommended retail price excluding GST
Flange LEFTHAND THREADS
-
part
Spare part number: 3 600 328 043
Position: 95
Availability: 1
Price group: 31
350,81 R*
Recommended retail price excluding GST
Spacer Sleeve
-
part
Spare part number: 3 600 400 034
Position: 81
Availability: 1
Price group: 16
56,58 R*
Recommended retail price excluding GST
groove ball bearing 10X26X8
-
part
Spare part number: 3 600 905 156
Position: 74
Availability: 1
Price group: 24
114,21 R*
Recommended retail price excluding GST
groove ball bearing
-
part
Spare part number: 3 600 905 157
Position: 75
Availability: 1
Price group: 24
114,21 R*
Recommended retail price excluding GST
Manufacturer's nameplate
-
part
Spare part number: 3 601 110 594
Position: 9
Availability: 1
Price group: -
-
Round Nut
-
part
Spare part number: 3 603 313 006
Position: 890
Availability: 1
Price group: 22
116,64 R*
Recommended retail price excluding GST
Grinding Spindle
-
part
Spare part number: 3 603 523 070
Position: 80
Availability: 1
Price group: 36
778,48 R*
Recommended retail price excluding GST
Motor Housing
-
part
Spare part number: 3 605 108 224
Position: 1
Availability: 1
Price group: 22
134,94 R*
Recommended retail price excluding GST
Protective Sleeve
-
part
Spare part number: 3 605 500 194
Position: 76
Availability: 1
Price group: 24
134,94 R*
Recommended retail price excluding GST
Intermediate Flange
-
part
Spare part number: 3 605 700 225
Position: 70
Availability: 1
Price group: -
-
Carrier
-
part
Spare part number: 3 606 337 242
Position: 86
Availability: 1
Price group: 14
33,97 R*
Recommended retail price excluding GST
Coupling Half
-
part
Spare part number: 3 606 445 047
Position: 83
Availability: 1
Price group: 30
351,16 R*
Recommended retail price excluding GST
Coupling Half
-
part
Spare part number: 3 606 445 047
Position: 84
Availability: 1
Price group: 30
351,16 R*
Recommended retail price excluding GST
Clamping Unit Ø6 MM
-
part
Spare part number: 3 607 030 474
Position: 90
Availability: 1
Price group: 30
335,31 R*
Recommended retail price excluding GST
Pole Shoe 230V
-
part
Spare part number: 3 607 030 475
Position: 802
Availability: 1
Price group: 39
825,22 R*
Recommended retail price excluding GST
Armature 230V
-
part
Spare part number: 3 607 030 476
Position: 803
Availability: 1
Price group: 43
1 129,57 R*
Recommended retail price excluding GST
Grinding Spindle
-
part
Spare part number: 3 607 031 667
Position: 880
Availability: 1
Price group: 47
2 103,95 R*
Recommended retail price excluding GST
Spindle Housing
-
part
Spare part number: 3 607 031 668
Position: 861
Availability: 1
Price group: 42
1 217,23 R*
Recommended retail price excluding GST
Single-Head Eng. Wrench SW19
-
part
Spare part number: 3 607 950 024
Position: 653
Availability: 1
Price group: 21
116,64 R*
Recommended retail price excluding GST
Single-Head Eng. Wrench SW13
-
Spare part number: 3 607 950 025
Position: 654
Availability: 1
Price group: 20
101,86 R*
Recommended retail price excluding GST
1
My spare part list

54 Parts found

Description
Pos. 1 | Motor Housing
3 605 108 224
-
134,94 R*
*Recommended retail price excluding GST
Pos. 3/3/13 | Ball Bearing 7X19X6
2 600 905 032
-
69,64 R*
*Recommended retail price excluding GST
Pos. 4 | Switch
1 607 200 199
-
112,17 R*
*Recommended retail price excluding GST
Pos. 6 | Grommet
1 600 703 040
-
27,86 R*
*Recommended retail price excluding GST
Pos. 7 | Fastening Clamp
1 601 302 017
-
12,19 R*
*Recommended retail price excluding GST
Pos. 9 | Manufacturer's nameplate
3 601 110 594
-
-
Pos. 16 | Brush Holder
1 601 323 025
-
48,74 R*
*Recommended retail price excluding GST
Pos. 16/17 | Spiral Spring
1 604 652 013
-
20,88 R*
*Recommended retail price excluding GST
Pos. 18 | Switch Handle
1 602 026 088
-
12,19 R*
*Recommended retail price excluding GST
Pos. 19 | Compression Spring
1 604 611 026
-
12,19 R*
*Recommended retail price excluding GST
Pos. 20 | Adjusting Slide BLACK
1 602 319 010
-
20,88 R*
*Recommended retail price excluding GST
Pos. 24 | Cover
1 605 500 227
-
27,86 R*
*Recommended retail price excluding GST
Pos. 25 | Housing Cover DARK BLUE
1 605 500 251
-
101,86 R*
*Recommended retail price excluding GST
Pos. 26 | Rubber Ring
1 600 206 036
-
20,88 R*
*Recommended retail price excluding GST
Pos. 29 | Air-Deflector Ring
1 600 591 025
-
33,97 R*
*Recommended retail price excluding GST
Pos. 47 | Torx Oval-Head Screw 4X12
2 603 490 021
-
12,19 R*
*Recommended retail price excluding GST
Pos. 48 | Lens Head Screw 3X10 ST
1 613 435 034
-
12,19 R*
*Recommended retail price excluding GST
Pos. 50 | Torx Oval-Head Screw 4X20
2 603 490 023
-
12,19 R*
*Recommended retail price excluding GST
Pos. 51 | Speed governor
1 607 233 452
-
850,83 R*
*Recommended retail price excluding GST
Pos. 53 | Torx Oval-Head Screw 4X30
2 603 490 025
-
12,19 R*
*Recommended retail price excluding GST
Pos. 62 | Retaining clip
1 600 119 011
-
20,88 R*
*Recommended retail price excluding GST
Pos. 63 | Rubber Ring
1 600 206 025
-
27,86 R*
*Recommended retail price excluding GST
Pos. 64 | O-Ring 26,0X2,0 MM
1 610 210 101
-
27,86 R*
*Recommended retail price excluding GST
Pos. 65 | Spring retaining ring DIN 472-26X1,2 MM
2 916 660 010
-
12,19 R*
*Recommended retail price excluding GST
Pos. 67 | Shim
3 600 150 011
-
20,88 R*
*Recommended retail price excluding GST
Pos. 69 | Shim 0,10 MM
1 710 102 601
-
12,19 R*
*Recommended retail price excluding GST
Pos. 70 | Intermediate Flange
3 605 700 225
-
-
Pos. 72 | groove ball bearing 8X22X7
1 600 905 032
-
46,00 R*
*Recommended retail price excluding GST
Pos. 74 | groove ball bearing 10X26X8
3 600 905 156
-
114,21 R*
*Recommended retail price excluding GST
Pos. 75 | groove ball bearing
3 600 905 157
-
114,21 R*
*Recommended retail price excluding GST
Pos. 76 | Protective Sleeve
3 605 500 194
-
134,94 R*
*Recommended retail price excluding GST
Pos. 80 | Grinding Spindle
3 603 523 070
-
778,48 R*
*Recommended retail price excluding GST
Pos. 81 | Spacer Sleeve
3 600 400 034
-
56,58 R*
*Recommended retail price excluding GST
Pos. 83 | Coupling Half
3 606 445 047
-
351,16 R*
*Recommended retail price excluding GST
Pos. 86 | Carrier
3 606 337 242
-
33,97 R*
*Recommended retail price excluding GST
Pos. 90 | Clamping Unit Ø6 MM
3 607 030 474
-
335,31 R*
*Recommended retail price excluding GST
Pos. 95 | Flange LEFTHAND THREADS
3 600 328 043
-
350,81 R*
*Recommended retail price excluding GST
Pos. 105 | Insulating Plate
1 601 008 005
-
39,17 R*
*Recommended retail price excluding GST
Pos. 107 | Insulating Part
1 600 712 030
-
20,88 R*
*Recommended retail price excluding GST
Pos. 653 | Single-Head Eng. Wrench SW19
3 607 950 024
-
116,64 R*
*Recommended retail price excluding GST
Pos. 654 | Single-Head Eng. Wrench SW13
3 607 950 025
-
101,86 R*
*Recommended retail price excluding GST
Pos. 802 | Pole Shoe 230V
3 607 030 475
-
825,22 R*
*Recommended retail price excluding GST
Pos. 803 | Armature 230V
3 607 030 476
-
1 129,57 R*
*Recommended retail price excluding GST
Pos. 805 | Power supply cord EU 4,15M 2 X 1,0MM H07 RN-F
1 607 000 392
-
350,81 R*
*Recommended retail price excluding GST
Pos. 808 | Nameplate
1 601 11A 3H3
-
31,23 R*
*Recommended retail price excluding GST
Pos. 810 | Carbon-Brush Set KOHLEBÜRSTENSATZ 10 X 1 607 014 176
1 607 000 482
-
1 230,90 R*
*Recommended retail price excluding GST
Pos. 810 | Carbon-Brush Set
1 607 014 176
-
132,75 R*
*Recommended retail price excluding GST
Pos. 815 | Parts Set
1 607 000 378
-
87,92 R*
*Recommended retail price excluding GST
Pos. 818 | Pan head screw DIN 85-AM3X6-CUZN
2 910 110 048
-
12,19 R*
*Recommended retail price excluding GST
Pos. 835 | Fan
1 606 610 129
-
27,86 R*
*Recommended retail price excluding GST
Pos. 860 | Connecting Cable
1 604 448 023
-
20,88 R*
*Recommended retail price excluding GST
Pos. 861 | Spindle Housing
3 607 031 668
-
1 217,23 R*
*Recommended retail price excluding GST
Pos. 880 | Grinding Spindle
3 607 031 667
-
2 103,95 R*
*Recommended retail price excluding GST
Pos. 890 | Round Nut
3 603 313 006
-
116,64 R*
*Recommended retail price excluding GST

* Recommended retail price excluding GST
Turn the device for 90 degrees.
3 601 B21 100
Image 1
Retaining clip
-
part
Spare part number: 1 600 119 011
Position: 62
Availability: 1
Price group: 12
20,88 R*

Recommended retail price excluding GST
Rubber Ring
-
part
Spare part number: 1 600 206 025
Position: 63
Availability: 1
Price group: 12
27,86 R*

Recommended retail price excluding GST
Rubber Ring
-
part
Spare part number: 1 600 206 036
Position: 26
Availability: 1
Price group: 11
20,88 R*

Recommended retail price excluding GST
Air-Deflector Ring
-
part
Spare part number: 1 600 591 025
Position: 29
Availability: 1
Price group: 13
33,97 R*

Recommended retail price excluding GST
Grommet
-
part
Spare part number: 1 600 703 040
Position: 6
Availability: 1
Price group: 12
27,86 R*

Recommended retail price excluding GST
Insulating Part
-
part
Spare part number: 1 600 712 030
Position: 107
Availability: 1
Price group: 11
20,88 R*

Recommended retail price excluding GST
groove ball bearing 8X22X7
-
part
Spare part number: 1 600 905 032
Position: 72
Availability: 1
Price group: 18
46,00 R*

Recommended retail price excluding GST
Insulating Plate
-
part
Spare part number: 1 601 008 005
Position: 105
Availability: 2
Price group: 14
39,17 R*

Recommended retail price excluding GST
Nameplate
-
Spare part number: 1 601 11A 3H3
Position: 808
Availability: 1
Price group: 13
31,23 R*

Recommended retail price excluding GST
Fastening Clamp
-
part
Spare part number: 1 601 302 017
Position: 7
Availability: 1
Price group: 10
12,19 R*

Recommended retail price excluding GST
Brush Holder
-
part
Spare part number: 1 601 323 025
Position: 16
Availability: 2
Price group: 15
48,74 R*

Recommended retail price excluding GST
Brush Holder
-
part
Spare part number: 1 601 323 025
Position: 16
Availability: 2
Price group: 15
48,74 R*

Recommended retail price excluding GST
Switch Handle
-
part
Spare part number: 1 602 026 088
Position: 18
Availability: 1
Price group: 10
12,19 R*

Recommended retail price excluding GST
Adjusting Slide BLACK
-
part
Spare part number: 1 602 319 010
Position: 20
Availability: 1
Price group: 11
20,88 R*

Recommended retail price excluding GST
Connecting Cable
-
part
Spare part number: 1 604 448 023
Position: 860
Availability: 1
Price group: 11
20,88 R*

Recommended retail price excluding GST
Connecting Cable
-
part
Spare part number: 1 604 448 023
Position: 860
Availability: 1
Price group: 11
20,88 R*

Recommended retail price excluding GST
Compression Spring
-
part
Spare part number: 1 604 611 026
Position: 19
Availability: 1
Price group: 10
12,19 R*

Recommended retail price excluding GST
Spiral Spring
-
part
Spare part number: 1 604 652 013
Position: 16/17
Availability: 1
Price group: 11
20,88 R*

Recommended retail price excluding GST
Spiral Spring
-
part
Spare part number: 1 604 652 013
Position: 16/17
Availability: 1
Price group: 11
20,88 R*

Recommended retail price excluding GST
Cover
-
part
Spare part number: 1 605 500 227
Position: 24
Availability: 1
Price group: 12
27,86 R*

Recommended retail price excluding GST
Housing Cover DARK BLUE
-
part
Spare part number: 1 605 500 251
Position: 25
Availability: 1
Price group: 20
101,86 R*

Recommended retail price excluding GST
Fan
-
part
Spare part number: 1 606 610 129
Position: 835
Availability: 1
Price group: 12
27,86 R*

Recommended retail price excluding GST
Parts Set
-
part
Spare part number: 1 607 000 378
Position: 815
Availability: 1
Price group: 19
87,92 R*

Recommended retail price excluding GST
Power supply cord EU 4,15M 2 X 1,0MM H07 RN-F
-
part
Spare part number: 1 607 000 392
Position: 805
Availability: 1
Price group: 29
350,81 R*

Recommended retail price excluding GST
-

Please click for futher details

Switch
-
part
Spare part number: 1 607 200 199
Position: 4
Availability: 1
Price group: 27
112,17 R*

Recommended retail price excluding GST
Switch
-
part
Spare part number: 1 607 200 199
Position: 4
Availability: 1
Price group: 27
112,17 R*

Recommended retail price excluding GST
Speed governor
-
part
Spare part number: 1 607 233 452
Position: 51
Availability: 1
Price group: 42
850,83 R*

Recommended retail price excluding GST
Speed governor
-
part
Spare part number: 1 607 233 452
Position: 51
Availability: 1
Price group: 42
850,83 R*

Recommended retail price excluding GST
Speed governor
-
part
Spare part number: 1 607 233 452
Position: 51
Availability: 1
Price group: 42
850,83 R*

Recommended retail price excluding GST
O-Ring 26,0X2,0 MM
-
part
Spare part number: 1 610 210 101
Position: 64
Availability: 1
Price group: 14
27,86 R*

Recommended retail price excluding GST
Lens Head Screw 3X10 ST
-
part
Spare part number: 1 613 435 034
Position: 48
Availability: 2
Price group: 10
12,19 R*

Recommended retail price excluding GST
Shim 0,10 MM
-
part
Spare part number: 1 710 102 601
Position: 69
Availability: 1
Price group: 11
12,19 R*

Recommended retail price excluding GST
Ball Bearing 7X19X6
-
part
Spare part number: 2 600 905 032
Position: 3/3/13
Availability: 1
Price group: 17
69,64 R*

Recommended retail price excluding GST
Torx Oval-Head Screw 4X12
-
part
Spare part number: 2 603 490 021
Position: 47
Availability: 1
Price group: 10
12,19 R*

Recommended retail price excluding GST
Torx Oval-Head Screw 4X20
-
part
Spare part number: 2 603 490 023
Position: 50
Availability: 1
Price group: 10
12,19 R*

Recommended retail price excluding GST
Torx Oval-Head Screw 4X30
-
part
Spare part number: 2 603 490 025
Position: 53
Availability: 4
Price group: 10
12,19 R*

Recommended retail price excluding GST
Pan head screw DIN 85-AM3X6-CUZN
-
part
Spare part number: 2 910 110 048
Position: 818
Availability: 1
Price group: 10
12,19 R*

Recommended retail price excluding GST
Spring retaining ring DIN 472-26X1,2 MM
-
part
Spare part number: 2 916 660 010
Position: 65
Availability: 1
Price group: 10
12,19 R*

Recommended retail price excluding GST
Shim
-
part
Spare part number: 3 600 150 011
Position: 67
Availability: 1
Price group: 11
20,88 R*

Recommended retail price excluding GST
Flange LEFTHAND THREADS
-
part
Spare part number: 3 600 328 043
Position: 95
Availability: 1
Price group: 31
350,81 R*

Recommended retail price excluding GST
Spacer Sleeve
-
part
Spare part number: 3 600 400 034
Position: 81
Availability: 1
Price group: 16
56,58 R*

Recommended retail price excluding GST
groove ball bearing 10X26X8
-
part
Spare part number: 3 600 905 156
Position: 74
Availability: 1
Price group: 24
114,21 R*

Recommended retail price excluding GST
groove ball bearing
-
part
Spare part number: 3 600 905 157
Position: 75
Availability: 1
Price group: 24
114,21 R*

Recommended retail price excluding GST
Manufacturer's nameplate
-
part
Spare part number: 3 601 110 594
Position: 9
Availability: 1
Price group: -
-

Round Nut
-
part
Spare part number: 3 603 313 006
Position: 890
Availability: 1
Price group: 22
116,64 R*

Recommended retail price excluding GST
Grinding Spindle
-
part
Spare part number: 3 603 523 070
Position: 80
Availability: 1
Price group: 36
778,48 R*

Recommended retail price excluding GST
Motor Housing
-
part
Spare part number: 3 605 108 224
Position: 1
Availability: 1
Price group: 22
134,94 R*

Recommended retail price excluding GST
Protective Sleeve
-
part
Spare part number: 3 605 500 194
Position: 76
Availability: 1
Price group: 24
134,94 R*

Recommended retail price excluding GST
Intermediate Flange
-
part
Spare part number: 3 605 700 225
Position: 70
Availability: 1
Price group: -
-

Carrier
-
part
Spare part number: 3 606 337 242
Position: 86
Availability: 1
Price group: 14
33,97 R*

Recommended retail price excluding GST
Coupling Half
-
part
Spare part number: 3 606 445 047
Position: 83
Availability: 1
Price group: 30
351,16 R*

Recommended retail price excluding GST
Coupling Half
-
part
Spare part number: 3 606 445 047
Position: 84
Availability: 1
Price group: 30
351,16 R*

Recommended retail price excluding GST
Clamping Unit Ø6 MM
-
part
Spare part number: 3 607 030 474
Position: 90
Availability: 1
Price group: 30
335,31 R*

Recommended retail price excluding GST
Pole Shoe 230V
-
part
Spare part number: 3 607 030 475
Position: 802
Availability: 1
Price group: 39
825,22 R*

Recommended retail price excluding GST
Armature 230V
-
part
Spare part number: 3 607 030 476
Position: 803
Availability: 1
Price group: 43
1 129,57 R*

Recommended retail price excluding GST
Grinding Spindle
-
part
Spare part number: 3 607 031 667
Position: 880
Availability: 1
Price group: 47
2 103,95 R*

Recommended retail price excluding GST
Spindle Housing
-
part
Spare part number: 3 607 031 668
Position: 861
Availability: 1
Price group: 42
1 217,23 R*

Recommended retail price excluding GST
Single-Head Eng. Wrench SW19
-
part
Spare part number: 3 607 950 024
Position: 653
Availability: 1
Price group: 21
116,64 R*

Recommended retail price excluding GST
Single-Head Eng. Wrench SW13
-
Spare part number: 3 607 950 025
Position: 654
Availability: 1
Price group: 20
101,86 R*

Recommended retail price excluding GST
1
Warning
A selection of part numbers is available. Please click the respective button in the spare part list
Warning
To select this item click the checkbox. Note: This position number does not appear on the illustration
Warning
No spare part listed
