Optical level
GOL26 D bare | 3 601 K68 000 | / 001 - EU
3 601 K68 000

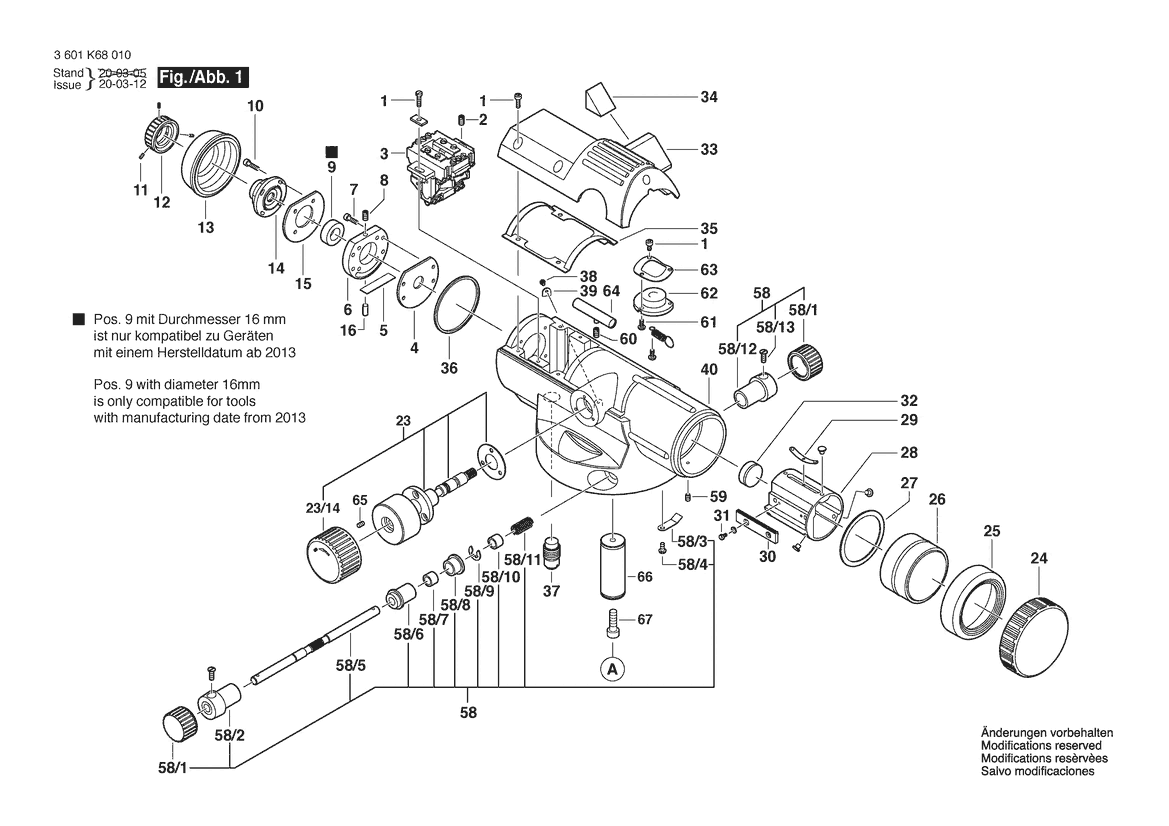

Image 1
Cross hair insert
-
part
Spare part number: 1 619 PA5 003
Position: 9
Availability: 1
Price group: 32
502,48 R*
Recommended retail price excluding GST
Hex Socket Head Cap Screw
-
part
Spare part number: 1 619 PA5 043
Position: 65
Availability: 1
Price group: -
-
Hex head tapping screw
-
part
Spare part number: 1 619 PA5 044
Position: 67
Availability: 1
Price group: 10
13,75 R*
Recommended retail price excluding GST
-

Please click for futher details

Protective Cover
-
Spare part number: 1 619 PS2 053
Position: 12
Availability: 1
Price group: -
-
Screw
-
part
Spare part number: 2 610 A02 324
Position: 1
Availability: 9
Price group: 10
12,12 R*
Recommended retail price excluding GST
Screw
-
part
Spare part number: 2 610 A02 324
Position: 1
Availability: 9
Price group: 10
12,12 R*
Recommended retail price excluding GST
Screw
-
part
Spare part number: 2 610 A02 324
Position: 1
Availability: 9
Price group: 10
12,12 R*
Recommended retail price excluding GST
Indicator
-
Spare part number: 2 610 A03 339
Position: 39
Availability: 1
Price group: -
-
Compensator
-
part
Spare part number: 2 610 A03 364
Position: 3
Availability: 1
Price group: 40
1 246,65 R*
Recommended retail price excluding GST
Lens
-
part
Spare part number: 2 610 A03 366
Position: 26
Availability: 1
Price group: 41
1 265,75 R*
Recommended retail price excluding GST
O-Ring
-
part
Spare part number: 2 610 A03 367
Position: 35
Availability: 1
Price group: -
-
Screw
-
Spare part number: 2 610 A03 368
Position: 38
Availability: 1
Price group: -
-
Screw
-
Spare part number: 2 610 A03 369
Position: 58/4
Availability: 1
Price group: -
-
Set screw
-
Spare part number: 2 610 A03 370
Position: 60
Availability: 1
Price group: -
-
Pusher
-
Spare part number: 2 610 A03 377
Position: 28
Availability: 1
Price group: 28
301,68 R*
Recommended retail price excluding GST
Reader
-
part
Spare part number: 2 610 A03 379
Position: 34
Availability: 1
Price group: 14
42,42 R*
Recommended retail price excluding GST
Screw
-
part
Spare part number: 2 610 A03 380
Position: 31
Availability: 2
Price group: -
-
Screw
-
part
Spare part number: 2 610 A03 381
Position: 58/13
Availability: 1
Price group: -
-
Screw
-
Spare part number: 2 610 A03 382
Position: 59
Availability: 1
Price group: -
-
viewfinder tube
-
part
Spare part number: 2 610 A03 383
Position: 64
Availability: 1
Price group: 15
54,11 R*
Recommended retail price excluding GST
Screw
-
part
Spare part number: 2 610 A03 384
Position: 42
Availability: 4
Price group: -
-
-

Please click for futher details

Contact strap
-
Spare part number: 2 610 A03 389
Position: 58/3
Availability: 1
Price group: -
-
Spacer
-
Spare part number: 2 610 A03 392
Position: 27
Availability: 1
Price group: -
-
Cap
-
part
Spare part number: 2 610 A03 394
Position: 24
Availability: 1
Price group: 15
54,11 R*
Recommended retail price excluding GST
mat seal
-
Spare part number: 2 610 A03 399
Position: 22
Availability: 1
Price group: -
-
Cap
-
part
Spare part number: 2 610 A03 404
Position: 23/14
Availability: 1
Price group: 20
113,70 R*
Recommended retail price excluding GST
Screw
-
part
Spare part number: 2 610 A05 614
Position: 8
Availability: 1
Price group: 11
23,85 R*
Recommended retail price excluding GST
Piston
-
Spare part number: 2 610 A05 622
Position: 16
Availability: 1
Price group: -
-
Contact strap
-
part
Spare part number: 2 610 A05 649
Position: 29
Availability: 1
Price group: -
-
Toothed rack
-
Spare part number: 2 610 A05 652
Position: 30
Availability: 1
Price group: 12
31,17 R*
Recommended retail price excluding GST
Lens
-
Spare part number: 2 610 A05 653
Position: 32
Availability: 1
Price group: 29
334,71 R*
Recommended retail price excluding GST
mat seal
-
part
Spare part number: 2 610 A05 661
Position: 4
Availability: 1
Price group: -
-
Contact strap
-
Spare part number: 2 610 A05 662
Position: 5
Availability: 2
Price group: -
-
Cap
-
part
Spare part number: 2 610 A05 677
Position: 58/1
Availability: 2
Price group: 11
18,54 R*
Recommended retail price excluding GST
Cap
-
part
Spare part number: 2 610 A05 677
Position: 58/1
Availability: 2
Price group: 11
18,54 R*
Recommended retail price excluding GST
Adjustment Knob
-
part
Spare part number: 2 610 A05 679
Position: 58/2
Availability: 1
Price group: -
-
Contact strap
-
Spare part number: 2 610 A05 680
Position: 58/11
Availability: 1
Price group: -
-
Spacer
-
Spare part number: 2 610 A05 681
Position: 58/10
Availability: 1
Price group: 10
13,75 R*
Recommended retail price excluding GST
Washer
-
Spare part number: 2 610 A05 682
Position: 58/9
Availability: 1
Price group: -
-
Contact retainer
-
Spare part number: 2 610 A05 683
Position: 58/8
Availability: 1
Price group: -
-
Spacer
-
Spare part number: 2 610 A05 684
Position: 58/7
Availability: 1
Price group: -
-
Bushing
-
part
Spare part number: 2 610 A05 685
Position: 58/6
Availability: 1
Price group: -
-
Screw
-
part
Spare part number: 2 610 A05 686
Position: 58/5
Availability: 1
Price group: 20
113,70 R*
Recommended retail price excluding GST
Adjustment Knob
-
part
Spare part number: 2 610 A05 689
Position: 58/12
Availability: 1
Price group: -
-
Contact strap
-
Spare part number: 2 610 A05 697
Position: 63
Availability: 1
Price group: 10
12,12 R*
Recommended retail price excluding GST
Screw
-
part
Spare part number: 2 610 A05 702
Position: 58
Availability: 1
Price group: 30
342,68 R*
Recommended retail price excluding GST
Screw
-
part
Spare part number: 2 610 A05 702
Position: 58
Availability: 1
Price group: 30
342,68 R*
Recommended retail price excluding GST
Screw
-
part
Spare part number: 2 610 A05 712
Position: 7
Availability: 4
Price group: -
-
Bubble Level
-
Spare part number: 2 610 A05 718
Position: 62
Availability: 1
Price group: 23
98,34 R*
Recommended retail price excluding GST
Mounting Bracket
-
part
Spare part number: 2 610 A05 723
Position: 6
Availability: 1
Price group: -
-
Set screw
-
part
Spare part number: 2 610 A05 724
Position: 11
Availability: 3
Price group: 10
10,66 R*
Recommended retail price excluding GST
Screw
-
Spare part number: 2 610 A05 726
Position: 10
Availability: 4
Price group: -
-
mat seal
-
part
Spare part number: 2 610 A05 731
Position: 15
Availability: 1
Price group: -
-
Pivot Pin
-
Spare part number: 2 610 A05 748
Position: 2
Availability: 1
Price group: -
-
Transport Lock
-
Spare part number: 2 610 A05 751
Position: 37
Availability: 1
Price group: 14
43,10 R*
Recommended retail price excluding GST
Screw
-
Spare part number: 2 610 A05 758
Position: 61
Availability: 1
Price group: 10
26,20 R*
Recommended retail price excluding GST
eyepiece
-
part
Spare part number: 2 610 A05 772
Position: 14
Availability: 1
Price group: 38
36,37 R*
Recommended retail price excluding GST
Cover
-
part
Spare part number: 2 610 A11 683
Position: 13
Availability: 1
Price group: 19
83,18 R*
Recommended retail price excluding GST
Cover Ring
-
part
Spare part number: 2 610 A11 684
Position: 25
Availability: 1
Price group: 17
51,73 R*
Recommended retail price excluding GST
Housing Cover
-
part
Spare part number: 2 610 A11 685
Position: 33
Availability: 1
Price group: 23
46,77 R*
Recommended retail price excluding GST
mat seal
-
Spare part number: 2 610 A11 904
Position: 36
Availability: 1
Price group: -
-
Telescope GOL 26 D
-
part
Spare part number: 2 610 A12 991
Position: 40
Availability: 1
Price group: 43
1 478,11 R*
Recommended retail price excluding GST

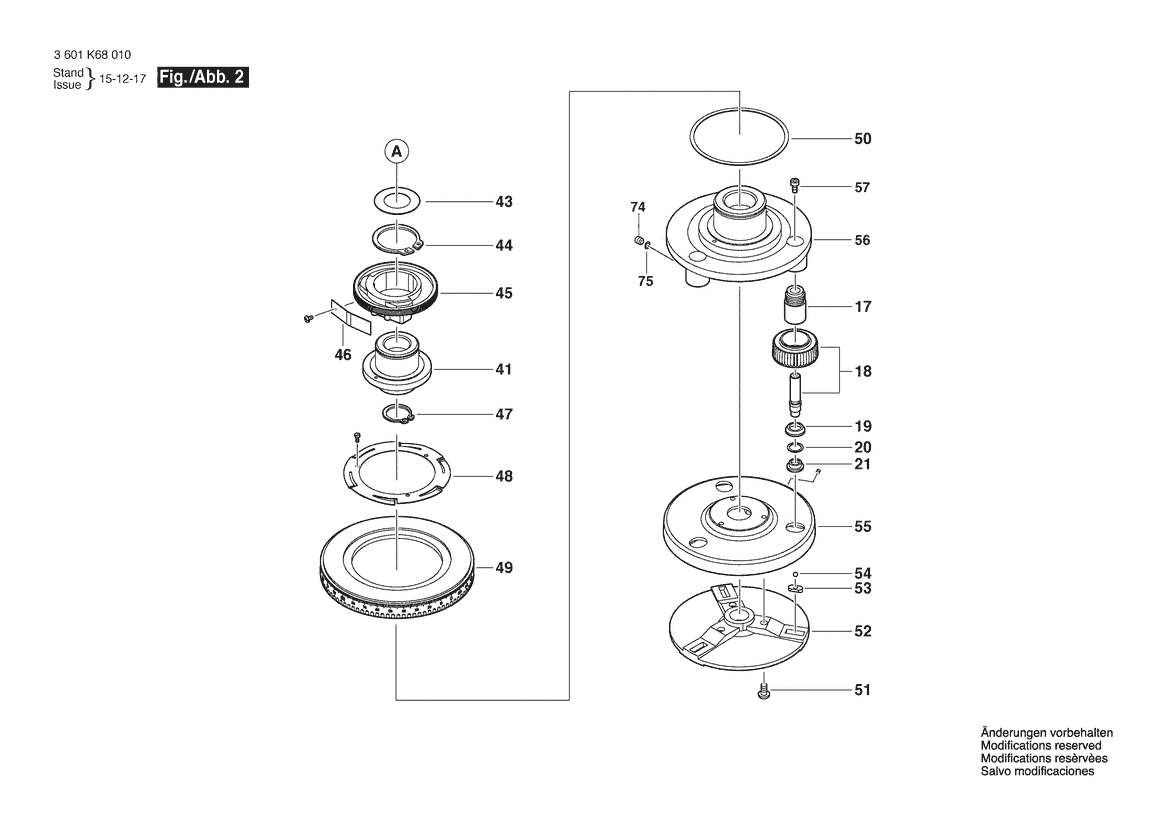

Image 1
Base Plate
-
part
Spare part number: 1 619 PA5 054
Position: 56
Availability: 1
Price group: 29
287,36 R*
Recommended retail price excluding GST
Screw
-
Spare part number: 1 619 PA5 234
Position: 74
Availability: 1
Price group: 10
11,56 R*
Recommended retail price excluding GST
Washer
-
Spare part number: 1 619 PA5 235
Position: 75
Availability: 1
Price group: 10
11,56 R*
Recommended retail price excluding GST
Screw
-
part
Spare part number: 2 610 A05 614
Position: 8
Availability: 1
Price group: 11
23,85 R*
Recommended retail price excluding GST
Adjusting Screw
-
part
Spare part number: 2 610 A05 628
Position: 18
Availability: 3
Price group: 17
51,73 R*
Recommended retail price excluding GST
Tension Cone
-
part
Spare part number: 2 610 A05 629
Position: 19
Availability: 3
Price group: 11
20,62 R*
Recommended retail price excluding GST
Washer
-
part
Spare part number: 2 610 A05 630
Position: 20
Availability: 3
Price group: 11
20,62 R*
Recommended retail price excluding GST
Nut
-
part
Spare part number: 2 610 A05 631
Position: 21
Availability: 3
Price group: 11
20,62 R*
Recommended retail price excluding GST
Spindle
-
part
Spare part number: 2 610 A05 664
Position: 41
Availability: 1
Price group: -
-
Washer
-
part
Spare part number: 2 610 A05 665
Position: 43
Availability: 1
Price group: -
-
Retaining ring
-
Spare part number: 2 610 A05 666
Position: 44
Availability: 1
Price group: -
-
Gear
-
part
Spare part number: 2 610 A05 667
Position: 45
Availability: 1
Price group: 19
85,53 R*
Recommended retail price excluding GST
Contact strap
-
Spare part number: 2 610 A05 669
Position: 46
Availability: 1
Price group: -
-
Spring retaining ring
-
Spare part number: 2 610 A05 671
Position: 47
Availability: 1
Price group: -
-
Graduated Disc
-
Spare part number: 2 610 A05 673
Position: 49
Availability: 1
Price group: -
-
Washer
-
Spare part number: 2 610 A05 675
Position: 50
Availability: 1
Price group: 17
64,77 R*
Recommended retail price excluding GST
Base Plate
-
Spare part number: 2 610 A05 691
Position: 52
Availability: 1
Price group: 22
125,75 R*
Recommended retail price excluding GST
Ball
-
Spare part number: 2 610 A05 692
Position: 54
Availability: 3
Price group: 10
12,12 R*
Recommended retail price excluding GST
Ball seat
-
part
Spare part number: 2 610 A05 693
Position: 53
Availability: 3
Price group: 10
11,56 R*
Recommended retail price excluding GST
Screw
-
part
Spare part number: 2 610 A05 694
Position: 51
Availability: 3
Price group: 20
95,12 R*
Recommended retail price excluding GST
Screw
-
Spare part number: 2 610 A05 709
Position: 17
Availability: 3
Price group: -
-
Screw
-
Spare part number: 2 610 A05 734
Position: 57
Availability: 3
Price group: 11
20,62 R*
Recommended retail price excluding GST
Retaining ring
-
Spare part number: 2 610 A05 744
Position: 48
Availability: 1
Price group: 10
12,12 R*
Recommended retail price excluding GST
Cover Plate
-
part
Spare part number: 2 610 A11 687
Position: 55
Availability: 1
Price group: 24
160,16 R*
Recommended retail price excluding GST
1
2
My spare part list

83 Parts found

Description
Pos. 1 | Screw
2 610 A02 324
-
12,12 R*
*Recommended retail price excluding GST
Pos. 2 | Pivot Pin
2 610 A05 748
-
-
Pos. 3 | Compensator
2 610 A03 364
-
1 246,65 R*
*Recommended retail price excluding GST
Pos. 4 | mat seal
2 610 A05 661
-
-
Pos. 5 | Contact strap
2 610 A05 662
-
-
Pos. 6 | Mounting Bracket
2 610 A05 723
-
-
Pos. 7 | Screw
2 610 A05 712
-
-
Pos. 8 | Screw
2 610 A05 614
-
23,85 R*
*Recommended retail price excluding GST
Pos. 9 | Cross hair insert
1 619 PA5 003
-
502,48 R*
*Recommended retail price excluding GST
Pos. 10 | Screw
2 610 A05 726
-
-
Pos. 11 | Set screw
2 610 A05 724
-
10,66 R*
*Recommended retail price excluding GST
Pos. 12 | Protective Cover
1 619 PS2 053
-
-
Pos. 13 | Cover
2 610 A11 683
-
83,18 R*
*Recommended retail price excluding GST
Pos. 14 | eyepiece
2 610 A05 772
-
36,37 R*
*Recommended retail price excluding GST
Pos. 15 | mat seal
2 610 A05 731
-
-
Pos. 16 | Piston
2 610 A05 622
-
-
Pos. 17 | Screw
2 610 A05 709
-
-
Pos. 18 | Adjusting Screw
2 610 A05 628
-
51,73 R*
*Recommended retail price excluding GST
Pos. 19 | Tension Cone
2 610 A05 629
-
20,62 R*
*Recommended retail price excluding GST
Pos. 20 | Washer
2 610 A05 630
-
20,62 R*
*Recommended retail price excluding GST
Pos. 21 | Nut
2 610 A05 631
-
20,62 R*
*Recommended retail price excluding GST
Pos. 22 | mat seal
2 610 A03 399
-
-
Pos. 23 | Focusing device 16MM
1 619 PA5 229
-
160,16 R*
*Recommended retail price excluding GST
Pos. 23 | Focusing device ALT Old
2 610 A03 385
-
380,50 R*
*Recommended retail price excluding GST
Pos. 23/14 | Cap
2 610 A03 404
-
113,70 R*
*Recommended retail price excluding GST
Pos. 24 | Cap
2 610 A03 394
-
54,11 R*
*Recommended retail price excluding GST
Pos. 25 | Cover Ring
2 610 A11 684
-
51,73 R*
*Recommended retail price excluding GST
Pos. 26 | Lens
2 610 A03 366
-
1 265,75 R*
*Recommended retail price excluding GST
Pos. 27 | Spacer
2 610 A03 392
-
-
Pos. 28 | Pusher
2 610 A03 377
-
301,68 R*
*Recommended retail price excluding GST
Pos. 29 | Contact strap
2 610 A05 649
-
-
Pos. 30 | Toothed rack
2 610 A05 652
-
31,17 R*
*Recommended retail price excluding GST
Pos. 31 | Screw
2 610 A03 380
-
-
Pos. 32 | Lens
2 610 A05 653
-
334,71 R*
*Recommended retail price excluding GST
Pos. 33 | Housing Cover
2 610 A11 685
-
46,77 R*
*Recommended retail price excluding GST
Pos. 34 | Reader
2 610 A03 379
-
42,42 R*
*Recommended retail price excluding GST
Pos. 35 | O-Ring
2 610 A03 367
-
-
Pos. 36 | mat seal
2 610 A11 904
-
-
Pos. 37 | Transport Lock
2 610 A05 751
-
43,10 R*
*Recommended retail price excluding GST
Pos. 38 | Screw
2 610 A03 368
-
-
Pos. 39 | Indicator
2 610 A03 339
-
-
Pos. 40 | Telescope GOL 26 D
2 610 A12 991
-
1 478,11 R*
*Recommended retail price excluding GST
Pos. 41 | Spindle
2 610 A05 664
-
-
Pos. 42 | Screw
2 610 A03 384
-
-
Pos. 43 | Washer
2 610 A05 665
-
-
Pos. 44 | Retaining ring
2 610 A05 666
-
-
Pos. 45 | Gear
2 610 A05 667
-
85,53 R*
*Recommended retail price excluding GST
Pos. 46 | Contact strap
2 610 A05 669
-
-
Pos. 47 | Spring retaining ring
2 610 A05 671
-
-
Pos. 48 | Retaining ring
2 610 A05 744
-
12,12 R*
*Recommended retail price excluding GST
Pos. 49 | Graduated Disc
2 610 A05 673
-
-
Pos. 50 | Washer
2 610 A05 675
-
64,77 R*
*Recommended retail price excluding GST
Pos. 51 | Screw
2 610 A05 694
-
95,12 R*
*Recommended retail price excluding GST
Pos. 52 | Base Plate
2 610 A05 691
-
125,75 R*
*Recommended retail price excluding GST
Pos. 53 | Ball seat
2 610 A05 693
-
11,56 R*
*Recommended retail price excluding GST
Pos. 54 | Ball
2 610 A05 692
-
12,12 R*
*Recommended retail price excluding GST
Pos. 55 | Cover Plate
2 610 A11 687
-
160,16 R*
*Recommended retail price excluding GST
Pos. 56 | Base Plate
1 619 PA5 054
-
287,36 R*
*Recommended retail price excluding GST
Pos. 57 | Screw
2 610 A05 734
-
20,62 R*
*Recommended retail price excluding GST
Pos. 58 | Screw
2 610 A05 702
-
342,68 R*
*Recommended retail price excluding GST
Pos. 58/1 | Cap
2 610 A05 677
-
18,54 R*
*Recommended retail price excluding GST
Pos. 58/2 | Adjustment Knob
2 610 A05 679
-
-
Pos. 58/3 | Contact strap
2 610 A03 389
-
-
Pos. 58/4 | Screw
2 610 A03 369
-
-
Pos. 58/5 | Screw
2 610 A05 686
-
113,70 R*
*Recommended retail price excluding GST
Pos. 58/6 | Bushing
2 610 A05 685
-
-
Pos. 58/7 | Spacer
2 610 A05 684
-
-
Pos. 58/8 | Contact retainer
2 610 A05 683
-
-
Pos. 58/9 | Washer
2 610 A05 682
-
-
Pos. 58/10 | Spacer
2 610 A05 681
-
13,75 R*
*Recommended retail price excluding GST
Pos. 58/11 | Contact strap
2 610 A05 680
-
-
Pos. 58/12 | Adjustment Knob
2 610 A05 689
-
-
Pos. 58/13 | Screw
2 610 A03 381
-
-
Pos. 59 | Screw
2 610 A03 382
-
-
Pos. 60 | Set screw
2 610 A03 370
-
-
Pos. 61 | Screw
2 610 A05 758
-
26,20 R*
*Recommended retail price excluding GST
Pos. 62 | Bubble Level
2 610 A05 718
-
98,34 R*
*Recommended retail price excluding GST
Pos. 63 | Contact strap
2 610 A05 697
-
12,12 R*
*Recommended retail price excluding GST
Pos. 64 | viewfinder tube
2 610 A03 383
-
54,11 R*
*Recommended retail price excluding GST
Pos. 65 | Hex Socket Head Cap Screw
1 619 PA5 043
-
-
Pos. 67 | Hex head tapping screw
1 619 PA5 044
-
13,75 R*
*Recommended retail price excluding GST
Pos. 74 | Screw
1 619 PA5 234
-
11,56 R*
*Recommended retail price excluding GST
Pos. 75 | Washer
1 619 PA5 235
-
11,56 R*
*Recommended retail price excluding GST

* Recommended retail price excluding GST
Turn the device for 90 degrees.
3 601 K68 000
Image 1
Cross hair insert
-
part
Spare part number: 1 619 PA5 003
Position: 9
Availability: 1
Price group: 32
502,48 R*

Recommended retail price excluding GST
Hex Socket Head Cap Screw
-
part
Spare part number: 1 619 PA5 043
Position: 65
Availability: 1
Price group: -
-

Hex head tapping screw
-
part
Spare part number: 1 619 PA5 044
Position: 67
Availability: 1
Price group: 10
13,75 R*

Recommended retail price excluding GST
-

Please click for futher details

Protective Cover
-
Spare part number: 1 619 PS2 053
Position: 12
Availability: 1
Price group: -
-

Screw
-
part
Spare part number: 2 610 A02 324
Position: 1
Availability: 9
Price group: 10
12,12 R*

Recommended retail price excluding GST
Screw
-
part
Spare part number: 2 610 A02 324
Position: 1
Availability: 9
Price group: 10
12,12 R*

Recommended retail price excluding GST
Screw
-
part
Spare part number: 2 610 A02 324
Position: 1
Availability: 9
Price group: 10
12,12 R*

Recommended retail price excluding GST
Indicator
-
Spare part number: 2 610 A03 339
Position: 39
Availability: 1
Price group: -
-

Compensator
-
part
Spare part number: 2 610 A03 364
Position: 3
Availability: 1
Price group: 40
1 246,65 R*

Recommended retail price excluding GST
Lens
-
part
Spare part number: 2 610 A03 366
Position: 26
Availability: 1
Price group: 41
1 265,75 R*

Recommended retail price excluding GST
O-Ring
-
part
Spare part number: 2 610 A03 367
Position: 35
Availability: 1
Price group: -
-

Screw
-
Spare part number: 2 610 A03 368
Position: 38
Availability: 1
Price group: -
-

Screw
-
Spare part number: 2 610 A03 369
Position: 58/4
Availability: 1
Price group: -
-

Set screw
-
Spare part number: 2 610 A03 370
Position: 60
Availability: 1
Price group: -
-

Pusher
-
Spare part number: 2 610 A03 377
Position: 28
Availability: 1
Price group: 28
301,68 R*

Recommended retail price excluding GST
Reader
-
part
Spare part number: 2 610 A03 379
Position: 34
Availability: 1
Price group: 14
42,42 R*

Recommended retail price excluding GST
Screw
-
part
Spare part number: 2 610 A03 380
Position: 31
Availability: 2
Price group: -
-

Screw
-
part
Spare part number: 2 610 A03 381
Position: 58/13
Availability: 1
Price group: -
-

Screw
-
Spare part number: 2 610 A03 382
Position: 59
Availability: 1
Price group: -
-

viewfinder tube
-
part
Spare part number: 2 610 A03 383
Position: 64
Availability: 1
Price group: 15
54,11 R*

Recommended retail price excluding GST
Screw
-
part
Spare part number: 2 610 A03 384
Position: 42
Availability: 4
Price group: -
-

Contact strap
-
Spare part number: 2 610 A03 389
Position: 58/3
Availability: 1
Price group: -
-

Spacer
-
Spare part number: 2 610 A03 392
Position: 27
Availability: 1
Price group: -
-

Cap
-
part
Spare part number: 2 610 A03 394
Position: 24
Availability: 1
Price group: 15
54,11 R*

Recommended retail price excluding GST
mat seal
-
Spare part number: 2 610 A03 399
Position: 22
Availability: 1
Price group: -
-

Cap
-
part
Spare part number: 2 610 A03 404
Position: 23/14
Availability: 1
Price group: 20
113,70 R*

Recommended retail price excluding GST
Screw
-
part
Spare part number: 2 610 A05 614
Position: 8
Availability: 1
Price group: 11
23,85 R*

Recommended retail price excluding GST
Piston
-
Spare part number: 2 610 A05 622
Position: 16
Availability: 1
Price group: -
-

Contact strap
-
part
Spare part number: 2 610 A05 649
Position: 29
Availability: 1
Price group: -
-

Toothed rack
-
Spare part number: 2 610 A05 652
Position: 30
Availability: 1
Price group: 12
31,17 R*

Recommended retail price excluding GST
Lens
-
Spare part number: 2 610 A05 653
Position: 32
Availability: 1
Price group: 29
334,71 R*

Recommended retail price excluding GST
mat seal
-
part
Spare part number: 2 610 A05 661
Position: 4
Availability: 1
Price group: -
-

Contact strap
-
Spare part number: 2 610 A05 662
Position: 5
Availability: 2
Price group: -
-

Cap
-
part
Spare part number: 2 610 A05 677
Position: 58/1
Availability: 2
Price group: 11
18,54 R*

Recommended retail price excluding GST
Cap
-
part
Spare part number: 2 610 A05 677
Position: 58/1
Availability: 2
Price group: 11
18,54 R*

Recommended retail price excluding GST
Adjustment Knob
-
part
Spare part number: 2 610 A05 679
Position: 58/2
Availability: 1
Price group: -
-

Contact strap
-
Spare part number: 2 610 A05 680
Position: 58/11
Availability: 1
Price group: -
-

Spacer
-
Spare part number: 2 610 A05 681
Position: 58/10
Availability: 1
Price group: 10
13,75 R*

Recommended retail price excluding GST
Washer
-
Spare part number: 2 610 A05 682
Position: 58/9
Availability: 1
Price group: -
-

Contact retainer
-
Spare part number: 2 610 A05 683
Position: 58/8
Availability: 1
Price group: -
-

Spacer
-
Spare part number: 2 610 A05 684
Position: 58/7
Availability: 1
Price group: -
-

Bushing
-
part
Spare part number: 2 610 A05 685
Position: 58/6
Availability: 1
Price group: -
-

Screw
-
part
Spare part number: 2 610 A05 686
Position: 58/5
Availability: 1
Price group: 20
113,70 R*

Recommended retail price excluding GST
Adjustment Knob
-
part
Spare part number: 2 610 A05 689
Position: 58/12
Availability: 1
Price group: -
-

Contact strap
-
Spare part number: 2 610 A05 697
Position: 63
Availability: 1
Price group: 10
12,12 R*

Recommended retail price excluding GST
Screw
-
part
Spare part number: 2 610 A05 702
Position: 58
Availability: 1
Price group: 30
342,68 R*

Recommended retail price excluding GST
Screw
-
part
Spare part number: 2 610 A05 702
Position: 58
Availability: 1
Price group: 30
342,68 R*

Recommended retail price excluding GST
Screw
-
part
Spare part number: 2 610 A05 712
Position: 7
Availability: 4
Price group: -
-

Bubble Level
-
Spare part number: 2 610 A05 718
Position: 62
Availability: 1
Price group: 23
98,34 R*

Recommended retail price excluding GST
Mounting Bracket
-
part
Spare part number: 2 610 A05 723
Position: 6
Availability: 1
Price group: -
-

Set screw
-
part
Spare part number: 2 610 A05 724
Position: 11
Availability: 3
Price group: 10
10,66 R*

Recommended retail price excluding GST
Screw
-
Spare part number: 2 610 A05 726
Position: 10
Availability: 4
Price group: -
-

mat seal
-
part
Spare part number: 2 610 A05 731
Position: 15
Availability: 1
Price group: -
-

Pivot Pin
-
Spare part number: 2 610 A05 748
Position: 2
Availability: 1
Price group: -
-

Transport Lock
-
Spare part number: 2 610 A05 751
Position: 37
Availability: 1
Price group: 14
43,10 R*

Recommended retail price excluding GST
Screw
-
Spare part number: 2 610 A05 758
Position: 61
Availability: 1
Price group: 10
26,20 R*

Recommended retail price excluding GST
eyepiece
-
part
Spare part number: 2 610 A05 772
Position: 14
Availability: 1
Price group: 38
36,37 R*

Recommended retail price excluding GST
Cover
-
part
Spare part number: 2 610 A11 683
Position: 13
Availability: 1
Price group: 19
83,18 R*

Recommended retail price excluding GST
Cover Ring
-
part
Spare part number: 2 610 A11 684
Position: 25
Availability: 1
Price group: 17
51,73 R*

Recommended retail price excluding GST
Housing Cover
-
part
Spare part number: 2 610 A11 685
Position: 33
Availability: 1
Price group: 23
46,77 R*

Recommended retail price excluding GST
mat seal
-
Spare part number: 2 610 A11 904
Position: 36
Availability: 1
Price group: -
-

Telescope GOL 26 D
-
part
Spare part number: 2 610 A12 991
Position: 40
Availability: 1
Price group: 43
1 478,11 R*

Recommended retail price excluding GST
Image 1
Base Plate
-
part
Spare part number: 1 619 PA5 054
Position: 56
Availability: 1
Price group: 29
287,36 R*

Recommended retail price excluding GST
Screw
-
Spare part number: 1 619 PA5 234
Position: 74
Availability: 1
Price group: 10
11,56 R*

Recommended retail price excluding GST
Washer
-
Spare part number: 1 619 PA5 235
Position: 75
Availability: 1
Price group: 10
11,56 R*

Recommended retail price excluding GST
Screw
-
part
Spare part number: 2 610 A05 614
Position: 8
Availability: 1
Price group: 11
23,85 R*

Recommended retail price excluding GST
Adjusting Screw
-
part
Spare part number: 2 610 A05 628
Position: 18
Availability: 3
Price group: 17
51,73 R*

Recommended retail price excluding GST
Tension Cone
-
part
Spare part number: 2 610 A05 629
Position: 19
Availability: 3
Price group: 11
20,62 R*

Recommended retail price excluding GST
Washer
-
part
Spare part number: 2 610 A05 630
Position: 20
Availability: 3
Price group: 11
20,62 R*

Recommended retail price excluding GST
Nut
-
part
Spare part number: 2 610 A05 631
Position: 21
Availability: 3
Price group: 11
20,62 R*

Recommended retail price excluding GST
Spindle
-
part
Spare part number: 2 610 A05 664
Position: 41
Availability: 1
Price group: -
-

Washer
-
part
Spare part number: 2 610 A05 665
Position: 43
Availability: 1
Price group: -
-

Retaining ring
-
Spare part number: 2 610 A05 666
Position: 44
Availability: 1
Price group: -
-

Gear
-
part
Spare part number: 2 610 A05 667
Position: 45
Availability: 1
Price group: 19
85,53 R*

Recommended retail price excluding GST
Contact strap
-
Spare part number: 2 610 A05 669
Position: 46
Availability: 1
Price group: -
-

Spring retaining ring
-
Spare part number: 2 610 A05 671
Position: 47
Availability: 1
Price group: -
-

Graduated Disc
-
Spare part number: 2 610 A05 673
Position: 49
Availability: 1
Price group: -
-

Washer
-
Spare part number: 2 610 A05 675
Position: 50
Availability: 1
Price group: 17
64,77 R*

Recommended retail price excluding GST
Base Plate
-
Spare part number: 2 610 A05 691
Position: 52
Availability: 1
Price group: 22
125,75 R*

Recommended retail price excluding GST
Ball
-
Spare part number: 2 610 A05 692
Position: 54
Availability: 3
Price group: 10
12,12 R*

Recommended retail price excluding GST
Ball seat
-
part
Spare part number: 2 610 A05 693
Position: 53
Availability: 3
Price group: 10
11,56 R*

Recommended retail price excluding GST
Screw
-
part
Spare part number: 2 610 A05 694
Position: 51
Availability: 3
Price group: 20
95,12 R*

Recommended retail price excluding GST
Screw
-
Spare part number: 2 610 A05 709
Position: 17
Availability: 3
Price group: -
-

Screw
-
Spare part number: 2 610 A05 734
Position: 57
Availability: 3
Price group: 11
20,62 R*

Recommended retail price excluding GST
Retaining ring
-
Spare part number: 2 610 A05 744
Position: 48
Availability: 1
Price group: 10
12,12 R*

Recommended retail price excluding GST
Cover Plate
-
part
Spare part number: 2 610 A11 687
Position: 55
Availability: 1
Price group: 24
160,16 R*

Recommended retail price excluding GST
1
2
Warning
A selection of part numbers is available. Please click the respective button in the spare part list
Warning
To select this item click the checkbox. Note: This position number does not appear on the illustration
Warning
No spare part listed
