Angle Grinder
GWS 22-230 LVI | 3 601 H91 C60 | 110 V / 036 - GB
3 601 H91 C60

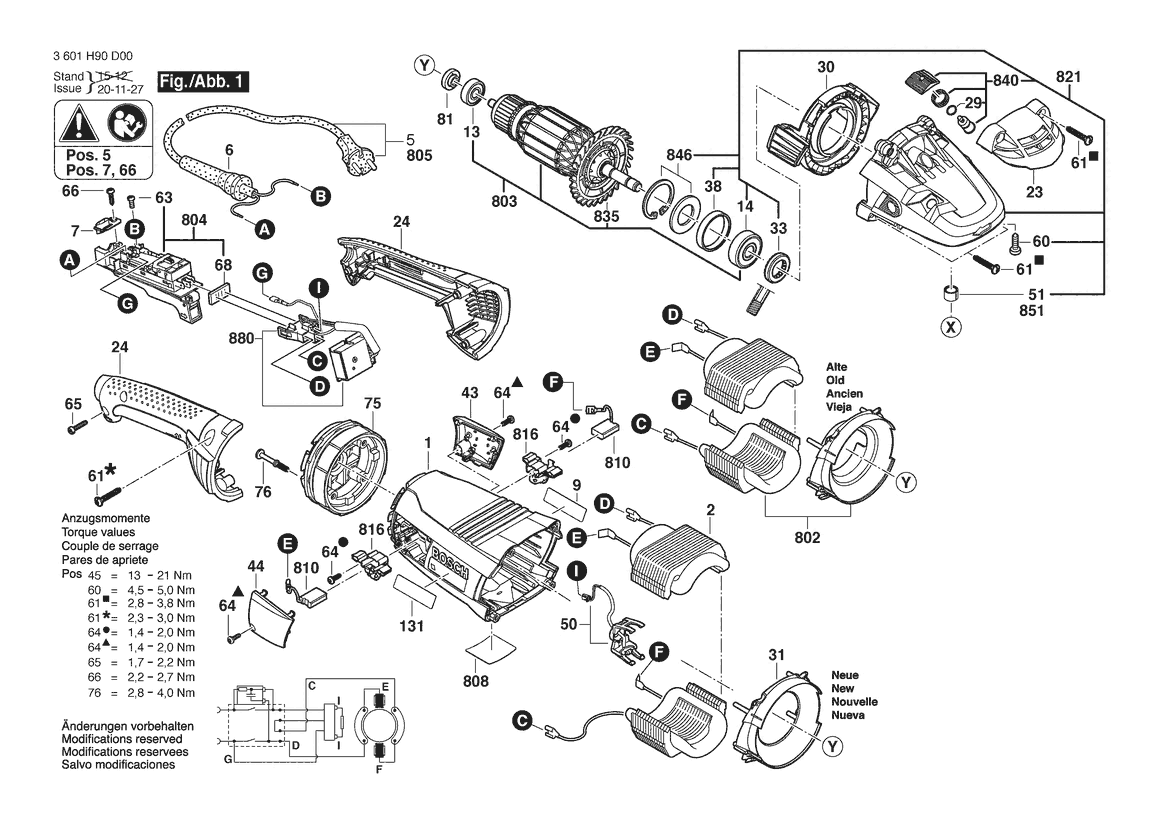

Image 1
Magnet
In stock
part
Spare part number: 1 600 190 048
Position: 81
Availability: 1
Price group: 14
£2.10*
All prices including VAT
Plain bearing Ø14 MM
In stock
part
Spare part number: 1 600 200 031
Position: 51
Availability: 1
Price group: 14
£2.10*
All prices including VAT
Rubber Ring
Out of stock
part
Spare part number: 1 600 206 037
Position: 38
Availability: 1
Price group: 10
£0.72*
All prices including VAT
O-Ring 8,0X1,0 MM
In stock
part
Spare part number: 1 600 210 045
Position: 29
Availability: 1
Price group: 11
£1.09*
All prices including VAT
Damper
In stock
part
Spare part number: 1 600 290 060
Position: 75
Availability: 1
Price group: 27
£13.13*
All prices including VAT
Rotary shaft lip seal 16 MM BLUE
Out of stock
part
Spare part number: 1 600 290 064
Position: 33
Availability: 1
Price group: 12
£1.62*
All prices including VAT
Air Distributor
Out of stock
part
Spare part number: 1 600 591 041
Position: 30
Availability: 1
Price group: 13
£1.96*
All prices including VAT
Air-Deflector Ring
Out of stock
part
Spare part number: 1 600 591 05U
Position: 31
Availability: 1
Price group: 15
£2.80*
All prices including VAT
Grommet
Discontinued
part
Spare part number: 1 600 703 037
Position: 6
Availability: 1
Price group: 12
£1.62*
All prices including VAT
groove ball bearing 9X26X8
Out of stock
part
Spare part number: 1 600 905 034
Position: 13
Availability: 1
Price group: 17
£3.97*
All prices including VAT
groove ball bearing 12X37X12
Out of stock
part
Spare part number: 1 600 905 035
Position: 14
Availability: 1
Price group: 22
£7.57*
All prices including VAT
Field assembly
Out of stock
Spare part number: 1 600 A01 ZG6
Position: 802
Availability: 1
Price group: 37
£43.84*
All prices including VAT
Sealing Plate
Out of stock
part
Spare part number: 1 601 006 011
Position: 68
Availability: 1
Price group: 13
£1.96*
All prices including VAT
Nameplate
Discontinued
Spare part number: 1 601 106 940
Position: 808
Availability: 1
Price group: 13
£1.96*
All prices including VAT
Manufacturer's nameplate GWS 22-230 LVI
Discontinued
part
Spare part number: 1 601 11C 281
Position: 9
Availability: 1
Price group: 11
£1.09*
All prices including VAT
Manufacturer's nameplate
Discontinued
part
Spare part number: 1 601 11C 2UC
Position: 131
Availability: 1
Price group: 13
£1.96*
All prices including VAT
Fastening Clamp
In stock
Spare part number: 1 601 302 019
Position: 7
Availability: 1
Price group: 11
£1.09*
All prices including VAT
Pan head screw M4X10 MM
In stock
part
Spare part number: 1 603 410 014
Position: 63
Availability: 1
Price group: 11
£1.09*
All prices including VAT
Collar Screw
Discontinued
part
Spare part number: 1 603 414 025
Position: 76
Availability: 4
Price group: -
-
Thread-forming tap. Screw TT M5X18 MM
In stock
part
Spare part number: 1 603 435 023
Position: 60
Availability: 4
Price group: 12
£1.62*
All prices including VAT
Torx Oval-Head Screw
In stock
part
Spare part number: 1 603 490 005
Position: 61
Availability: 6
Price group: 11
£1.09*
All prices including VAT
Torx Oval-Head Screw
In stock
part
Spare part number: 1 603 490 005
Position: 61
Availability: 6
Price group: 11
£1.09*
All prices including VAT
Torx Oval-Head Screw
In stock
part
Spare part number: 1 603 490 005
Position: 61
Availability: 6
Price group: 11
£1.09*
All prices including VAT
Armature
Out of stock
Spare part number: 1 604 010 BG6
Position: 803
Availability: 1
Price group: 41
£66.26*
All prices including VAT
Field 110-120V
Out of stock
Spare part number: 1 604 220 423
Position: 2
Availability: 1
Price group: 37
£43.84*
All prices including VAT
Brush Holder
In stock
part
Spare part number: 1 604 336 053
Position: 816
Availability: 2
Price group: 18
£4.19*
All prices including VAT
Brush Holder
In stock
part
Spare part number: 1 604 336 053
Position: 816
Availability: 2
Price group: 18
£4.19*
All prices including VAT
Power supply cord GB 110V 2,65M 2 X 2,5MM H07RN-F
Discontinued
Spare part number: 1 604 460 219
Position: 5
Availability: 1
Price group: -
-
Motor Housing BLUE
In stock
part
Spare part number: 1 605 108 264
Position: 1
Availability: 1
Price group: 29
£17.22*
All prices including VAT
Handle
Discontinued
part
Spare part number: 1 605 132 19K
Position: 24
Availability: 1
Price group: 26
£11.93*
All prices including VAT
Handle
Discontinued
part
Spare part number: 1 605 132 19K
Position: 24
Availability: 1
Price group: 26
£11.93*
All prices including VAT
Sealing cap BLACK
Out of stock
part
Spare part number: 1 605 500 264
Position: 43
Availability: 1
Price group: 10
£0.72*
All prices including VAT
Sealing cap BLACK
In stock
part
Spare part number: 1 605 500 265
Position: 44
Availability: 1
Price group: 10
£0.72*
All prices including VAT
Cover BLACK
In stock
part
Spare part number: 1 605 500 266
Position: 23
Availability: 1
Price group: 12
£1.62*
All prices including VAT
Fan
Out of stock
part
Spare part number: 1 606 610 150
Position: 835
Availability: 1
Price group: 13
£1.96*
All prices including VAT
Push-Button
In stock
Spare part number: 1 607 000 431
Position: 840
Availability: 1
Price group: 17
£3.97*
All prices including VAT
Retaining Washer
Out of stock
part
Spare part number: 1 607 000 432
Position: 846
Availability: 1
Price group: 17
£3.97*
All prices including VAT
On-Off Switch
In stock
part
Spare part number: 1 607 000 C16
Position: 804
Availability: 1
Price group: 33
£29.21*
All prices including VAT
Gear Housing
Out of stock
part
Spare part number: 1 607 000 C17
Position: 821
Availability: 1
Price group: 38
£48.38*
All prices including VAT
Rotational Speed Sensor
In stock
part
Spare part number: 1 607 001 007
Position: 50
Availability: 1
Price group: 21
£6.50*
All prices including VAT
Carbon-Brush Set
In stock
Spare part number: 1 607 014 194
Position: 810
Availability: 1
Price group: 32
£25.14*
All prices including VAT
Carbon-Brush Set
In stock
Spare part number: 1 607 014 194
Position: 810
Availability: 1
Price group: 32
£25.14*
All prices including VAT
Speed governor
Discontinued
Spare part number: 1 607 233 330
Position: 880
Availability: 1
Price group: 37
£43.84*
All prices including VAT
Needle-Roller Bearing Ø14 MM
In stock
part
Spare part number: 2 600 910 001
Position: 851
Availability: 1
Price group: 16
£3.19*
All prices including VAT
Torx Oval-Head Screw 4X12
In stock
part
Spare part number: 2 603 490 021
Position: 64
Availability: 4
Price group: 10
£0.72*
All prices including VAT
Torx Oval-Head Screw 4X12
In stock
part
Spare part number: 2 603 490 021
Position: 64
Availability: 4
Price group: 10
£0.72*
All prices including VAT
Torx Oval-Head Screw 4X12
In stock
part
Spare part number: 2 603 490 021
Position: 64
Availability: 4
Price group: 10
£0.72*
All prices including VAT
Torx Oval-Head Screw 4X12
In stock
part
Spare part number: 2 603 490 021
Position: 64
Availability: 4
Price group: 10
£0.72*
All prices including VAT
Torx Oval-Head Screw 4X20
In stock
part
Spare part number: 2 603 490 023
Position: 65
Availability: 2
Price group: 10
£0.72*
All prices including VAT
Tapping Screw DIN 7971-ST3,9X16-F
In stock
Spare part number: 2 910 211 019
Position: 66
Availability: 1
Price group: 10
£0.72*
All prices including VAT

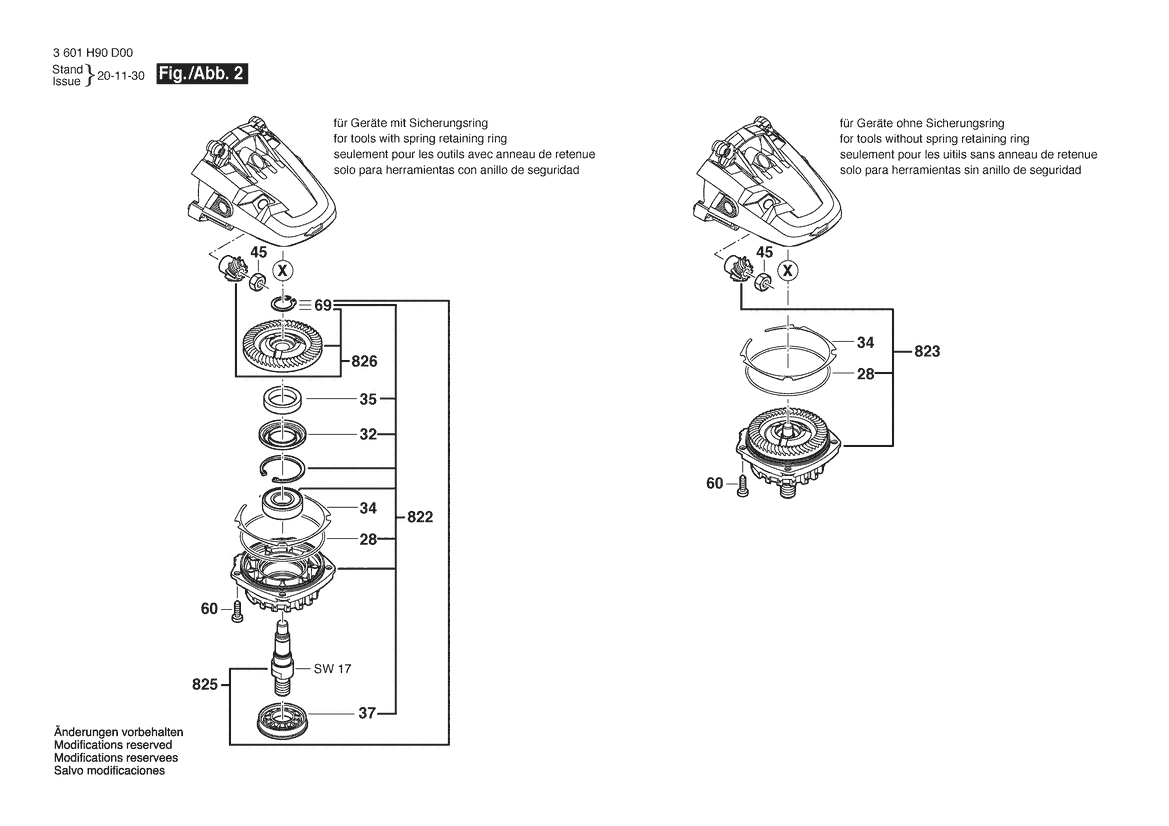

Image 1
In stock

Please click for futher details

In stock

Please click for futher details

In stock

Please click for futher details

In stock

Please click for futher details

In stock

Please click for futher details

In stock

Please click for futher details

In stock

Please click for futher details

In stock

Please click for futher details

In stock

Please click for futher details

In stock

Please click for futher details

In stock

Please click for futher details

In stock

Please click for futher details

In stock

Please click for futher details

In stock

Please click for futher details

Felt Washer
In stock
part
Spare part number: 1 600 205 034
Position: 35
Availability: 1
Price group: 11
£1.09*
All prices including VAT
O-Ring 79,0X1,78 MM
In stock
part
Spare part number: 1 600 210 033
Position: 28
Availability: 1
Price group: 11
£1.09*
All prices including VAT
O-Ring 79,0X1,78 MM
In stock
part
Spare part number: 1 600 210 033
Position: 28
Availability: 1
Price group: 11
£1.09*
All prices including VAT
Retaining snap ring
In stock
Spare part number: 1 600 290 019
Position: 32
Availability: 1
Price group: 11
£1.09*
All prices including VAT
Seal Ring BLACK
In stock
part
Spare part number: 1 600 290 036
Position: 37
Availability: 1
Price group: 12
£1.62*
All prices including VAT
Bevel Gear Set
Out of stock
part
Spare part number: 1 600 A02 4YW
Position: 826
Availability: 1
Price group: 36
£39.17*
All prices including VAT
Hex Nut M10, SW14
In stock
part
Spare part number: 1 603 300 019
Position: 45
Availability: 1
Price group: 11
£1.09*
All prices including VAT
Hex Nut M10, SW14
In stock
part
Spare part number: 1 603 300 019
Position: 45
Availability: 1
Price group: 11
£1.09*
All prices including VAT
Thread-forming tap. Screw TT M5X18 MM
In stock
part
Spare part number: 1 603 435 023
Position: 60
Availability: 4
Price group: 12
£1.62*
All prices including VAT
Thread-forming tap. Screw TT M5X18 MM
In stock
part
Spare part number: 1 603 435 023
Position: 60
Availability: 4
Price group: 12
£1.62*
All prices including VAT
Bearing Flange
Out of stock
Spare part number: 1 605 808 0EC
Position: 823
Availability: 1
Price group: 37
£43.84*
All prices including VAT
Bearing Flange
In stock
part
Spare part number: 1 607 000 CP2
Position: 822
Availability: 1
Price group: 34
£32.39*
All prices including VAT
Grinding Spindle
In stock
part
Spare part number: 1 607 000 CU5
Position: 825
Availability: 1
Price group: 25
£10.50*
All prices including VAT
Torx Oval-Head Screw 4X12
In stock
part
Spare part number: 2 603 490 021
Position: 64
Availability: 4
Price group: 10
£0.72*
All prices including VAT
Spring retaining ring
Out of stock
Spare part number: 2 916 650 905
Position: 69
Availability: 1
Price group: 10
£0.72*
All prices including VAT
Image 1
O-Ring 20,35X1,78 MM
In stock
part
Spare part number: 1 600 210 039
Position: 890
Availability: 1
Price group: 12
£1.62*
All prices including VAT
Fast Locking Flange
In stock
part
Spare part number: 1 600 A01 6PP
Position: 896
Availability: 1
Price group: 36
£39.17*
All prices including VAT

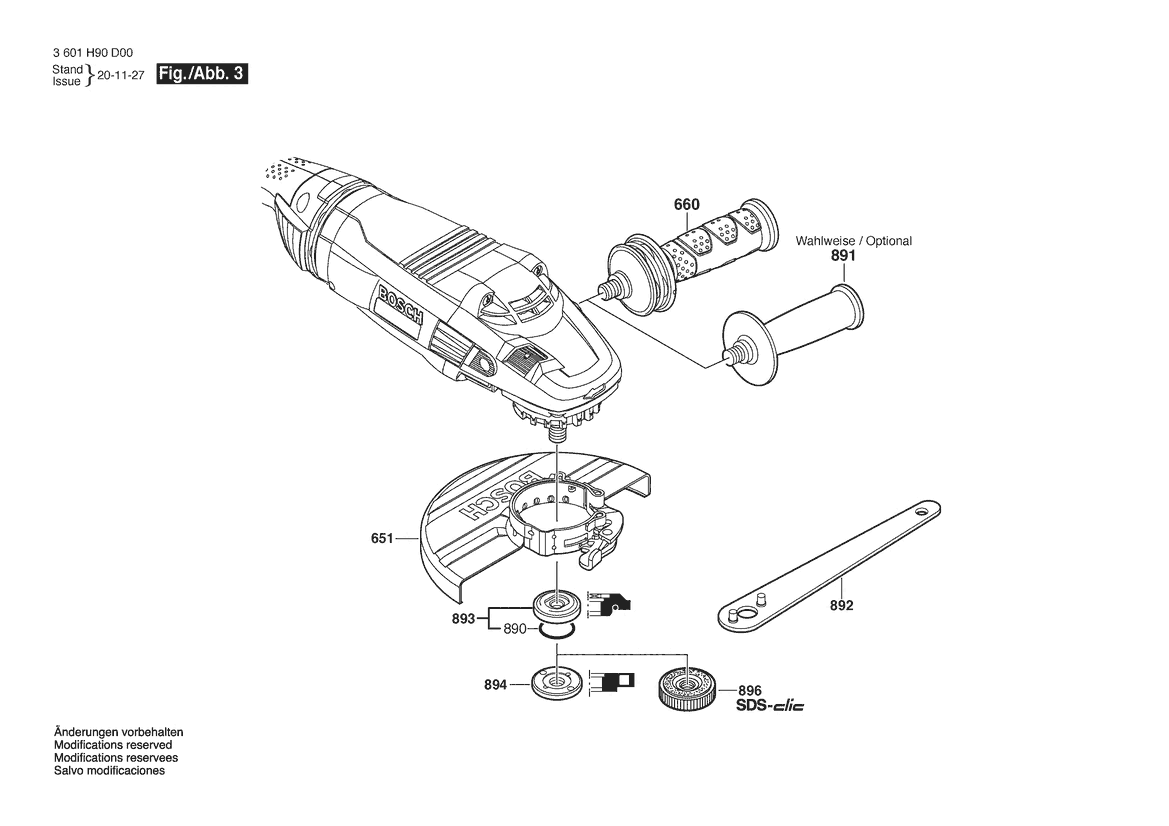

Protective Cover Ø230 MM
In stock
part
Spare part number: 1 600 A01 R96
Position: 651
Availability: 1
Price group: 35
£35.77*
All prices including VAT
Auxiliary Handle M14 BLACK
In stock
part
Spare part number: 1 602 025 051
Position: 660
Availability: 1
Price group: 32
£25.14*
All prices including VAT
Auxiliary Handle
In stock
Spare part number: 1 602 025 0A1
Position: 891
Availability: 1
Price group: 26
£11.93*
All prices including VAT
Round Nut M14
In stock
part
Spare part number: 1 603 345 043
Position: 894
Availability: 1
Price group: 21
£6.50*
All prices including VAT
Bearing Flange
Out of stock
Spare part number: 1 605 808 0EC
Position: 823
Availability: 1
Price group: 37
£43.84*
All prices including VAT
Pin-Type Face-Wrench
Discontinued
part
Spare part number: 1 607 950 061
Position: 892
Availability: 1
Price group: 16
£3.19*
All prices including VAT
Clamping Flange Ø22,3XØ42 MM
In stock
part
Spare part number: 2 605 703 014
Position: 893
Availability: 1
Price group: 20
£5.52*
All prices including VAT
1
2
3
Spare parts in cart

67 Parts found

Description
Pos. 1 | Motor Housing BLUE
1 605 108 264
In stock
£17.22*
*All prices including VAT
£43.84*
*All prices including VAT
Pos. 5 | Power supply cord GB 110V 2,65M 2 X 2,5MM H07RN-F
1 604 460 219
Discontinued
-
Pos. 6 | Grommet
1 600 703 037
Discontinued
£1.62*
*All prices including VAT
Pos. 7 | Fastening Clamp
1 601 302 019
In stock
£1.09*
*All prices including VAT
Pos. 9 | Manufacturer's nameplate GWS 22-230 LVI
1 601 11C 281
Discontinued
£1.09*
*All prices including VAT
Pos. 13 | groove ball bearing 9X26X8
1 600 905 034
£3.97*
*All prices including VAT
Pos. 14 | groove ball bearing 12X37X12
1 600 905 035
£7.57*
*All prices including VAT
Pos. 23 | Cover BLACK
1 605 500 266
In stock
£1.62*
*All prices including VAT
Pos. 24 | Handle
1 605 132 19K
Discontinued
£11.93*
*All prices including VAT
Pos. 28 | O-Ring 79,0X1,78 MM
1 600 210 033
In stock
£1.09*
*All prices including VAT
Pos. 29 | O-Ring 8,0X1,0 MM
1 600 210 045
In stock
£1.09*
*All prices including VAT
Pos. 30 | Air Distributor
1 600 591 041
£1.96*
*All prices including VAT
Pos. 31 | Air-Deflector Ring
1 600 591 05U
£2.80*
*All prices including VAT
Pos. 32 | Retaining snap ring
1 600 290 019
In stock
£1.09*
*All prices including VAT
Pos. 33 | Rotary shaft lip seal 16 MM BLUE
1 600 290 064
£1.62*
*All prices including VAT
Pos. 34 | Shim 0,15 MM THICK
1 600 190 020
In stock
£1.09*
*All prices including VAT
Pos. 34 | Shim 0,3 MM THICK
1 600 190 021
In stock
£1.96*
*All prices including VAT
Pos. 34 | Shim 0,1 MM THICK
1 600 190 022
In stock
£1.09*
*All prices including VAT
Pos. 34 | Shim 0,2 MM THICK
1 600 190 037
In stock
£0.72*
*All prices including VAT
Pos. 34 | Shim 0,25 MM THICK
1 600 190 038
In stock
£0.72*
*All prices including VAT
Pos. 34 | Shim 0,35 MM THICK
1 600 190 039
In stock
£0.72*
*All prices including VAT
Pos. 34 | Shim 0,4 MM THICK
1 600 190 040
In stock
£0.72*
*All prices including VAT
Pos. 35 | Felt Washer
1 600 205 034
In stock
£1.09*
*All prices including VAT
Pos. 37 | Seal Ring BLACK
1 600 290 036
In stock
£1.62*
*All prices including VAT
£0.72*
*All prices including VAT
Pos. 43 | Sealing cap BLACK
1 605 500 264
£0.72*
*All prices including VAT
Pos. 44 | Sealing cap BLACK
1 605 500 265
In stock
£0.72*
*All prices including VAT
Pos. 45 | Hex Nut M10, SW14
1 603 300 019
In stock
£1.09*
*All prices including VAT
Pos. 50 | Rotational Speed Sensor
1 607 001 007
In stock
£6.50*
*All prices including VAT
Pos. 51 | Plain bearing Ø14 MM
1 600 200 031
In stock
£2.10*
*All prices including VAT
Pos. 60 | Thread-forming tap. Screw TT M5X18 MM
1 603 435 023
In stock
£1.62*
*All prices including VAT
Pos. 61 | Torx Oval-Head Screw
1 603 490 005
In stock
£1.09*
*All prices including VAT
Pos. 63 | Pan head screw M4X10 MM
1 603 410 014
In stock
£1.09*
*All prices including VAT
Pos. 64 | Torx Oval-Head Screw 4X12
2 603 490 021
In stock
£0.72*
*All prices including VAT
Pos. 65 | Torx Oval-Head Screw 4X20
2 603 490 023
In stock
£0.72*
*All prices including VAT
Pos. 66 | Tapping Screw DIN 7971-ST3,9X16-F
2 910 211 019
In stock
£0.72*
*All prices including VAT
£1.96*
*All prices including VAT
Pos. 69 | Spring retaining ring
2 916 650 905
£0.72*
*All prices including VAT
Pos. 75 | Damper
1 600 290 060
In stock
£13.13*
*All prices including VAT
Pos. 76 | Collar Screw
1 603 414 025
Discontinued
-
Pos. 81 | Magnet
1 600 190 048
In stock
£2.10*
*All prices including VAT
Pos. 131 | Manufacturer's nameplate
1 601 11C 2UC
Discontinued
£1.96*
*All prices including VAT
Pos. 651 | Protective Cover Ø230 MM
1 600 A01 R96
In stock
£35.77*
*All prices including VAT
Pos. 660 | Auxiliary Handle M14 BLACK
1 602 025 051
In stock
£25.14*
*All prices including VAT
Pos. 802 | Field assembly
1 600 A01 ZG6
£43.84*
*All prices including VAT
£66.26*
*All prices including VAT
Pos. 804 | On-Off Switch
1 607 000 C16
In stock
£29.21*
*All prices including VAT
Pos. 808 | Nameplate
1 601 106 940
Discontinued
£1.96*
*All prices including VAT
Pos. 810 | Carbon-Brush Set
1 607 014 194
In stock
£25.14*
*All prices including VAT
Pos. 816 | Brush Holder
1 604 336 053
In stock
£4.19*
*All prices including VAT
£48.38*
*All prices including VAT
Pos. 822 | Bearing Flange
1 607 000 CP2
In stock
£32.39*
*All prices including VAT
Pos. 823 | Bearing Flange
1 605 808 0EC
£43.84*
*All prices including VAT
Pos. 825 | Grinding Spindle
1 607 000 CU5
In stock
£10.50*
*All prices including VAT
Pos. 826 | Bevel Gear Set
1 600 A02 4YW
£39.17*
*All prices including VAT
£1.96*
*All prices including VAT
Pos. 840 | Push-Button
1 607 000 431
In stock
£3.97*
*All prices including VAT
Pos. 846 | Retaining Washer
1 607 000 432
£3.97*
*All prices including VAT
Pos. 851 | Needle-Roller Bearing Ø14 MM
2 600 910 001
In stock
£3.19*
*All prices including VAT
Pos. 880 | Speed governor
1 607 233 330
Discontinued
£43.84*
*All prices including VAT
Pos. 890 | O-Ring 20,35X1,78 MM
1 600 210 039
In stock
£1.62*
*All prices including VAT
Pos. 891 | Auxiliary Handle
1 602 025 0A1
In stock
£11.93*
*All prices including VAT
Pos. 892 | Pin-Type Face-Wrench
1 607 950 061
Discontinued
£3.19*
*All prices including VAT
Pos. 893 | Clamping Flange Ø22,3XØ42 MM
2 605 703 014
In stock
£5.52*
*All prices including VAT
Pos. 894 | Round Nut M14
1 603 345 043
In stock
£6.50*
*All prices including VAT
Pos. 896 | Fast Locking Flange
1 600 A01 6PP
In stock
£39.17*
*All prices including VAT

* All prices including VAT
Turn the device for 90 degrees.
3 601 H91 C60
Image 1
Magnet
In stock
part
Spare part number: 1 600 190 048
Position: 81
Availability: 1
Price group: 14
£2.10*

All prices including VAT
Plain bearing Ø14 MM
In stock
part
Spare part number: 1 600 200 031
Position: 51
Availability: 1
Price group: 14
£2.10*

All prices including VAT
Rubber Ring
Out of stock
part
Spare part number: 1 600 206 037
Position: 38
Availability: 1
Price group: 10
£0.72*

All prices including VAT
O-Ring 8,0X1,0 MM
In stock
part
Spare part number: 1 600 210 045
Position: 29
Availability: 1
Price group: 11
£1.09*

All prices including VAT
Damper
In stock
part
Spare part number: 1 600 290 060
Position: 75
Availability: 1
Price group: 27
£13.13*

All prices including VAT
Rotary shaft lip seal 16 MM BLUE
Out of stock
part
Spare part number: 1 600 290 064
Position: 33
Availability: 1
Price group: 12
£1.62*

All prices including VAT
Air Distributor
Out of stock
part
Spare part number: 1 600 591 041
Position: 30
Availability: 1
Price group: 13
£1.96*

All prices including VAT
Air-Deflector Ring
Out of stock
part
Spare part number: 1 600 591 05U
Position: 31
Availability: 1
Price group: 15
£2.80*

All prices including VAT
Grommet
Discontinued
part
Spare part number: 1 600 703 037
Position: 6
Availability: 1
Price group: 12
£1.62*

All prices including VAT
groove ball bearing 9X26X8
Out of stock
part
Spare part number: 1 600 905 034
Position: 13
Availability: 1
Price group: 17
£3.97*

All prices including VAT
groove ball bearing 12X37X12
Out of stock
part
Spare part number: 1 600 905 035
Position: 14
Availability: 1
Price group: 22
£7.57*

All prices including VAT
Field assembly
Out of stock
Spare part number: 1 600 A01 ZG6
Position: 802
Availability: 1
Price group: 37
£43.84*

All prices including VAT
Sealing Plate
Out of stock
part
Spare part number: 1 601 006 011
Position: 68
Availability: 1
Price group: 13
£1.96*

All prices including VAT
Nameplate
Discontinued
Spare part number: 1 601 106 940
Position: 808
Availability: 1
Price group: 13
£1.96*

All prices including VAT
Manufacturer's nameplate GWS 22-230 LVI
Discontinued
part
Spare part number: 1 601 11C 281
Position: 9
Availability: 1
Price group: 11
£1.09*

All prices including VAT
Manufacturer's nameplate
Discontinued
part
Spare part number: 1 601 11C 2UC
Position: 131
Availability: 1
Price group: 13
£1.96*

All prices including VAT
Fastening Clamp
In stock
Spare part number: 1 601 302 019
Position: 7
Availability: 1
Price group: 11
£1.09*

All prices including VAT
Pan head screw M4X10 MM
In stock
part
Spare part number: 1 603 410 014
Position: 63
Availability: 1
Price group: 11
£1.09*

All prices including VAT
Collar Screw
Discontinued
part
Spare part number: 1 603 414 025
Position: 76
Availability: 4
Price group: -
-

Thread-forming tap. Screw TT M5X18 MM
In stock
part
Spare part number: 1 603 435 023
Position: 60
Availability: 4
Price group: 12
£1.62*

All prices including VAT
Torx Oval-Head Screw
In stock
part
Spare part number: 1 603 490 005
Position: 61
Availability: 6
Price group: 11
£1.09*

All prices including VAT
Torx Oval-Head Screw
In stock
part
Spare part number: 1 603 490 005
Position: 61
Availability: 6
Price group: 11
£1.09*

All prices including VAT
Torx Oval-Head Screw
In stock
part
Spare part number: 1 603 490 005
Position: 61
Availability: 6
Price group: 11
£1.09*

All prices including VAT
Armature
Out of stock
Spare part number: 1 604 010 BG6
Position: 803
Availability: 1
Price group: 41
£66.26*

All prices including VAT
Field 110-120V
Out of stock
Spare part number: 1 604 220 423
Position: 2
Availability: 1
Price group: 37
£43.84*

All prices including VAT
Brush Holder
In stock
part
Spare part number: 1 604 336 053
Position: 816
Availability: 2
Price group: 18
£4.19*

All prices including VAT
Brush Holder
In stock
part
Spare part number: 1 604 336 053
Position: 816
Availability: 2
Price group: 18
£4.19*

All prices including VAT
Power supply cord GB 110V 2,65M 2 X 2,5MM H07RN-F
Discontinued
Spare part number: 1 604 460 219
Position: 5
Availability: 1
Price group: -
-

Motor Housing BLUE
In stock
part
Spare part number: 1 605 108 264
Position: 1
Availability: 1
Price group: 29
£17.22*

All prices including VAT
Handle
Discontinued
part
Spare part number: 1 605 132 19K
Position: 24
Availability: 1
Price group: 26
£11.93*

All prices including VAT
Handle
Discontinued
part
Spare part number: 1 605 132 19K
Position: 24
Availability: 1
Price group: 26
£11.93*

All prices including VAT
Sealing cap BLACK
Out of stock
part
Spare part number: 1 605 500 264
Position: 43
Availability: 1
Price group: 10
£0.72*

All prices including VAT
Sealing cap BLACK
In stock
part
Spare part number: 1 605 500 265
Position: 44
Availability: 1
Price group: 10
£0.72*

All prices including VAT
Cover BLACK
In stock
part
Spare part number: 1 605 500 266
Position: 23
Availability: 1
Price group: 12
£1.62*

All prices including VAT
Fan
Out of stock
part
Spare part number: 1 606 610 150
Position: 835
Availability: 1
Price group: 13
£1.96*

All prices including VAT
Push-Button
In stock
Spare part number: 1 607 000 431
Position: 840
Availability: 1
Price group: 17
£3.97*

All prices including VAT
Retaining Washer
Out of stock
part
Spare part number: 1 607 000 432
Position: 846
Availability: 1
Price group: 17
£3.97*

All prices including VAT
On-Off Switch
In stock
part
Spare part number: 1 607 000 C16
Position: 804
Availability: 1
Price group: 33
£29.21*

All prices including VAT
Gear Housing
Out of stock
part
Spare part number: 1 607 000 C17
Position: 821
Availability: 1
Price group: 38
£48.38*

All prices including VAT
Rotational Speed Sensor
In stock
part
Spare part number: 1 607 001 007
Position: 50
Availability: 1
Price group: 21
£6.50*

All prices including VAT
Carbon-Brush Set
In stock
Spare part number: 1 607 014 194
Position: 810
Availability: 1
Price group: 32
£25.14*

All prices including VAT
Carbon-Brush Set
In stock
Spare part number: 1 607 014 194
Position: 810
Availability: 1
Price group: 32
£25.14*

All prices including VAT
Speed governor
Discontinued
Spare part number: 1 607 233 330
Position: 880
Availability: 1
Price group: 37
£43.84*

All prices including VAT
Needle-Roller Bearing Ø14 MM
In stock
part
Spare part number: 2 600 910 001
Position: 851
Availability: 1
Price group: 16
£3.19*

All prices including VAT
Torx Oval-Head Screw 4X12
In stock
part
Spare part number: 2 603 490 021
Position: 64
Availability: 4
Price group: 10
£0.72*

All prices including VAT
Torx Oval-Head Screw 4X12
In stock
part
Spare part number: 2 603 490 021
Position: 64
Availability: 4
Price group: 10
£0.72*

All prices including VAT
Torx Oval-Head Screw 4X12
In stock
part
Spare part number: 2 603 490 021
Position: 64
Availability: 4
Price group: 10
£0.72*

All prices including VAT
Torx Oval-Head Screw 4X12
In stock
part
Spare part number: 2 603 490 021
Position: 64
Availability: 4
Price group: 10
£0.72*

All prices including VAT
Torx Oval-Head Screw 4X20
In stock
part
Spare part number: 2 603 490 023
Position: 65
Availability: 2
Price group: 10
£0.72*

All prices including VAT
Tapping Screw DIN 7971-ST3,9X16-F
In stock
Spare part number: 2 910 211 019
Position: 66
Availability: 1
Price group: 10
£0.72*

All prices including VAT
Image 1
In stock

Please click for futher details

Felt Washer
In stock
part
Spare part number: 1 600 205 034
Position: 35
Availability: 1
Price group: 11
£1.09*

All prices including VAT
O-Ring 79,0X1,78 MM
In stock
part
Spare part number: 1 600 210 033
Position: 28
Availability: 1
Price group: 11
£1.09*

All prices including VAT
O-Ring 79,0X1,78 MM
In stock
part
Spare part number: 1 600 210 033
Position: 28
Availability: 1
Price group: 11
£1.09*

All prices including VAT
Retaining snap ring
In stock
Spare part number: 1 600 290 019
Position: 32
Availability: 1
Price group: 11
£1.09*

All prices including VAT
Seal Ring BLACK
In stock
part
Spare part number: 1 600 290 036
Position: 37
Availability: 1
Price group: 12
£1.62*

All prices including VAT
Bevel Gear Set
Out of stock
part
Spare part number: 1 600 A02 4YW
Position: 826
Availability: 1
Price group: 36
£39.17*

All prices including VAT
Hex Nut M10, SW14
In stock
part
Spare part number: 1 603 300 019
Position: 45
Availability: 1
Price group: 11
£1.09*

All prices including VAT
Hex Nut M10, SW14
In stock
part
Spare part number: 1 603 300 019
Position: 45
Availability: 1
Price group: 11
£1.09*

All prices including VAT
Thread-forming tap. Screw TT M5X18 MM
In stock
part
Spare part number: 1 603 435 023
Position: 60
Availability: 4
Price group: 12
£1.62*

All prices including VAT
Thread-forming tap. Screw TT M5X18 MM
In stock
part
Spare part number: 1 603 435 023
Position: 60
Availability: 4
Price group: 12
£1.62*

All prices including VAT
Bearing Flange
Out of stock
Spare part number: 1 605 808 0EC
Position: 823
Availability: 1
Price group: 37
£43.84*

All prices including VAT
Bearing Flange
In stock
part
Spare part number: 1 607 000 CP2
Position: 822
Availability: 1
Price group: 34
£32.39*

All prices including VAT
Grinding Spindle
In stock
part
Spare part number: 1 607 000 CU5
Position: 825
Availability: 1
Price group: 25
£10.50*

All prices including VAT
Torx Oval-Head Screw 4X12
In stock
part
Spare part number: 2 603 490 021
Position: 64
Availability: 4
Price group: 10
£0.72*

All prices including VAT
Spring retaining ring
Out of stock
Spare part number: 2 916 650 905
Position: 69
Availability: 1
Price group: 10
£0.72*

All prices including VAT
Image 1
O-Ring 20,35X1,78 MM
In stock
part
Spare part number: 1 600 210 039
Position: 890
Availability: 1
Price group: 12
£1.62*

All prices including VAT
Fast Locking Flange
In stock
part
Spare part number: 1 600 A01 6PP
Position: 896
Availability: 1
Price group: 36
£39.17*

All prices including VAT
Protective Cover Ø230 MM
In stock
part
Spare part number: 1 600 A01 R96
Position: 651
Availability: 1
Price group: 35
£35.77*

All prices including VAT
Auxiliary Handle M14 BLACK
In stock
part
Spare part number: 1 602 025 051
Position: 660
Availability: 1
Price group: 32
£25.14*

All prices including VAT
Auxiliary Handle
In stock
Spare part number: 1 602 025 0A1
Position: 891
Availability: 1
Price group: 26
£11.93*

All prices including VAT
Round Nut M14
In stock
part
Spare part number: 1 603 345 043
Position: 894
Availability: 1
Price group: 21
£6.50*

All prices including VAT
Bearing Flange
Out of stock
Spare part number: 1 605 808 0EC
Position: 823
Availability: 1
Price group: 37
£43.84*

All prices including VAT
Pin-Type Face-Wrench
Discontinued
part
Spare part number: 1 607 950 061
Position: 892
Availability: 1
Price group: 16
£3.19*

All prices including VAT
Clamping Flange Ø22,3XØ42 MM
In stock
part
Spare part number: 2 605 703 014
Position: 893
Availability: 1
Price group: 20
£5.52*

All prices including VAT
1
2
3
Warning
A selection of part numbers is available. Please click the respective button in the spare part list
Warning
To select this item click the checkbox. Note: This position number does not appear on the illustration
Warning
No spare part listed
