Cordless Angle Grinder
GWS 18V-10 C | 3 601 JG3 101 | 18 V / 001 - EU
Lubrication instructions
Product information
Print drawing

To select an item please click on the position number in the illustration or select the item via the part list below the drawing
3 601 JG3 101

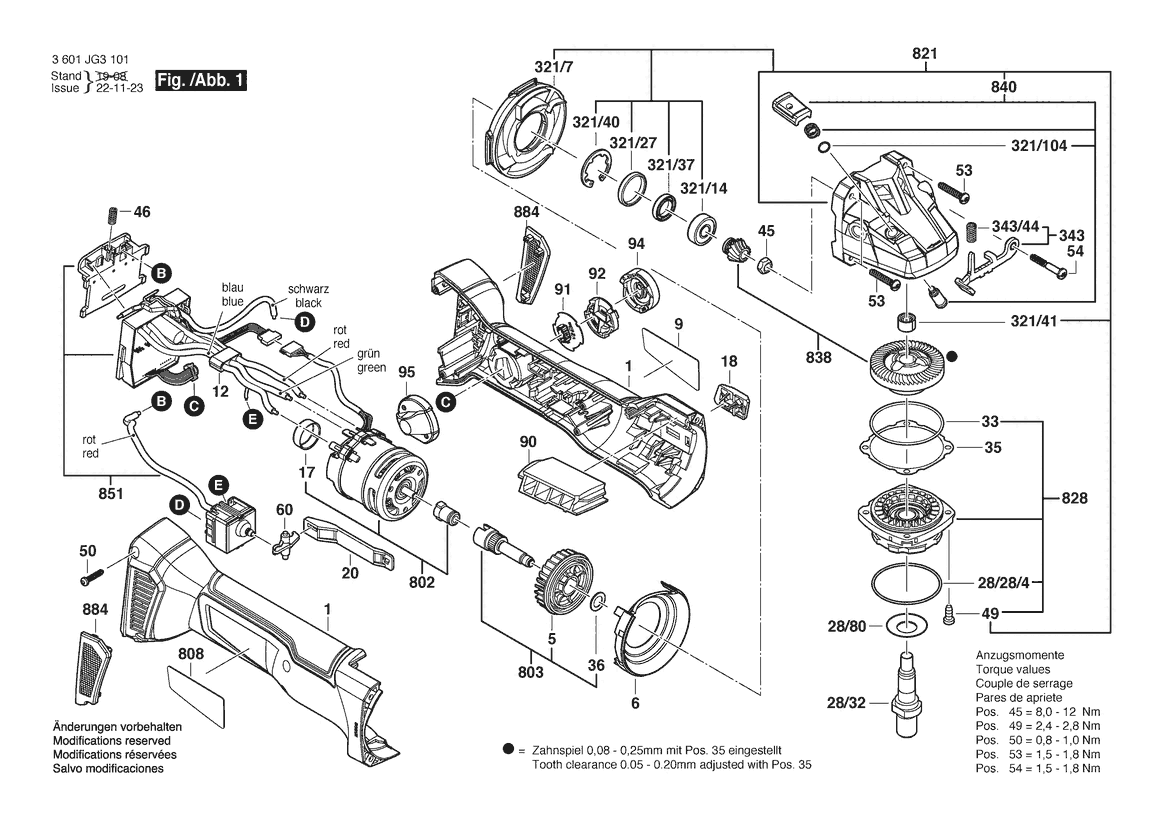

Image 1
Cover
Out of stock
Spare part number: 1 600 100 P12
Position: 17
Availability: 1
Price group: 11
£1.09*
All prices including VAT
Retaining clip
In stock
part
Spare part number: 1 600 119 011
Position: 321/40
Availability: 1
Price group: 12
£1.62*
All prices including VAT
In stock

Please click for futher details

In stock

Please click for futher details

In stock

Please click for futher details

Out of stock

Please click for futher details

Plain bearing
In stock
part
Spare part number: 1 600 200 029
Position: 321/41
Availability: 1
Price group: 16
£3.19*
All prices including VAT
Rubber Ring
In stock
part
Spare part number: 1 600 206 025
Position: 321/27
Availability: 1
Price group: 12
£1.62*
All prices including VAT
O-Ring 46,0X1,1 MM
In stock
part
Spare part number: 1 600 210 035
Position: 33
Availability: 1
Price group: 11
£1.09*
All prices including VAT
O-Ring 4,5X1,0 MM BLUE
In stock
part
Spare part number: 1 600 210 044
Position: 321/104
Availability: 1
Price group: 10
£0.72*
All prices including VAT
Air Distributor
Out of stock
part
Spare part number: 1 600 591 05N
Position: 321/7
Availability: 1
Price group: 12
£1.62*
All prices including VAT
Air-Deflector Ring
Out of stock
part
Spare part number: 1 600 591 065
Position: 6
Availability: 1
Price group: 13
£1.96*
All prices including VAT
groove ball bearing 8X22X7
In stock
part
Spare part number: 1 600 905 032
Position: 321/14
Availability: 1
Price group: 18
£4.19*
All prices including VAT
Cover Panel
In stock
Spare part number: 1 600 A00 M53
Position: 92
Availability: 1
Price group: 10
£0.72*
All prices including VAT
Adjusting Slide
In stock
part
Spare part number: 1 600 A00 P14
Position: 20
Availability: 1
Price group: 11
£1.09*
All prices including VAT
Holder
Out of stock
Spare part number: 1 600 A00 P17
Position: 321/37
Availability: 1
Price group: 10
£0.72*
All prices including VAT
Reverse-Transfer Lever
Out of stock
part
Spare part number: 1 600 A00 P18
Position: 60
Availability: 1
Price group: 10
£0.72*
All prices including VAT
Cover
Out of stock
part
Spare part number: 1 600 A00 P1B
Position: 95
Availability: 1
Price group: 10
£0.72*
All prices including VAT
Cover
Out of stock
Spare part number: 1 600 A00 P2N
Position: 90
Availability: 1
Price group: 12
£1.62*
All prices including VAT
Switch Handle
In stock
part
Spare part number: 1 600 A00 P2P
Position: 18
Availability: 1
Price group: 12
£1.62*
All prices including VAT
Ferrite
Out of stock
Spare part number: 1 600 A00 RK2
Position: 12
Availability: 1
Price group: 12
£1.62*
All prices including VAT
Nameplate
Out of stock
part
Spare part number: 1 601 11A 62M
Position: 808
Availability: 1
Price group: 13
£1.96*
All prices including VAT
Manufacturer's nameplate
Out of stock
Spare part number: 1 601 11C 2MT
Position: 9
Availability: 1
Price group: 13
£1.96*
All prices including VAT
Hex Nut M7, SW10
In stock
part
Spare part number: 1 603 300 016
Position: 45
Availability: 1
Price group: 11
£1.09*
All prices including VAT
Torx Oval-Head Screw 4X30
In stock
Spare part number: 1 603 414 026
Position: 54
Availability: 1
Price group: 10
£0.72*
All prices including VAT
Thread-forming tap. Screw
In stock
part
Spare part number: 1 603 435 071
Position: 50
Availability: 4
Price group: 10
£0.72*
All prices including VAT
Torx Oval-Head Screw
In stock
part
Spare part number: 1 603 435 078
Position: 53
Availability: 3
Price group: 10
£0.72*
All prices including VAT
Torx Oval-Head Screw
In stock
part
Spare part number: 1 603 435 078
Position: 53
Availability: 3
Price group: 10
£0.72*
All prices including VAT
Compression Spring
In stock
part
Spare part number: 1 604 611 042
Position: 343/44
Availability: 1
Price group: 11
£1.09*
All prices including VAT
Motor Housing
Out of stock
part
Spare part number: 1 605 108 2DU
Position: 1
Availability: 1
Price group: 30
£20.00*
All prices including VAT
Motor Housing
Out of stock
part
Spare part number: 1 605 108 2DU
Position: 1
Availability: 1
Price group: 30
£20.00*
All prices including VAT
Cover
Out of stock
part
Spare part number: 1 605 500 2BV
Position: 94
Availability: 1
Price group: 12
£1.62*
All prices including VAT
Fan
Out of stock
Spare part number: 1 606 610 16E
Position: 5
Availability: 1
Price group: 14
£2.10*
All prices including VAT
Catch Lever
In stock
part
Spare part number: 1 607 000 742
Position: 343
Availability: 1
Price group: 20
£5.52*
All prices including VAT
Motor
In stock
part
Spare part number: 1 607 000 CA4
Position: 802
Availability: 1
Price group: 45
£97.96*
All prices including VAT
Bevel Gear Shaft
In stock
part
Spare part number: 1 607 000 CA5
Position: 803
Availability: 1
Price group: 24
£9.64*
All prices including VAT
Gear Housing
Out of stock
Spare part number: 1 607 000 CA6
Position: 821
Availability: 1
Price group: 35
£35.77*
All prices including VAT
Gear Unit
Discontinued
Spare part number: 1 607 000 CA8
Position: 838
Availability: 1
Price group: 30
£20.00*
All prices including VAT
Filter Unit
Out of stock
part
Spare part number: 1 607 000 CA9
Position: 884
Availability: 1
Price group: 23
£8.47*
All prices including VAT
Filter Unit
Out of stock
part
Spare part number: 1 607 000 CA9
Position: 884
Availability: 1
Price group: 23
£8.47*
All prices including VAT
Electronics Module
Out of stock
part
Spare part number: 1 607 000 D5V
Position: 851
Availability: 1
Price group: 46
£107.03*
All prices including VAT
Grinding Spindle
Out of stock
part
Spare part number: 1 607 000 D6A
Position: 28/32
Availability: 1
Price group: 20
£5.52*
All prices including VAT
Bearing Flange
In stock
Spare part number: 1 607 000 D6D
Position: 828
Availability: 1
Price group: 26
£11.93*
All prices including VAT
Push-Button
In stock
part
Spare part number: 1 607 000 V41
Position: 840
Availability: 1
Price group: 16
£3.19*
All prices including VAT
Electronics Module
Out of stock
part
Spare part number: 1 607 503 438
Position: 91
Availability: 1
Price group: 26
£11.93*
All prices including VAT
Compression Spring
In stock
part
Spare part number: 1 609 280 477
Position: 46
Availability: 1
Price group: 11
£1.09*
All prices including VAT
Washer
Out of stock
part
Spare part number: 1 610 100 023
Position: 36
Availability: 1
Price group: 10
£0.72*
All prices including VAT
Cover Disc
In stock
part
Spare part number: 1 619 P09 390
Position: 28/80
Availability: 1
Price group: 12
£1.62*
All prices including VAT
Thread-forming tap. Screw M4X16
In stock
part
Spare part number: 2 914 491 410
Position: 49
Availability: 4
Price group: 10
£0.72*
All prices including VAT
O-Ring 47,0X1,5 MM
In stock
part
Spare part number: 3 600 210 109
Position: 28/28/4
Availability: 1
Price group: 12
£1.62*
All prices including VAT

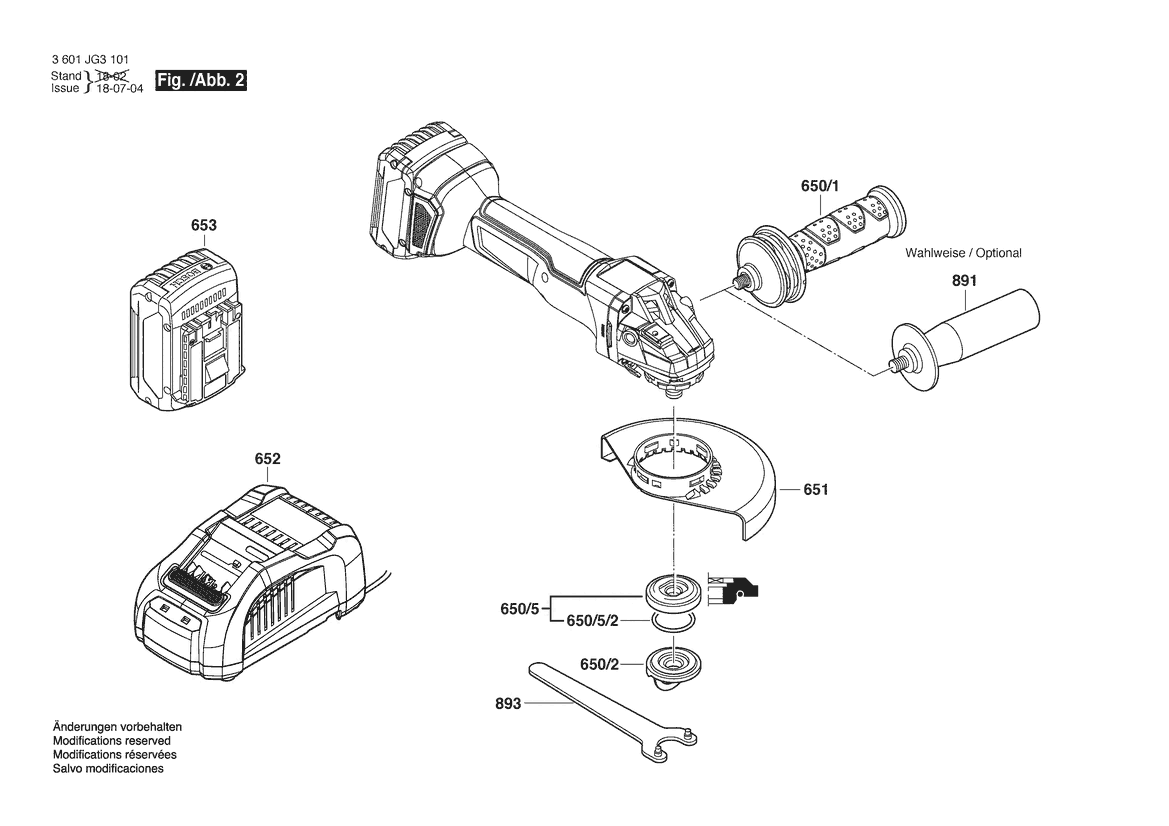

Image 1
O-Ring 20,35X1,78 MM
Discontinued
Spare part number: 1 600 210 055
Position: 650/5/2
Availability: 1
Price group: 10
£0.72*
All prices including VAT
Quick Acting Flange
In stock
part
Spare part number: 1 600 A01 6DN
Position: 650/2
Availability: 1
Price group: 26
£11.93*
All prices including VAT
Protective Cover
In stock
Spare part number: 1 600 A02 5XR
Position: 651
Availability: 1
Price group: 22
£7.57*
All prices including VAT
Auxiliary Handle
Out of stock
part
Spare part number: 1 602 025 09T
Position: 891
Availability: 1
Price group: 15
£2.80*
All prices including VAT
Auxiliary Handle
In stock
part
Spare part number: 1 602 025 0A0
Position: 650/1
Availability: 1
Price group: 23
£8.47*
All prices including VAT
Compression Spring
In stock
part
Spare part number: 1 604 611 042
Position: 343/44
Availability: 1
Price group: 11
£1.09*
All prices including VAT
Pin-Type Face-Wrench
In stock
part
Spare part number: 1 607 950 052
Position: 893
Availability: 1
Price group: 15
£2.80*
All prices including VAT
Discontinued

Please click for futher details

Charger
Out of stock
part
Spare part number: 1 617 S02 0KJ
Position: 652
Availability: 1
Price group: 42
£71.39*
All prices including VAT
Clamping Flange Ø22,3XØ42 MM
In stock
part
Spare part number: 2 605 703 014
Position: 650/5
Availability: 1
Price group: 20
£5.52*
All prices including VAT
In stock

Please click for futher details

Discontinued

Please click for futher details

1
2
Spare parts in cart

58 Parts found

Sort by
Description
Pos. 1 | Motor Housing
1 605 108 2DU
Out of stock
£20.00*
*All prices including VAT
Pos. 5 | Fan
1 606 610 16E
Out of stock
£2.10*
*All prices including VAT
Pos. 6 | Air-Deflector Ring
1 600 591 065
Out of stock
£1.96*
*All prices including VAT
Pos. 9 | Manufacturer's nameplate
1 601 11C 2MT
Out of stock
£1.96*
*All prices including VAT
Pos. 12 | Ferrite
1 600 A00 RK2
Out of stock
£1.62*
*All prices including VAT
Pos. 17 | Cover
1 600 100 P12
Out of stock
£1.09*
*All prices including VAT
Pos. 18 | Switch Handle
1 600 A00 P2P
In stock
£1.62*
*All prices including VAT
Pos. 20 | Adjusting Slide
1 600 A00 P14
In stock
£1.09*
*All prices including VAT
Pos. 28/28/4 | O-Ring 47,0X1,5 MM
3 600 210 109
In stock
£1.62*
*All prices including VAT
Pos. 28/32 | Grinding Spindle
1 607 000 D6A
Out of stock
£5.52*
*All prices including VAT
Pos. 28/80 | Cover Disc
1 619 P09 390
In stock
£1.62*
*All prices including VAT
Pos. 33 | O-Ring 46,0X1,1 MM
1 600 210 035
In stock
£1.09*
*All prices including VAT
Pos. 35 | Shim 0,1 MM THICK
1 600 136 013
In stock
£1.96*
*All prices including VAT
Pos. 35 | Shim 0,2 MM THICK
1 600 136 014
In stock
£1.96*
*All prices including VAT
Pos. 35 | Shim 0,3 MM THICK
1 600 136 015
In stock
£1.96*
*All prices including VAT
Pos. 35 | Shim 0,15 MM THICK
1 600 136 020
Out of stock
£2.80*
*All prices including VAT
Pos. 36 | Washer
1 610 100 023
Out of stock
£0.72*
*All prices including VAT
Pos. 45 | Hex Nut M7, SW10
1 603 300 016
In stock
£1.09*
*All prices including VAT
Pos. 46 | Compression Spring
1 609 280 477
In stock
£1.09*
*All prices including VAT
Pos. 49 | Thread-forming tap. Screw M4X16
2 914 491 410
In stock
£0.72*
*All prices including VAT
Pos. 50 | Thread-forming tap. Screw
1 603 435 071
In stock
£0.72*
*All prices including VAT
Pos. 53 | Torx Oval-Head Screw
1 603 435 078
In stock
£0.72*
*All prices including VAT
Pos. 54 | Torx Oval-Head Screw 4X30
1 603 414 026
In stock
£0.72*
*All prices including VAT
Pos. 60 | Reverse-Transfer Lever
1 600 A00 P18
Out of stock
£0.72*
*All prices including VAT
Pos. 90 | Cover
1 600 A00 P2N
Out of stock
£1.62*
*All prices including VAT
Pos. 91 | Electronics Module
1 607 503 438
Out of stock
£11.93*
*All prices including VAT
Pos. 92 | Cover Panel
1 600 A00 M53
In stock
£0.72*
*All prices including VAT
Pos. 94 | Cover
1 605 500 2BV
Out of stock
£1.62*
*All prices including VAT
Pos. 95 | Cover
1 600 A00 P1B
Out of stock
£0.72*
*All prices including VAT
Pos. 321/7 | Air Distributor
1 600 591 05N
Out of stock
£1.62*
*All prices including VAT
Pos. 321/14 | groove ball bearing 8X22X7
1 600 905 032
In stock
£4.19*
*All prices including VAT
Pos. 321/27 | Rubber Ring
1 600 206 025
In stock
£1.62*
*All prices including VAT
Pos. 321/37 | Holder
1 600 A00 P17
Out of stock
£0.72*
*All prices including VAT
Pos. 321/40 | Retaining clip
1 600 119 011
In stock
£1.62*
*All prices including VAT
Pos. 321/41 | Plain bearing
1 600 200 029
In stock
£3.19*
*All prices including VAT
Pos. 321/104 | O-Ring 4,5X1,0 MM BLUE
1 600 210 044
In stock
£0.72*
*All prices including VAT
Pos. 343 | Catch Lever
1 607 000 742
In stock
£5.52*
*All prices including VAT
Pos. 343/44 | Compression Spring
1 604 611 042
In stock
£1.09*
*All prices including VAT
Pos. 650/1 | Auxiliary Handle
1 602 025 0A0
In stock
£8.47*
*All prices including VAT
Pos. 650/2 | Quick Acting Flange
1 600 A01 6DN
In stock
£11.93*
*All prices including VAT
Pos. 650/5/2 | O-Ring 20,35X1,78 MM
1 600 210 055
Discontinued
£0.72*
*All prices including VAT
Pos. 650/5 | Clamping Flange Ø22,3XØ42 MM
2 605 703 014
In stock
£5.52*
*All prices including VAT
Pos. 651 | Protective Cover
1 600 A02 5XR
In stock
£7.57*
*All prices including VAT
Pos. 652 | Charger
1 617 S02 0KJ
Out of stock
£71.39*
*All prices including VAT
Pos. 653 | Battery Pack
1 607 A35 0AT
Discontinued
£227.90*
*All prices including VAT
Pos. 653 | Battery Pack
2 607 337 069
In stock
£97.96*
*All prices including VAT
Pos. 653 | Battery Pack
2 607 337 263
Discontinued
£187.16*
*All prices including VAT
Pos. 802 | Motor
1 607 000 CA4
In stock
£97.96*
*All prices including VAT
Pos. 803 | Bevel Gear Shaft
1 607 000 CA5
In stock
£9.64*
*All prices including VAT
Pos. 808 | Nameplate
1 601 11A 62M
Out of stock
£1.96*
*All prices including VAT
Pos. 821 | Gear Housing
1 607 000 CA6
Out of stock
£35.77*
*All prices including VAT
Pos. 828 | Bearing Flange
1 607 000 D6D
In stock
£11.93*
*All prices including VAT
Pos. 838 | Gear Unit
1 607 000 CA8
Discontinued
£20.00*
*All prices including VAT
Pos. 840 | Push-Button
1 607 000 V41
In stock
£3.19*
*All prices including VAT
Pos. 851 | Electronics Module
1 607 000 D5V
Out of stock
£107.03*
*All prices including VAT
Pos. 884 | Filter Unit
1 607 000 CA9
Out of stock
£8.47*
*All prices including VAT
Pos. 891 | Auxiliary Handle
1 602 025 09T
Out of stock
£2.80*
*All prices including VAT
Pos. 893 | Pin-Type Face-Wrench
1 607 950 052
In stock
£2.80*
*All prices including VAT
* All prices including VAT
Turn the device for 90 degrees.
3 601 JG3 101
Image 1
Cover
Out of stock
Spare part number: 1 600 100 P12
Position: 17
Availability: 1
Price group: 11
£1.09*

All prices including VAT
Retaining clip
In stock
part
Spare part number: 1 600 119 011
Position: 321/40
Availability: 1
Price group: 12
£1.62*

All prices including VAT
In stock

Please click for futher details

Plain bearing
In stock
part
Spare part number: 1 600 200 029
Position: 321/41
Availability: 1
Price group: 16
£3.19*

All prices including VAT
Rubber Ring
In stock
part
Spare part number: 1 600 206 025
Position: 321/27
Availability: 1
Price group: 12
£1.62*

All prices including VAT
O-Ring 46,0X1,1 MM
In stock
part
Spare part number: 1 600 210 035
Position: 33
Availability: 1
Price group: 11
£1.09*

All prices including VAT
O-Ring 4,5X1,0 MM BLUE
In stock
part
Spare part number: 1 600 210 044
Position: 321/104
Availability: 1
Price group: 10
£0.72*

All prices including VAT
Air Distributor
Out of stock
part
Spare part number: 1 600 591 05N
Position: 321/7
Availability: 1
Price group: 12
£1.62*

All prices including VAT
Air-Deflector Ring
Out of stock
part
Spare part number: 1 600 591 065
Position: 6
Availability: 1
Price group: 13
£1.96*

All prices including VAT
groove ball bearing 8X22X7
In stock
part
Spare part number: 1 600 905 032
Position: 321/14
Availability: 1
Price group: 18
£4.19*

All prices including VAT
Cover Panel
In stock
Spare part number: 1 600 A00 M53
Position: 92
Availability: 1
Price group: 10
£0.72*

All prices including VAT
Adjusting Slide
In stock
part
Spare part number: 1 600 A00 P14
Position: 20
Availability: 1
Price group: 11
£1.09*

All prices including VAT
Holder
Out of stock
Spare part number: 1 600 A00 P17
Position: 321/37
Availability: 1
Price group: 10
£0.72*

All prices including VAT
Reverse-Transfer Lever
Out of stock
part
Spare part number: 1 600 A00 P18
Position: 60
Availability: 1
Price group: 10
£0.72*

All prices including VAT
Cover
Out of stock
part
Spare part number: 1 600 A00 P1B
Position: 95
Availability: 1
Price group: 10
£0.72*

All prices including VAT
Cover
Out of stock
Spare part number: 1 600 A00 P2N
Position: 90
Availability: 1
Price group: 12
£1.62*

All prices including VAT
Switch Handle
In stock
part
Spare part number: 1 600 A00 P2P
Position: 18
Availability: 1
Price group: 12
£1.62*

All prices including VAT
Ferrite
Out of stock
Spare part number: 1 600 A00 RK2
Position: 12
Availability: 1
Price group: 12
£1.62*

All prices including VAT
Nameplate
Out of stock
part
Spare part number: 1 601 11A 62M
Position: 808
Availability: 1
Price group: 13
£1.96*

All prices including VAT
Manufacturer's nameplate
Out of stock
Spare part number: 1 601 11C 2MT
Position: 9
Availability: 1
Price group: 13
£1.96*

All prices including VAT
Hex Nut M7, SW10
In stock
part
Spare part number: 1 603 300 016
Position: 45
Availability: 1
Price group: 11
£1.09*

All prices including VAT
Torx Oval-Head Screw 4X30
In stock
Spare part number: 1 603 414 026
Position: 54
Availability: 1
Price group: 10
£0.72*

All prices including VAT
Thread-forming tap. Screw
In stock
part
Spare part number: 1 603 435 071
Position: 50
Availability: 4
Price group: 10
£0.72*

All prices including VAT
Torx Oval-Head Screw
In stock
part
Spare part number: 1 603 435 078
Position: 53
Availability: 3
Price group: 10
£0.72*

All prices including VAT
Torx Oval-Head Screw
In stock
part
Spare part number: 1 603 435 078
Position: 53
Availability: 3
Price group: 10
£0.72*

All prices including VAT
Compression Spring
In stock
part
Spare part number: 1 604 611 042
Position: 343/44
Availability: 1
Price group: 11
£1.09*

All prices including VAT
Motor Housing
Out of stock
part
Spare part number: 1 605 108 2DU
Position: 1
Availability: 1
Price group: 30
£20.00*

All prices including VAT
Motor Housing
Out of stock
part
Spare part number: 1 605 108 2DU
Position: 1
Availability: 1
Price group: 30
£20.00*

All prices including VAT
Cover
Out of stock
part
Spare part number: 1 605 500 2BV
Position: 94
Availability: 1
Price group: 12
£1.62*

All prices including VAT
Fan
Out of stock
Spare part number: 1 606 610 16E
Position: 5
Availability: 1
Price group: 14
£2.10*

All prices including VAT
Catch Lever
In stock
part
Spare part number: 1 607 000 742
Position: 343
Availability: 1
Price group: 20
£5.52*

All prices including VAT
Motor
In stock
part
Spare part number: 1 607 000 CA4
Position: 802
Availability: 1
Price group: 45
£97.96*

All prices including VAT
Bevel Gear Shaft
In stock
part
Spare part number: 1 607 000 CA5
Position: 803
Availability: 1
Price group: 24
£9.64*

All prices including VAT
Gear Housing
Out of stock
Spare part number: 1 607 000 CA6
Position: 821
Availability: 1
Price group: 35
£35.77*

All prices including VAT
Gear Unit
Discontinued
Spare part number: 1 607 000 CA8
Position: 838
Availability: 1
Price group: 30
£20.00*

All prices including VAT
Filter Unit
Out of stock
part
Spare part number: 1 607 000 CA9
Position: 884
Availability: 1
Price group: 23
£8.47*

All prices including VAT
Filter Unit
Out of stock
part
Spare part number: 1 607 000 CA9
Position: 884
Availability: 1
Price group: 23
£8.47*

All prices including VAT
Electronics Module
Out of stock
part
Spare part number: 1 607 000 D5V
Position: 851
Availability: 1
Price group: 46
£107.03*

All prices including VAT
Grinding Spindle
Out of stock
part
Spare part number: 1 607 000 D6A
Position: 28/32
Availability: 1
Price group: 20
£5.52*

All prices including VAT
Bearing Flange
In stock
Spare part number: 1 607 000 D6D
Position: 828
Availability: 1
Price group: 26
£11.93*

All prices including VAT
Push-Button
In stock
part
Spare part number: 1 607 000 V41
Position: 840
Availability: 1
Price group: 16
£3.19*

All prices including VAT
Electronics Module
Out of stock
part
Spare part number: 1 607 503 438
Position: 91
Availability: 1
Price group: 26
£11.93*

All prices including VAT
Compression Spring
In stock
part
Spare part number: 1 609 280 477
Position: 46
Availability: 1
Price group: 11
£1.09*

All prices including VAT
Washer
Out of stock
part
Spare part number: 1 610 100 023
Position: 36
Availability: 1
Price group: 10
£0.72*

All prices including VAT
Cover Disc
In stock
part
Spare part number: 1 619 P09 390
Position: 28/80
Availability: 1
Price group: 12
£1.62*

All prices including VAT
Thread-forming tap. Screw M4X16
In stock
part
Spare part number: 2 914 491 410
Position: 49
Availability: 4
Price group: 10
£0.72*

All prices including VAT
O-Ring 47,0X1,5 MM
In stock
part
Spare part number: 3 600 210 109
Position: 28/28/4
Availability: 1
Price group: 12
£1.62*

All prices including VAT
Image 1
O-Ring 20,35X1,78 MM
Discontinued
Spare part number: 1 600 210 055
Position: 650/5/2
Availability: 1
Price group: 10
£0.72*

All prices including VAT
Quick Acting Flange
In stock
part
Spare part number: 1 600 A01 6DN
Position: 650/2
Availability: 1
Price group: 26
£11.93*

All prices including VAT
Protective Cover
In stock
Spare part number: 1 600 A02 5XR
Position: 651
Availability: 1
Price group: 22
£7.57*

All prices including VAT
Auxiliary Handle
Out of stock
part
Spare part number: 1 602 025 09T
Position: 891
Availability: 1
Price group: 15
£2.80*

All prices including VAT
Auxiliary Handle
In stock
part
Spare part number: 1 602 025 0A0
Position: 650/1
Availability: 1
Price group: 23
£8.47*

All prices including VAT
Compression Spring
In stock
part
Spare part number: 1 604 611 042
Position: 343/44
Availability: 1
Price group: 11
£1.09*

All prices including VAT
Pin-Type Face-Wrench
In stock
part
Spare part number: 1 607 950 052
Position: 893
Availability: 1
Price group: 15
£2.80*

All prices including VAT
Discontinued

Please click for futher details

Charger
Out of stock
part
Spare part number: 1 617 S02 0KJ
Position: 652
Availability: 1
Price group: 42
£71.39*

All prices including VAT
Clamping Flange Ø22,3XØ42 MM
In stock
part
Spare part number: 2 605 703 014
Position: 650/5
Availability: 1
Price group: 20
£5.52*

All prices including VAT
1
2
Warning
A selection of part numbers is available. Please click the respective button in the spare part list
Warning
To select this item click the checkbox. Note: This position number does not appear on the illustration
Warning
No spare part listed
