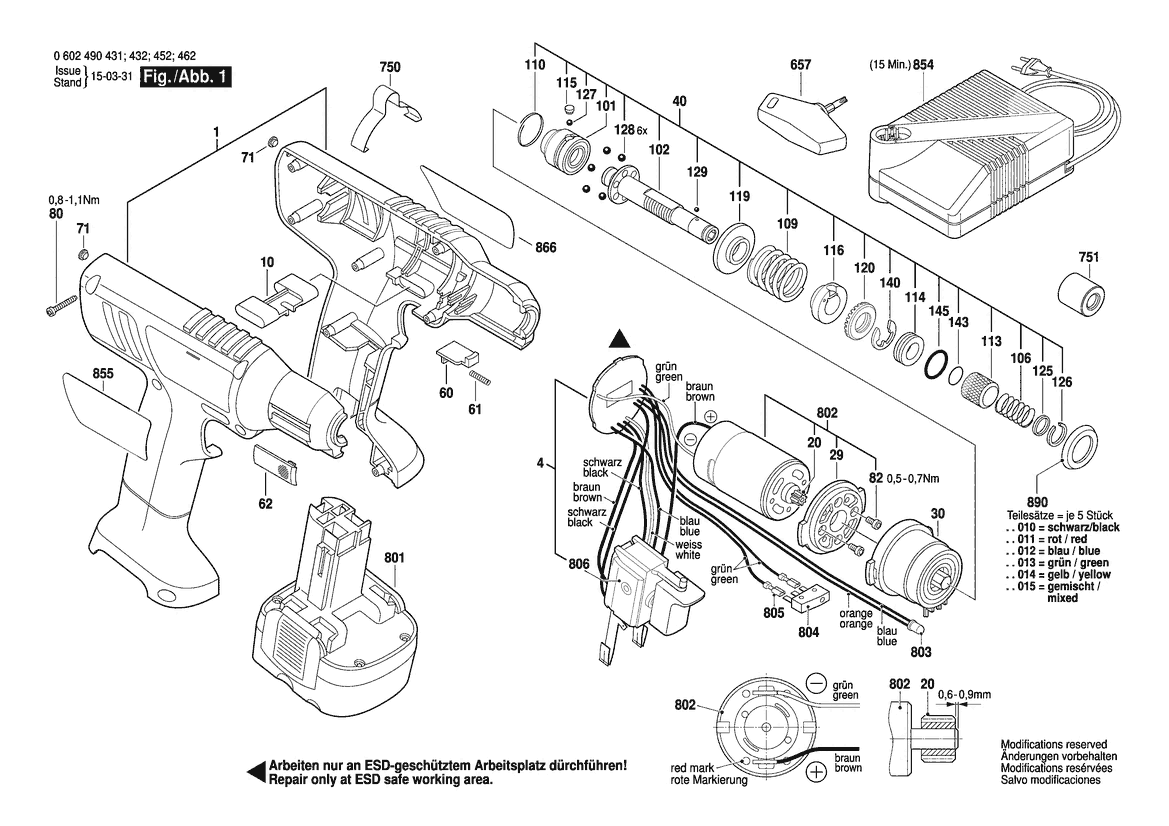

Cordless Screw Driver
EXACT 4 | 0 602 490 437 | 18 V /
0 602 490 437
Image 1
Nameplate
Out of stock
part
Spare part number: 1 607 031 29Z
Position: 855
Availability: 1
Price group: 22
£7.57*
All prices including VAT
Ball DIN 5401-2,5MM-III-ST
In stock
part
Spare part number: 1 903 230 003
Position: 129
Availability: 1
Price group: 13
£1.96*
All prices including VAT
Ball DIN 5401-3,5 MM-III-ST
In stock
part
Spare part number: 1 903 230 006
Position: 127
Availability: 10
Price group: 12
£1.62*
All prices including VAT
Ball 4,5 MM III DIN 5401-ST
Out of stock
part
Spare part number: 1 903 230 008
Position: 128
Availability: 6
Price group: 10
£0.72*
All prices including VAT
Torx SH cap screw M3X5-8.8-Z
In stock
Spare part number: 2 603 414 048
Position: 82
Availability: 2
Price group: 10
£0.72*
All prices including VAT
Torx Oval-Head Screw 3X18
In stock
part
Spare part number: 2 603 490 018
Position: 80
Availability: 8
Price group: 10
£0.72*
All prices including VAT
Intermediate Flange
Out of stock
part
Spare part number: 2 605 719 011
Position: 29
Availability: 1
Price group: 15
£2.80*
All prices including VAT
Out of stock

Please click for futher details

Out of stock

Please click for futher details

Discontinued

Please click for futher details

Discontinued

Please click for futher details

Discontinued

Please click for futher details

Discontinued

Please click for futher details

Discontinued

Please click for futher details

Battery Pack 9,6V,2,6AH,NIMH
Discontinued
part
Spare part number: 2 607 335 681
Position: 801
Availability: 1
Price group: 46
£107.03*
All prices including VAT
Locking washer DIN 6799-9-FST
In stock
part
Spare part number: 2 916 080 012
Position: 140
Availability: 1
Price group: 11
£1.09*
All prices including VAT
In stock

Please click for futher details

In stock

Please click for futher details

In stock

Please click for futher details

In stock

Please click for futher details

In stock

Please click for futher details

Out of stock

Please click for futher details

Out of stock

Please click for futher details

Setting Ring
Out of stock
Spare part number: 3 600 134 014
Position: 116
Availability: 1
Price group: 33
£29.21*
All prices including VAT
Support Disc
Discontinued
part
Spare part number: 3 600 190 036
Position: 119
Availability: 1
Price group: 21
£6.50*
All prices including VAT
Thrust Ring
In stock
Spare part number: 3 600 202 022
Position: 125
Availability: 1
Price group: 13
£1.96*
All prices including VAT
O-Ring 9,0X1,2 MM
In stock
part
Spare part number: 3 600 210 038
Position: 143
Availability: 1
Price group: 13
£1.96*
All prices including VAT
O-Ring
In stock
part
Spare part number: 3 600 210 116
Position: 145
Availability: 1
Price group: 14
£2.10*
All prices including VAT
Retaining ring
In stock
part
Spare part number: 3 600 224 006
Position: 126
Availability: 1
Price group: 14
£2.10*
All prices including VAT
Retaining ring
In stock
Spare part number: 3 600 224 053
Position: 110
Availability: 1
Price group: 11
£1.09*
All prices including VAT
Clamp Bushing
Out of stock
Spare part number: 3 600 499 025
Position: 113
Availability: 1
Price group: 16
£3.19*
All prices including VAT
Plain bearing
Out of stock
part
Spare part number: 3 600 921 001
Position: 114
Availability: 1
Price group: 22
£7.57*
All prices including VAT
Sealing plate
Out of stock
Spare part number: 3 601 023 011
Position: 115
Availability: 1
Price group: 13
£1.96*
All prices including VAT
Switch Slide
In stock
part
Spare part number: 3 601 099 003
Position: 10
Availability: 1
Price group: 14
£2.10*
All prices including VAT
Manufacturer's nameplate
Out of stock
part
Spare part number: 3 601 119 266
Position: 866
Availability: 1
Price group: 19
£4.90*
All prices including VAT
Switching Element
In stock
part
Spare part number: 3 601 923 022
Position: 60
Availability: 1
Price group: 17
£3.97*
All prices including VAT
Suspension Loop
Out of stock
part
Spare part number: 3 601 923 024
Position: 750
Availability: 1
Price group: 23
£8.47*
All prices including VAT
Pusher
In stock
part
Spare part number: 3 601 923 029
Position: 62
Availability: 1
Price group: 17
£3.97*
All prices including VAT
Output Shaft
Out of stock
part
Spare part number: 3 603 124 023
Position: 102
Availability: 1
Price group: 42
£71.39*
All prices including VAT
Catch Disk
Out of stock
part
Spare part number: 3 603 344 047
Position: 120
Availability: 1
Price group: 31
£22.02*
All prices including VAT
Light Conductor
In stock
Spare part number: 3 604 460 132
Position: 71
Availability: 2
Price group: 14
£2.10*
All prices including VAT
Light Conductor
In stock
Spare part number: 3 604 460 132
Position: 71
Availability: 2
Price group: 14
£2.10*
All prices including VAT
Compression Spring
In stock
part
Spare part number: 3 604 610 011
Position: 106
Availability: 1
Price group: 14
£2.10*
All prices including VAT
Compression Spring
In stock
part
Spare part number: 3 604 611 022
Position: 61
Availability: 1
Price group: 15
£2.80*
All prices including VAT
Compression Spring
Out of stock
Spare part number: 3 604 619 003
Position: 109
Availability: 1
Price group: 18
£4.19*
All prices including VAT
Housing Section
In stock
part
Spare part number: 3 605 105 015
Position: 1
Availability: 1
Price group: 32
£25.14*
All prices including VAT
Protective Cap 5 PIECE
In stock
Spare part number: 3 605 500 210
Position: 751
Availability: 1
Price group: 25
£10.50*
All prices including VAT
Pinion
Out of stock
part
Spare part number: 3 606 309 060
Position: 20
Availability: 1
Price group: 38
£48.38*
All prices including VAT
Pinion
Out of stock
part
Spare part number: 3 606 309 060
Position: 20
Availability: 1
Price group: 38
£48.38*
All prices including VAT
Clutch Element
Out of stock
part
Spare part number: 3 606 445 043
Position: 101
Availability: 1
Price group: 46
£107.03*
All prices including VAT
Planetary Gear Train
In stock
part
Spare part number: 3 607 030 469
Position: 30
Availability: 1
Price group: 43
£75.32*
All prices including VAT
Assembly kit
In stock
Spare part number: 3 607 031 534
Position: 40
Availability: 1
Price group: 53
£262.61*
All prices including VAT
DC motor 9,6V
In stock
part
Spare part number: 3 607 031 553
Position: 802
Availability: 1
Price group: 45
£97.96*
All prices including VAT
DC motor 9,6V
In stock
part
Spare part number: 3 607 031 553
Position: 802
Availability: 1
Price group: 45
£97.96*
All prices including VAT
DC motor 9,6V
In stock
part
Spare part number: 3 607 031 553
Position: 802
Availability: 1
Price group: 45
£97.96*
All prices including VAT
Switch
In stock
part
Spare part number: 3 607 200 083
Position: 806
Availability: 1
Price group: 40
£59.53*
All prices including VAT
Electronic Assembly
In stock
part
Spare part number: 3 607 200 106
Position: 4
Availability: 1
Price group: 52
£227.90*
All prices including VAT
Screwdriver
In stock
part
Spare part number: 3 607 950 027
Position: 657
Availability: 1
Price group: 27
£13.13*
All prices including VAT
Microswitch
In stock
part
Spare part number: 3 609 202 762
Position: 804
Availability: 1
Price group: 32
£25.14*
All prices including VAT
Light-Emitting-Diode
In stock
part
Spare part number: 3 609 202 764
Position: 803
Availability: 1
Price group: 31
£22.02*
All prices including VAT
Plug Set
Out of stock
Spare part number: 3 609 202 766
Position: 805
Availability: 1
Price group: 19
£4.90*
All prices including VAT
1
Spare parts in cart

57 Parts found

Description
Pos. 1 | Housing Section
3 605 105 015
In stock
£25.14*
*All prices including VAT
Pos. 4 | Electronic Assembly
3 607 200 106
In stock
£227.90*
*All prices including VAT
Pos. 10 | Switch Slide
3 601 099 003
In stock
£2.10*
*All prices including VAT
£48.38*
*All prices including VAT
Pos. 29 | Intermediate Flange
2 605 719 011
£2.80*
*All prices including VAT
Pos. 30 | Planetary Gear Train
3 607 030 469
In stock
£75.32*
*All prices including VAT
Pos. 40 | Assembly kit
3 607 031 534
In stock
£262.61*
*All prices including VAT
Pos. 60 | Switching Element
3 601 923 022
In stock
£3.97*
*All prices including VAT
Pos. 61 | Compression Spring
3 604 611 022
In stock
£2.80*
*All prices including VAT
Pos. 62 | Pusher
3 601 923 029
In stock
£3.97*
*All prices including VAT
Pos. 71 | Light Conductor
3 604 460 132
In stock
£2.10*
*All prices including VAT
Pos. 80 | Torx Oval-Head Screw 3X18
2 603 490 018
In stock
£0.72*
*All prices including VAT
Pos. 82 | Torx SH cap screw M3X5-8.8-Z
2 603 414 048
In stock
£0.72*
*All prices including VAT
Pos. 101 | Clutch Element
3 606 445 043
£107.03*
*All prices including VAT
£71.39*
*All prices including VAT
Pos. 106 | Compression Spring
3 604 610 011
In stock
£2.10*
*All prices including VAT
Pos. 109 | Compression Spring
3 604 619 003
£4.19*
*All prices including VAT
Pos. 110 | Retaining ring
3 600 224 053
In stock
£1.09*
*All prices including VAT
£3.19*
*All prices including VAT
£7.57*
*All prices including VAT
£1.96*
*All prices including VAT
£29.21*
*All prices including VAT
Pos. 119 | Support Disc
3 600 190 036
Discontinued
£6.50*
*All prices including VAT
£22.02*
*All prices including VAT
Pos. 125 | Thrust Ring
3 600 202 022
In stock
£1.96*
*All prices including VAT
Pos. 126 | Retaining ring
3 600 224 006
In stock
£2.10*
*All prices including VAT
Pos. 127 | Ball DIN 5401-3,5 MM-III-ST
1 903 230 006
In stock
£1.62*
*All prices including VAT
Pos. 128 | Ball 4,5 MM III DIN 5401-ST
1 903 230 008
£0.72*
*All prices including VAT
Pos. 129 | Ball DIN 5401-2,5MM-III-ST
1 903 230 003
In stock
£1.96*
*All prices including VAT
Pos. 140 | Locking washer DIN 6799-9-FST
2 916 080 012
In stock
£1.09*
*All prices including VAT
Pos. 143 | O-Ring 9,0X1,2 MM
3 600 210 038
In stock
£1.96*
*All prices including VAT
Pos. 145 | O-Ring
3 600 210 116
In stock
£2.10*
*All prices including VAT
Pos. 657 | Screwdriver
3 607 950 027
In stock
£13.13*
*All prices including VAT
Pos. 750 | Suspension Loop
3 601 923 024
£8.47*
*All prices including VAT
Pos. 751 | Protective Cap 5 PIECE
3 605 500 210
In stock
£10.50*
*All prices including VAT
Pos. 801 | Battery Pack 9,6V,2,6AH,NIMH
2 607 335 681
Discontinued
£107.03*
*All prices including VAT
Pos. 802 | DC motor 9,6V
3 607 031 553
In stock
£97.96*
*All prices including VAT
Pos. 803 | Light-Emitting-Diode
3 609 202 764
In stock
£22.02*
*All prices including VAT
Pos. 804 | Microswitch
3 609 202 762
In stock
£25.14*
*All prices including VAT
£4.90*
*All prices including VAT
Pos. 806 | Switch
3 607 200 083
In stock
£59.53*
*All prices including VAT
Pos. 854 | Fast Charger J 100/7,2-24V, 1H
2 607 224 435
£125.33*
*All prices including VAT
Pos. 854 | Fast Charger EU 230/7,2-24V, 30 MIN.
2 607 225 027
£125.33*
*All prices including VAT
Pos. 854 | Fast Charger GB 230/7,2-24V, 30 MIN.
2 607 225 029
Discontinued
£85.37*
*All prices including VAT
Pos. 854 | Fast Charger AUS 240/7,2-24V, 30 MIN.
2 607 225 031
Discontinued
£107.03*
*All prices including VAT
Pos. 854 | Fast Charger USA 120/7,2-24V, 30 MIN.
2 607 225 033
Discontinued
£107.03*
*All prices including VAT
Pos. 854 | Fast Charger SAM 115/7,2-24V, 15 MIN.
2 607 225 035
Discontinued
-
Pos. 854 | Fast Charger ROK 220/7,2-24V, 30 MIN.
2 607 225 039
Discontinued
£97.96*
*All prices including VAT
£7.57*
*All prices including VAT
Pos. 866 | Manufacturer's nameplate
3 601 119 266
£4.90*
*All prices including VAT
Pos. 890 | Parts Set 5 PCE., BLACK
3 600 106 010
In stock
£22.02*
*All prices including VAT
Pos. 890 | Parts Set 5 PCE., RED
3 600 106 011
In stock
£17.22*
*All prices including VAT
Pos. 890 | Parts Set 5 PCE,. LIGHT BLUE
3 600 106 012
In stock
£22.02*
*All prices including VAT
Pos. 890 | Parts Set 5 PCE,. LIGHT GREEN
3 600 106 013
In stock
£17.22*
*All prices including VAT
Pos. 890 | Parts Set 5 PCE., ORANGE
3 600 106 014
In stock
£22.02*
*All prices including VAT
Pos. 890 | Parts Set 5 PIECE
3 600 106 015
£25.14*
*All prices including VAT
Pos. 890 | Parts Set 5 PCE,. GREY
3 600 106 017
£22.02*
*All prices including VAT

* All prices including VAT
Turn the device for 90 degrees.
0 602 490 437
Image 1
Nameplate
Out of stock
part
Spare part number: 1 607 031 29Z
Position: 855
Availability: 1
Price group: 22
£7.57*

All prices including VAT
Ball DIN 5401-2,5MM-III-ST
In stock
part
Spare part number: 1 903 230 003
Position: 129
Availability: 1
Price group: 13
£1.96*

All prices including VAT
Ball DIN 5401-3,5 MM-III-ST
In stock
part
Spare part number: 1 903 230 006
Position: 127
Availability: 10
Price group: 12
£1.62*

All prices including VAT
Ball 4,5 MM III DIN 5401-ST
Out of stock
part
Spare part number: 1 903 230 008
Position: 128
Availability: 6
Price group: 10
£0.72*

All prices including VAT
Torx SH cap screw M3X5-8.8-Z
In stock
Spare part number: 2 603 414 048
Position: 82
Availability: 2
Price group: 10
£0.72*

All prices including VAT
Torx Oval-Head Screw 3X18
In stock
part
Spare part number: 2 603 490 018
Position: 80
Availability: 8
Price group: 10
£0.72*

All prices including VAT
Intermediate Flange
Out of stock
part
Spare part number: 2 605 719 011
Position: 29
Availability: 1
Price group: 15
£2.80*

All prices including VAT
Out of stock

Please click for futher details

Battery Pack 9,6V,2,6AH,NIMH
Discontinued
part
Spare part number: 2 607 335 681
Position: 801
Availability: 1
Price group: 46
£107.03*

All prices including VAT
Locking washer DIN 6799-9-FST
In stock
part
Spare part number: 2 916 080 012
Position: 140
Availability: 1
Price group: 11
£1.09*

All prices including VAT
In stock

Please click for futher details

Setting Ring
Out of stock
Spare part number: 3 600 134 014
Position: 116
Availability: 1
Price group: 33
£29.21*

All prices including VAT
Support Disc
Discontinued
part
Spare part number: 3 600 190 036
Position: 119
Availability: 1
Price group: 21
£6.50*

All prices including VAT
Thrust Ring
In stock
Spare part number: 3 600 202 022
Position: 125
Availability: 1
Price group: 13
£1.96*

All prices including VAT
O-Ring 9,0X1,2 MM
In stock
part
Spare part number: 3 600 210 038
Position: 143
Availability: 1
Price group: 13
£1.96*

All prices including VAT
O-Ring
In stock
part
Spare part number: 3 600 210 116
Position: 145
Availability: 1
Price group: 14
£2.10*

All prices including VAT
Retaining ring
In stock
part
Spare part number: 3 600 224 006
Position: 126
Availability: 1
Price group: 14
£2.10*

All prices including VAT
Retaining ring
In stock
Spare part number: 3 600 224 053
Position: 110
Availability: 1
Price group: 11
£1.09*

All prices including VAT
Clamp Bushing
Out of stock
Spare part number: 3 600 499 025
Position: 113
Availability: 1
Price group: 16
£3.19*

All prices including VAT
Plain bearing
Out of stock
part
Spare part number: 3 600 921 001
Position: 114
Availability: 1
Price group: 22
£7.57*

All prices including VAT
Sealing plate
Out of stock
Spare part number: 3 601 023 011
Position: 115
Availability: 1
Price group: 13
£1.96*

All prices including VAT
Switch Slide
In stock
part
Spare part number: 3 601 099 003
Position: 10
Availability: 1
Price group: 14
£2.10*

All prices including VAT
Manufacturer's nameplate
Out of stock
part
Spare part number: 3 601 119 266
Position: 866
Availability: 1
Price group: 19
£4.90*

All prices including VAT
Switching Element
In stock
part
Spare part number: 3 601 923 022
Position: 60
Availability: 1
Price group: 17
£3.97*

All prices including VAT
Suspension Loop
Out of stock
part
Spare part number: 3 601 923 024
Position: 750
Availability: 1
Price group: 23
£8.47*

All prices including VAT
Pusher
In stock
part
Spare part number: 3 601 923 029
Position: 62
Availability: 1
Price group: 17
£3.97*

All prices including VAT
Output Shaft
Out of stock
part
Spare part number: 3 603 124 023
Position: 102
Availability: 1
Price group: 42
£71.39*

All prices including VAT
Catch Disk
Out of stock
part
Spare part number: 3 603 344 047
Position: 120
Availability: 1
Price group: 31
£22.02*

All prices including VAT
Light Conductor
In stock
Spare part number: 3 604 460 132
Position: 71
Availability: 2
Price group: 14
£2.10*

All prices including VAT
Light Conductor
In stock
Spare part number: 3 604 460 132
Position: 71
Availability: 2
Price group: 14
£2.10*

All prices including VAT
Compression Spring
In stock
part
Spare part number: 3 604 610 011
Position: 106
Availability: 1
Price group: 14
£2.10*

All prices including VAT
Compression Spring
In stock
part
Spare part number: 3 604 611 022
Position: 61
Availability: 1
Price group: 15
£2.80*

All prices including VAT
Compression Spring
Out of stock
Spare part number: 3 604 619 003
Position: 109
Availability: 1
Price group: 18
£4.19*

All prices including VAT
Housing Section
In stock
part
Spare part number: 3 605 105 015
Position: 1
Availability: 1
Price group: 32
£25.14*

All prices including VAT
Protective Cap 5 PIECE
In stock
Spare part number: 3 605 500 210
Position: 751
Availability: 1
Price group: 25
£10.50*

All prices including VAT
Pinion
Out of stock
part
Spare part number: 3 606 309 060
Position: 20
Availability: 1
Price group: 38
£48.38*

All prices including VAT
Pinion
Out of stock
part
Spare part number: 3 606 309 060
Position: 20
Availability: 1
Price group: 38
£48.38*

All prices including VAT
Clutch Element
Out of stock
part
Spare part number: 3 606 445 043
Position: 101
Availability: 1
Price group: 46
£107.03*

All prices including VAT
Planetary Gear Train
In stock
part
Spare part number: 3 607 030 469
Position: 30
Availability: 1
Price group: 43
£75.32*

All prices including VAT
Assembly kit
In stock
Spare part number: 3 607 031 534
Position: 40
Availability: 1
Price group: 53
£262.61*

All prices including VAT
DC motor 9,6V
In stock
part
Spare part number: 3 607 031 553
Position: 802
Availability: 1
Price group: 45
£97.96*

All prices including VAT
DC motor 9,6V
In stock
part
Spare part number: 3 607 031 553
Position: 802
Availability: 1
Price group: 45
£97.96*

All prices including VAT
DC motor 9,6V
In stock
part
Spare part number: 3 607 031 553
Position: 802
Availability: 1
Price group: 45
£97.96*

All prices including VAT
Switch
In stock
part
Spare part number: 3 607 200 083
Position: 806
Availability: 1
Price group: 40
£59.53*

All prices including VAT
Electronic Assembly
In stock
part
Spare part number: 3 607 200 106
Position: 4
Availability: 1
Price group: 52
£227.90*

All prices including VAT
Screwdriver
In stock
part
Spare part number: 3 607 950 027
Position: 657
Availability: 1
Price group: 27
£13.13*

All prices including VAT
Microswitch
In stock
part
Spare part number: 3 609 202 762
Position: 804
Availability: 1
Price group: 32
£25.14*

All prices including VAT
Light-Emitting-Diode
In stock
part
Spare part number: 3 609 202 764
Position: 803
Availability: 1
Price group: 31
£22.02*

All prices including VAT
Plug Set
Out of stock
Spare part number: 3 609 202 766
Position: 805
Availability: 1
Price group: 19
£4.90*

All prices including VAT
1
Warning
A selection of part numbers is available. Please click the respective button in the spare part list
Warning
To select this item click the checkbox. Note: This position number does not appear on the illustration
Warning
No spare part listed
