Router
GKF 12V-8 | 3 601 FB0 000 | 12 V / 001 - EU
Lubrication instructions
Product information
Print drawing

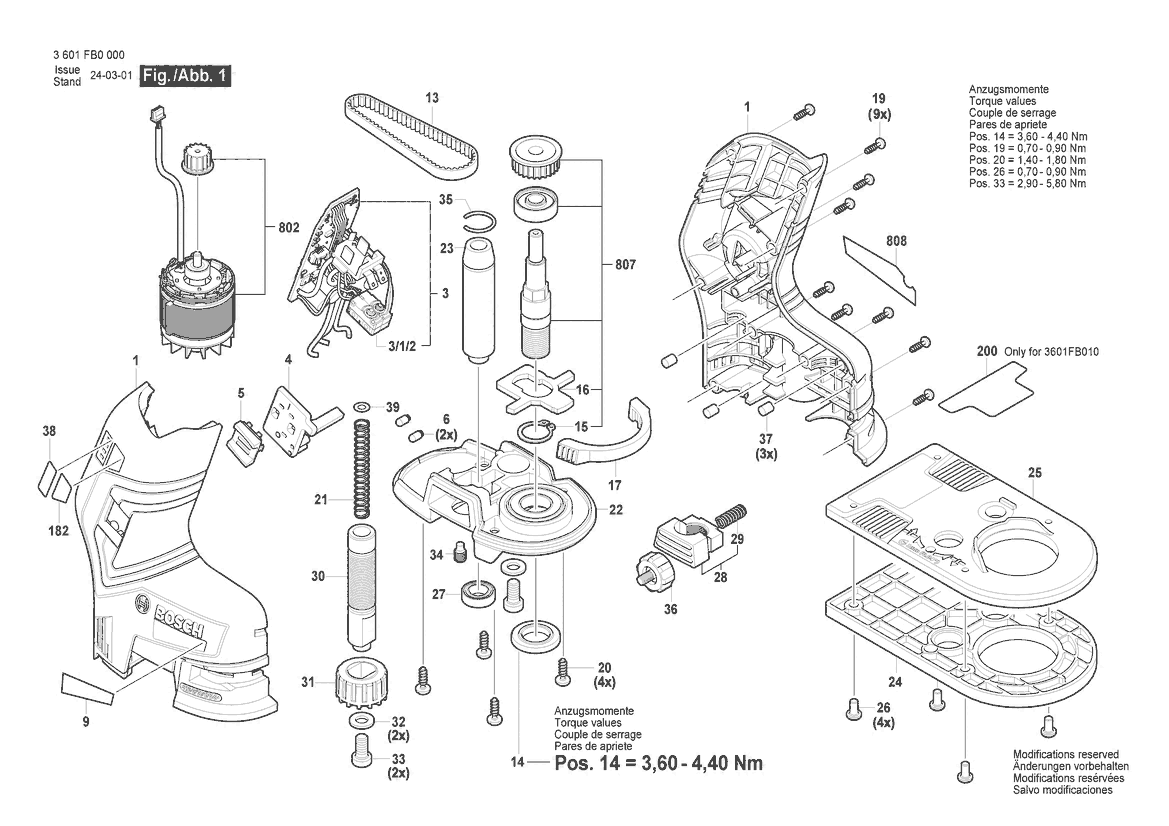

To select an item please click on the position number in the illustration or select the item via the part list below the drawing
3 601 FB0 000
Image 1
Ball Bearing
In stock
Spare part number: 1 600 900 06Y
Position: 27
Availability: 1
Price group: 13
£1.96*
All prices including VAT
Belt
In stock
Spare part number: 1 600 A00 D66
Position: 13
Availability: 1
Price group: 17
£3.97*
All prices including VAT
Hex Socket Head Cap Screw
Out of stock
part
Spare part number: 1 600 A00 JN1
Position: 33
Availability: 2
Price group: 10
£0.72*
All prices including VAT
Set screw
Out of stock
Spare part number: 1 600 A00 JN2
Position: 34
Availability: 1
Price group: 10
£0.72*
All prices including VAT
Slide Switch
In stock
part
Spare part number: 1 600 A00 N99
Position: 4
Availability: 1
Price group: 11
£1.09*
All prices including VAT
Sliding Rod
Out of stock
Spare part number: 1 600 A00 N9B
Position: 23
Availability: 1
Price group: 21
£6.50*
All prices including VAT
Base Plate
In stock
part
Spare part number: 1 600 A00 N9C
Position: 24
Availability: 1
Price group: 21
£6.50*
All prices including VAT
Base Plate
Out of stock
part
Spare part number: 1 600 A00 N9D
Position: 25
Availability: 1
Price group: 24
£9.64*
All prices including VAT
Pusher Unit
Out of stock
Spare part number: 1 600 A00 N9E
Position: 28
Availability: 1
Price group: 25
£10.50*
All prices including VAT
Threaded Rod
Out of stock
Spare part number: 1 600 A00 N9J
Position: 30
Availability: 1
Price group: 22
£7.57*
All prices including VAT
Thumbwheel
Out of stock
part
Spare part number: 1 600 A00 N9L
Position: 31
Availability: 1
Price group: 12
£1.62*
All prices including VAT
Locking Plate
Out of stock
Spare part number: 1 600 A00 P4H
Position: 16
Availability: 1
Price group: 19
£4.90*
All prices including VAT
Retaining Stirrup
Out of stock
part
Spare part number: 1 600 A00 P4K
Position: 17
Availability: 1
Price group: 13
£1.96*
All prices including VAT
Locking Lever
In stock
part
Spare part number: 1 600 A00 P4M
Position: 36
Availability: 1
Price group: 20
£5.52*
All prices including VAT
Slide Button
In stock
part
Spare part number: 1 600 A01 1L4
Position: 5
Availability: 1
Price group: 10
£0.72*
All prices including VAT
Label
In stock
part
Spare part number: 1 600 A01 3UA
Position: 182
Availability: 1
Price group: 13
£1.96*
All prices including VAT
Shim
Out of stock
Spare part number: 1 600 A01 45D
Position: 39
Availability: 1
Price group: 10
£0.72*
All prices including VAT
Nameplate
In stock
Spare part number: 1 601 11A 5CK
Position: 808
Availability: 1
Price group: 13
£1.96*
All prices including VAT
Manufacturer's nameplate GKF 12V-8
In stock
part
Spare part number: 1 601 11C 25M
Position: 9
Availability: 1
Price group: 13
£1.96*
All prices including VAT
Sticker
In stock
part
Spare part number: 1 601 11C 25N
Position: 38
Availability: 1
Price group: 13
£1.96*
All prices including VAT
Compression Spring
Out of stock
part
Spare part number: 1 604 612 01U
Position: 21
Availability: 1
Price group: 10
£0.72*
All prices including VAT
Compression Spring
Out of stock
part
Spare part number: 1 604 612 01X
Position: 29
Availability: 1
Price group: 10
£0.72*
All prices including VAT
Housing
In stock
part
Spare part number: 1 605 806 5M2
Position: 1
Availability: 1
Price group: 30
£20.00*
All prices including VAT
Housing
In stock
part
Spare part number: 1 605 806 5M2
Position: 1
Availability: 1
Price group: 30
£20.00*
All prices including VAT
Bearing Flange
Out of stock
part
Spare part number: 1 605 808 0A8
Position: 22
Availability: 1
Price group: 30
£20.00*
All prices including VAT
Motor
In stock
part
Spare part number: 1 607 000 CM2
Position: 802
Availability: 1
Price group: 39
£54.42*
All prices including VAT
Output Shaft
In stock
Spare part number: 1 607 000 CM3
Position: 807
Availability: 1
Price group: 33
£29.21*
All prices including VAT
Electronic Module
Out of stock
part
Spare part number: 1 607 233 5DH
Position: 3
Availability: 1
Price group: 40
£59.53*
All prices including VAT
Ratchet Cap
In stock
part
Spare part number: 2 600 590 006
Position: 6
Availability: 2
Price group: 11
£1.09*
All prices including VAT
Damping rubber
In stock
part
Spare part number: 2 603 100 056
Position: 37
Availability: 3
Price group: 11
£1.09*
All prices including VAT
Oval-Head Screw M4X8
In stock
part
Spare part number: 2 603 413 035
Position: 26
Availability: 4
Price group: 10
£0.72*
All prices including VAT
Torx Oval-Head Screw 3X10
In stock
part
Spare part number: 2 603 490 017
Position: 19
Availability: 9
Price group: 12
£1.62*
All prices including VAT
Torx Oval-Head Screw 4X12
In stock
part
Spare part number: 2 603 490 021
Position: 20
Availability: 4
Price group: 10
£0.72*
All prices including VAT
Switch
In stock
part
Spare part number: 2 607 202 355
Position: 3/1/2
Availability: 2
Price group: 20
£5.52*
All prices including VAT
Switch
In stock
part
Spare part number: 2 607 202 355
Position: 3/2/1
Availability: 2
Price group: 20
£5.52*
All prices including VAT
Self-locking nut
In stock
part
Spare part number: 2 609 110 253
Position: 14
Availability: 1
Price group: 14
£2.10*
All prices including VAT
Plain Washer DIN 125-A 6,4-ST
In stock
part
Spare part number: 2 916 011 014
Position: 32
Availability: 2
Price group: 10
£0.72*
All prices including VAT
Retaining ring
Out of stock
part
Spare part number: 2 916 550 006
Position: 35
Availability: 1
Price group: 10
£0.72*
All prices including VAT
Retaining clip DIN 471-15X1-FST
In stock
Spare part number: 2 916 650 006
Position: 15
Availability: 1
Price group: 11
£1.09*
All prices including VAT
Image 1
In stock

Please click for futher details

Sliding Rod
Out of stock
Spare part number: 1 600 A00 N9B
Position: 23
Availability: 1
Price group: 21
£6.50*
All prices including VAT
Battery Pack
Discontinued
part
Spare part number: 1 607 A35 06A
Position: 91
Availability: 1
Price group: 43
£75.32*
All prices including VAT
Out of stock

Please click for futher details

In stock

Please click for futher details

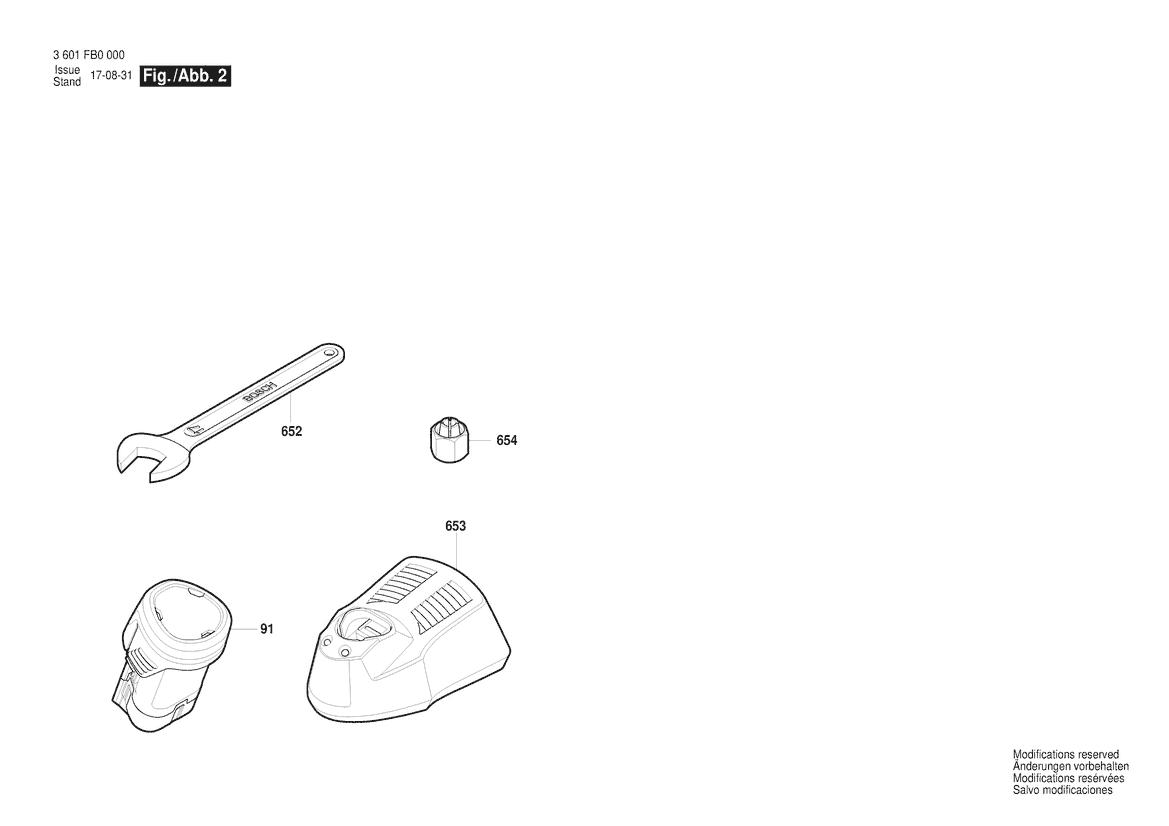

Single-Head Eng. Wrench SW 17
In stock
Spare part number: 2 609 110 438
Position: 652
Availability: 1
Price group: 18
£4.19*
All prices including VAT
In stock

Please click for futher details

1
2
Spare parts in cart

43 Parts found

Sort by
Description
Pos. 1 | Housing
1 605 806 5M2
In stock
£20.00*
*All prices including VAT
Pos. 3 | Electronic Module
1 607 233 5DH
Out of stock
£59.53*
*All prices including VAT
Pos. 3/1/2 | Switch
2 607 202 355
In stock
£5.52*
*All prices including VAT
Pos. 4 | Slide Switch
1 600 A00 N99
In stock
£1.09*
*All prices including VAT
Pos. 5 | Slide Button
1 600 A01 1L4
In stock
£0.72*
*All prices including VAT
Pos. 6 | Ratchet Cap
2 600 590 006
In stock
£1.09*
*All prices including VAT
Pos. 9 | Manufacturer's nameplate GKF 12V-8
1 601 11C 25M
In stock
£1.96*
*All prices including VAT
Pos. 13 | Belt
1 600 A00 D66
In stock
£3.97*
*All prices including VAT
Pos. 14 | Self-locking nut
2 609 110 253
In stock
£2.10*
*All prices including VAT
Pos. 15 | Retaining clip DIN 471-15X1-FST
2 916 650 006
In stock
£1.09*
*All prices including VAT
Pos. 16 | Locking Plate
1 600 A00 P4H
Out of stock
£4.90*
*All prices including VAT
Pos. 17 | Retaining Stirrup
1 600 A00 P4K
Out of stock
£1.96*
*All prices including VAT
Pos. 19 | Torx Oval-Head Screw 3X10
2 603 490 017
In stock
£1.62*
*All prices including VAT
Pos. 20 | Torx Oval-Head Screw 4X12
2 603 490 021
In stock
£0.72*
*All prices including VAT
Pos. 21 | Compression Spring
1 604 612 01U
Out of stock
£0.72*
*All prices including VAT
Pos. 22 | Bearing Flange
1 605 808 0A8
Out of stock
£20.00*
*All prices including VAT
Pos. 23 | Sliding Rod
1 600 A00 N9B
Out of stock
£6.50*
*All prices including VAT
Pos. 24 | Base Plate
1 600 A00 N9C
In stock
£6.50*
*All prices including VAT
Pos. 25 | Base Plate
1 600 A00 N9D
Out of stock
£9.64*
*All prices including VAT
Pos. 26 | Oval-Head Screw M4X8
2 603 413 035
In stock
£0.72*
*All prices including VAT
Pos. 27 | Ball Bearing
1 600 900 06Y
In stock
£1.96*
*All prices including VAT
Pos. 28 | Pusher Unit
1 600 A00 N9E
Out of stock
£10.50*
*All prices including VAT
Pos. 29 | Compression Spring
1 604 612 01X
Out of stock
£0.72*
*All prices including VAT
Pos. 30 | Threaded Rod
1 600 A00 N9J
Out of stock
£7.57*
*All prices including VAT
Pos. 31 | Thumbwheel
1 600 A00 N9L
Out of stock
£1.62*
*All prices including VAT
Pos. 32 | Plain Washer DIN 125-A 6,4-ST
2 916 011 014
In stock
£0.72*
*All prices including VAT
Pos. 33 | Hex Socket Head Cap Screw
1 600 A00 JN1
Out of stock
£0.72*
*All prices including VAT
Pos. 34 | Set screw
1 600 A00 JN2
Out of stock
£0.72*
*All prices including VAT
Pos. 35 | Retaining ring
2 916 550 006
Out of stock
£0.72*
*All prices including VAT
Pos. 36 | Locking Lever
1 600 A00 P4M
In stock
£5.52*
*All prices including VAT
Pos. 37 | Damping rubber
2 603 100 056
In stock
£1.09*
*All prices including VAT
Pos. 38 | Sticker
1 601 11C 25N
In stock
£1.96*
*All prices including VAT
Pos. 39 | Shim
1 600 A01 45D
Out of stock
£0.72*
*All prices including VAT
Pos. 91 | Battery Pack
1 607 A35 06A
Discontinued
£75.32*
*All prices including VAT
Pos. 182 | Label
1 600 A01 3UA
In stock
£1.96*
*All prices including VAT
Pos. 652 | Single-Head Eng. Wrench SW 17
2 609 110 438
In stock
£4.19*
*All prices including VAT
Pos. 653 | Fast Charger GB GAL 1230 CV 230/12V
2 607 226 105
Out of stock
£48.38*
*All prices including VAT
Pos. 653 | Fast Charger EU GAL 12V-40
2 607 226 219
In stock
£54.42*
*All prices including VAT
Pos. 654 | contour sleeve 6,35 Ø
1 600 A00 H85
In stock
£11.93*
*All prices including VAT
Pos. 654 | contour sleeve 8,0 Ø
2 609 199 145
In stock
£17.22*
*All prices including VAT
Pos. 802 | Motor
1 607 000 CM2
In stock
£54.42*
*All prices including VAT
Pos. 807 | Output Shaft
1 607 000 CM3
In stock
£29.21*
*All prices including VAT
Pos. 808 | Nameplate
1 601 11A 5CK
In stock
£1.96*
*All prices including VAT
* All prices including VAT
Turn the device for 90 degrees.
3 601 FB0 000
Image 1
Ball Bearing
In stock
Spare part number: 1 600 900 06Y
Position: 27
Availability: 1
Price group: 13
£1.96*

All prices including VAT
Belt
In stock
Spare part number: 1 600 A00 D66
Position: 13
Availability: 1
Price group: 17
£3.97*

All prices including VAT
Hex Socket Head Cap Screw
Out of stock
part
Spare part number: 1 600 A00 JN1
Position: 33
Availability: 2
Price group: 10
£0.72*

All prices including VAT
Set screw
Out of stock
Spare part number: 1 600 A00 JN2
Position: 34
Availability: 1
Price group: 10
£0.72*

All prices including VAT
Slide Switch
In stock
part
Spare part number: 1 600 A00 N99
Position: 4
Availability: 1
Price group: 11
£1.09*

All prices including VAT
Sliding Rod
Out of stock
Spare part number: 1 600 A00 N9B
Position: 23
Availability: 1
Price group: 21
£6.50*

All prices including VAT
Base Plate
In stock
part
Spare part number: 1 600 A00 N9C
Position: 24
Availability: 1
Price group: 21
£6.50*

All prices including VAT
Base Plate
Out of stock
part
Spare part number: 1 600 A00 N9D
Position: 25
Availability: 1
Price group: 24
£9.64*

All prices including VAT
Pusher Unit
Out of stock
Spare part number: 1 600 A00 N9E
Position: 28
Availability: 1
Price group: 25
£10.50*

All prices including VAT
Threaded Rod
Out of stock
Spare part number: 1 600 A00 N9J
Position: 30
Availability: 1
Price group: 22
£7.57*

All prices including VAT
Thumbwheel
Out of stock
part
Spare part number: 1 600 A00 N9L
Position: 31
Availability: 1
Price group: 12
£1.62*

All prices including VAT
Locking Plate
Out of stock
Spare part number: 1 600 A00 P4H
Position: 16
Availability: 1
Price group: 19
£4.90*

All prices including VAT
Retaining Stirrup
Out of stock
part
Spare part number: 1 600 A00 P4K
Position: 17
Availability: 1
Price group: 13
£1.96*

All prices including VAT
Locking Lever
In stock
part
Spare part number: 1 600 A00 P4M
Position: 36
Availability: 1
Price group: 20
£5.52*

All prices including VAT
Slide Button
In stock
part
Spare part number: 1 600 A01 1L4
Position: 5
Availability: 1
Price group: 10
£0.72*

All prices including VAT
Label
In stock
part
Spare part number: 1 600 A01 3UA
Position: 182
Availability: 1
Price group: 13
£1.96*

All prices including VAT
Shim
Out of stock
Spare part number: 1 600 A01 45D
Position: 39
Availability: 1
Price group: 10
£0.72*

All prices including VAT
Nameplate
In stock
Spare part number: 1 601 11A 5CK
Position: 808
Availability: 1
Price group: 13
£1.96*

All prices including VAT
Manufacturer's nameplate GKF 12V-8
In stock
part
Spare part number: 1 601 11C 25M
Position: 9
Availability: 1
Price group: 13
£1.96*

All prices including VAT
Sticker
In stock
part
Spare part number: 1 601 11C 25N
Position: 38
Availability: 1
Price group: 13
£1.96*

All prices including VAT
Compression Spring
Out of stock
part
Spare part number: 1 604 612 01U
Position: 21
Availability: 1
Price group: 10
£0.72*

All prices including VAT
Compression Spring
Out of stock
part
Spare part number: 1 604 612 01X
Position: 29
Availability: 1
Price group: 10
£0.72*

All prices including VAT
Housing
In stock
part
Spare part number: 1 605 806 5M2
Position: 1
Availability: 1
Price group: 30
£20.00*

All prices including VAT
Housing
In stock
part
Spare part number: 1 605 806 5M2
Position: 1
Availability: 1
Price group: 30
£20.00*

All prices including VAT
Bearing Flange
Out of stock
part
Spare part number: 1 605 808 0A8
Position: 22
Availability: 1
Price group: 30
£20.00*

All prices including VAT
Motor
In stock
part
Spare part number: 1 607 000 CM2
Position: 802
Availability: 1
Price group: 39
£54.42*

All prices including VAT
Output Shaft
In stock
Spare part number: 1 607 000 CM3
Position: 807
Availability: 1
Price group: 33
£29.21*

All prices including VAT
Electronic Module
Out of stock
part
Spare part number: 1 607 233 5DH
Position: 3
Availability: 1
Price group: 40
£59.53*

All prices including VAT
Ratchet Cap
In stock
part
Spare part number: 2 600 590 006
Position: 6
Availability: 2
Price group: 11
£1.09*

All prices including VAT
Damping rubber
In stock
part
Spare part number: 2 603 100 056
Position: 37
Availability: 3
Price group: 11
£1.09*

All prices including VAT
Oval-Head Screw M4X8
In stock
part
Spare part number: 2 603 413 035
Position: 26
Availability: 4
Price group: 10
£0.72*

All prices including VAT
Torx Oval-Head Screw 3X10
In stock
part
Spare part number: 2 603 490 017
Position: 19
Availability: 9
Price group: 12
£1.62*

All prices including VAT
Torx Oval-Head Screw 4X12
In stock
part
Spare part number: 2 603 490 021
Position: 20
Availability: 4
Price group: 10
£0.72*

All prices including VAT
Switch
In stock
part
Spare part number: 2 607 202 355
Position: 3/1/2
Availability: 2
Price group: 20
£5.52*

All prices including VAT
Switch
In stock
part
Spare part number: 2 607 202 355
Position: 3/2/1
Availability: 2
Price group: 20
£5.52*

All prices including VAT
Self-locking nut
In stock
part
Spare part number: 2 609 110 253
Position: 14
Availability: 1
Price group: 14
£2.10*

All prices including VAT
Plain Washer DIN 125-A 6,4-ST
In stock
part
Spare part number: 2 916 011 014
Position: 32
Availability: 2
Price group: 10
£0.72*

All prices including VAT
Retaining ring
Out of stock
part
Spare part number: 2 916 550 006
Position: 35
Availability: 1
Price group: 10
£0.72*

All prices including VAT
Retaining clip DIN 471-15X1-FST
In stock
Spare part number: 2 916 650 006
Position: 15
Availability: 1
Price group: 11
£1.09*

All prices including VAT
Image 1
In stock

Please click for futher details

Sliding Rod
Out of stock
Spare part number: 1 600 A00 N9B
Position: 23
Availability: 1
Price group: 21
£6.50*

All prices including VAT
Battery Pack
Discontinued
part
Spare part number: 1 607 A35 06A
Position: 91
Availability: 1
Price group: 43
£75.32*

All prices including VAT
Out of stock

Please click for futher details

Single-Head Eng. Wrench SW 17
In stock
Spare part number: 2 609 110 438
Position: 652
Availability: 1
Price group: 18
£4.19*

All prices including VAT
1
2
Warning
A selection of part numbers is available. Please click the respective button in the spare part list
Warning
To select this item click the checkbox. Note: This position number does not appear on the illustration
Warning
No spare part listed
