Cordl Perc Screwdr
GSB 18V-90 C | 3 601 JK6 100 | 18 V /
Lubrication instructions
Product information
Print drawing

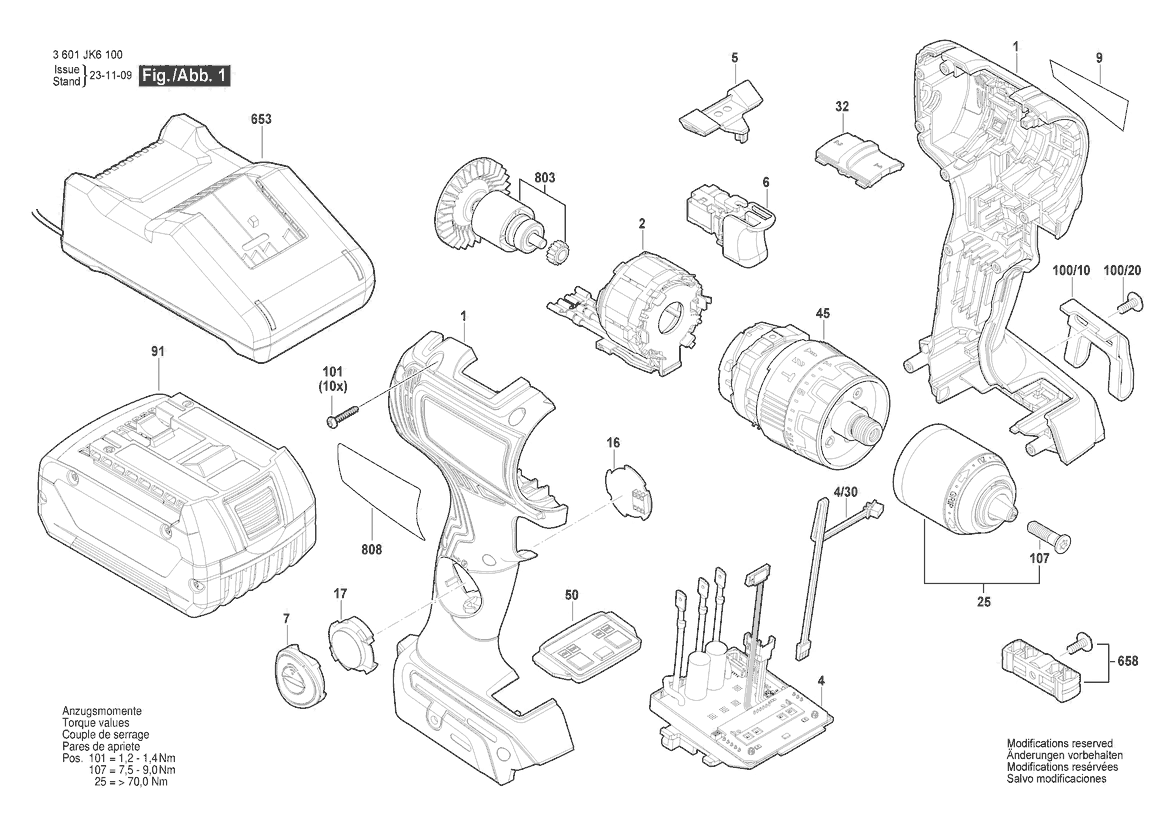

To select an item please click on the position number in the illustration or select the item via the part list below the drawing
3 601 JK6 100
Image 1
Keyless Chuck
-
part
Spare part number: 1 600 A01 22S
Position: 25
Availability: 1
Price group: 36
AU$ 84.13 *
Price including GST
Gear Box
-
Spare part number: 1 600 A01 24V
Position: 45
Availability: 1
Price group: 38
AU$ 94.69 *
Price including GST
Electronics Module
-
part
Spare part number: 1 600 A01 6CZ
Position: 16
Availability: 1
Price group: 22
AU$ 16.37 *
Price including GST
Housing
-
part
Spare part number: 1 600 A01 V6W
Position: 1
Availability: 1
Price group: 28
AU$ 31.94 *
Price including GST
Housing
-
part
Spare part number: 1 600 A01 V6W
Position: 1
Availability: 1
Price group: 28
AU$ 31.94 *
Price including GST
Stator
-
Spare part number: 1 600 A01 W0T
Position: 2
Availability: 1
Price group: 35
AU$ 75.94 *
Price including GST
Changeover Lever
-
Spare part number: 1 600 A02 3EE
Position: 5
Availability: 1
Price group: 11
AU$ 3.52 *
Price including GST
Switchover Unit
-
Spare part number: 1 600 A02 477
Position: 32
Availability: 1
Price group: 12
AU$ 5.17 *
Price including GST
Cover unit
-
Spare part number: 1 600 A02 5PZ
Position: 7
Availability: 1
Price group: 11
AU$ 3.52 *
Price including GST
Separator
-
Spare part number: 1 600 A02 5W9
Position: 50
Availability: 1
Price group: 18
AU$ 11.78 *
Price including GST
Rotor
-
Spare part number: 1 600 A02 9PG
Position: 803
Availability: 1
Price group: 32
AU$ 54.03 *
Price including GST
Cover Panel
-
Spare part number: 1 600 A02 KY7
Position: 17
Availability: 1
Price group: 12
AU$ 5.17 *
Price including GST
Nameplate
-
Spare part number: 1 601 11A 90X
Position: 808
Availability: 1
Price group: 13
AU$ 5.94 *
Price including GST
Manufacturer's nameplate
-
Spare part number: 1 601 11C 4MG
Position: 9
Availability: 1
Price group: 13
AU$ 5.94 *
Price including GST
Electronics Module
-
part
Spare part number: 1 607 233 5JS
Position: 4
Availability: 1
Price group: 47
AU$ 236.90 *
Price including GST
Printed-Board Assembly
-
Spare part number: 1 607 504 124
Position: 4/30
Availability: 1
Price group: 17
AU$ 10.20 *
Price including GST
-

Please click for futher details

Countersunk-Head Screw M6X23 LEFTHAND THREADS
-
part
Spare part number: 2 603 421 229
Position: 107
Availability: 1
Price group: 11
AU$ 3.52 *
Price including GST
Switch
-
Spare part number: 2 607 202 904
Position: 6
Availability: 1
Price group: 25
AU$ 22.79 *
Price including GST
-

Please click for futher details

-

Please click for futher details

-

Please click for futher details

Torx Oval-Head Screw
-
part
Spare part number: 2 609 110 353
Position: 101
Availability: 10
Price group: 12
AU$ 5.17 *
Price including GST
Screw
-
part
Spare part number: 2 609 110 834
Position: 100/20
Availability: 1
Price group: 11
AU$ 3.52 *
Price including GST
Clip
-
part
Spare part number: 2 609 111 584
Position: 100/10
Availability: 1
Price group: 15
AU$ 8.25 *
Price including GST
Bit holder
-
part
Spare part number: 2 609 199 748
Position: 658
Availability: 1
Price group: 12
AU$ 5.17 *
Price including GST
1
My spare part list

25 Parts found

Sort by
Description
Pos. 1 | Housing
1 600 A01 V6W
-
AU$ 31.94 *
*Price including GST
Pos. 2 | Stator
1 600 A01 W0T
-
AU$ 75.94 *
*Price including GST
Pos. 4 | Electronics Module
1 607 233 5JS
-
AU$ 236.90 *
*Price including GST
Pos. 4/30 | Printed-Board Assembly
1 607 504 124
-
AU$ 10.20 *
*Price including GST
Pos. 5 | Changeover Lever
1 600 A02 3EE
-
AU$ 3.52 *
*Price including GST
Pos. 6 | Switch
2 607 202 904
-
AU$ 22.79 *
*Price including GST
Pos. 7 | Cover unit
1 600 A02 5PZ
-
AU$ 3.52 *
*Price including GST
Pos. 9 | Manufacturer's nameplate
1 601 11C 4MG
-
AU$ 5.94 *
*Price including GST
Pos. 16 | Electronics Module
1 600 A01 6CZ
-
AU$ 16.37 *
*Price including GST
Pos. 17 | Cover Panel
1 600 A02 KY7
-
AU$ 5.17 *
*Price including GST
Pos. 25 | Keyless Chuck
1 600 A01 22S
-
AU$ 84.13 *
*Price including GST
Pos. 32 | Switchover Unit
1 600 A02 477
-
AU$ 5.17 *
*Price including GST
Pos. 45 | Gear Box
1 600 A01 24V
-
AU$ 94.69 *
*Price including GST
Pos. 50 | Separator
1 600 A02 5W9
-
AU$ 11.78 *
*Price including GST
Pos. 91 | Battery Pack GBA 18V 2.0AH
1 607 A35 0MA
-
AU$ 152.15 *
*Price including GST
Pos. 91 | Battery Pack BBS MR-XL, 18V, 5AH KOREA
2 607 337 085
-
AU$ 430.50 *
*Price including GST
Pos. 100/10 | Clip
2 609 111 584
-
AU$ 8.25 *
*Price including GST
Pos. 100/20 | Screw
2 609 110 834
-
AU$ 3.52 *
*Price including GST
Pos. 101 | Torx Oval-Head Screw
2 609 110 353
-
AU$ 5.17 *
*Price including GST
Pos. 107 | Countersunk-Head Screw M6X23 LEFTHAND THREADS
2 603 421 229
-
AU$ 3.52 *
*Price including GST
Pos. 653 | Fast Charger
2 607 226 251
-
-
Pos. 653 | Fast Charger ROK GAL 18V-40
2 607 226 263
-
-
Pos. 658 | Bit holder
2 609 199 748
-
AU$ 5.17 *
*Price including GST
Pos. 803 | Rotor
1 600 A02 9PG
-
AU$ 54.03 *
*Price including GST
Pos. 808 | Nameplate
1 601 11A 90X
-
AU$ 5.94 *
*Price including GST
* Price including GST
