Cordless Screw Driver
GTB 18V-45 | 3 601 JK7 000 | 18 V / 026 - AS
Lubrication instructions
Product information
Print drawing

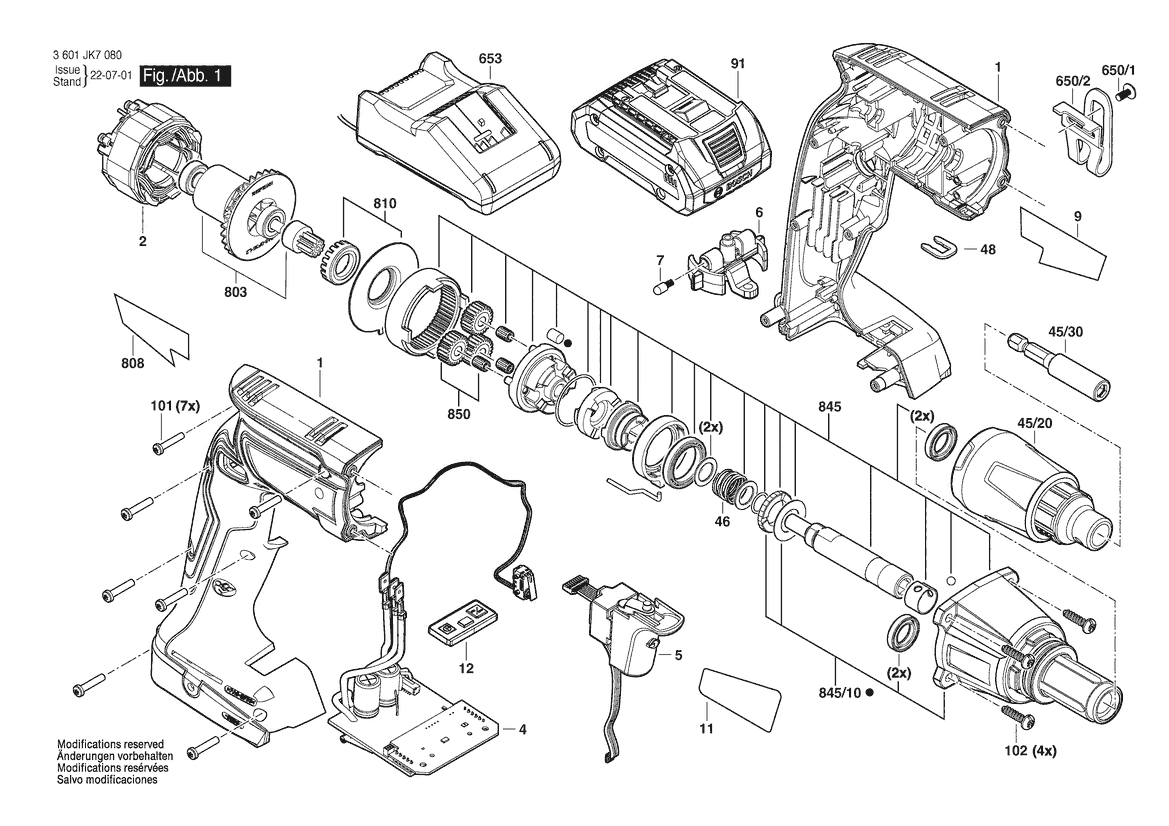

To select an item please click on the position number in the illustration or select the item via the part list below the drawing
3 601 JK7 000
Image 1
Depth-Gauge
-
Spare part number: 1 600 A01 A4D
Position: 45/20
Availability: 1
Price group: 17
AU$ 10.20 *
Price including GST
Lever Switch
-
Spare part number: 1 600 A01 D6X
Position: 6
Availability: 1
Price group: 16
AU$ 8.42 *
Price including GST
Housing
-
Spare part number: 1 600 A02 4AZ
Position: 1
Availability: 1
Price group: 26
AU$ 25.78 *
Price including GST
Housing
-
Spare part number: 1 600 A02 4AZ
Position: 1
Availability: 1
Price group: 26
AU$ 25.78 *
Price including GST
Separator
-
Spare part number: 1 600 A02 61R
Position: 12
Availability: 1
Price group: 19
AU$ 13.46 *
Price including GST
Nameplate
-
Spare part number: 1 601 11A 8DS
Position: 808
Availability: 1
Price group: 13
AU$ 5.94 *
Price including GST
Sticker
-
Spare part number: 1 601 11C 41N
Position: 11
Availability: 1
Price group: 13
AU$ 5.94 *
Price including GST
Manufacturer's nameplate
-
Spare part number: 1 601 11C 41U
Position: 9
Availability: 1
Price group: 13
AU$ 5.94 *
Price including GST
Rotor
-
Spare part number: 1 607 000 E6G
Position: 803
Availability: 1
Price group: 33
AU$ 64.59 *
Price including GST
Friction Washer
-
Spare part number: 1 607 000 E6H
Position: 810
Availability: 1
Price group: 20
AU$ 15.15 *
Price including GST
Gear Unit
-
Spare part number: 1 607 000 E6J
Position: 845
Availability: 1
Price group: 38
AU$ 94.69 *
Price including GST
Gear Housing
-
Spare part number: 1 607 000 E6K
Position: 845/10
Availability: 1
Price group: 29
AU$ 38.90 *
Price including GST
Planet Gear
-
Spare part number: 1 607 000 E9S
Position: 850
Availability: 1
Price group: 17
AU$ 10.20 *
Price including GST
Speed governor
-
part
Spare part number: 1 607 233 5N0
Position: 4
Availability: 1
Price group: 43
AU$ 152.15 *
Price including GST
-

Please click for futher details

Compression Spring
-
part
Spare part number: 1 609 280 477
Position: 46
Availability: 1
Price group: 11
AU$ 3.52 *
Price including GST
Toolholder
-
Spare part number: 1 618 597 13F
Position: 45/30
Availability: 1
Price group: 20
AU$ 15.15 *
Price including GST
Stator
-
Spare part number: 1 619 P16 440
Position: 2
Availability: 1
Price group: 27
AU$ 27.54 *
Price including GST
Ratchet Cap
-
part
Spare part number: 2 600 590 006
Position: 7
Availability: 1
Price group: 11
AU$ 3.52 *
Price including GST
Screw 4X16
-
part
Spare part number: 2 603 490 022
Position: 102
Availability: 4
Price group: 10
AU$ 2.31 *
Price including GST
Switch
-
Spare part number: 2 607 202 902
Position: 5
Availability: 1
Price group: 29
AU$ 38.90 *
Price including GST
-

Please click for futher details

-

Please click for futher details

-

Please click for futher details

Torx Flat-Head Screw 3X16
-
part
Spare part number: 2 609 110 201
Position: 101
Availability: 7
Price group: 12
AU$ 5.17 *
Price including GST
Screw
-
part
Spare part number: 2 609 110 834
Position: 650/2
Availability: 1
Price group: 11
AU$ 3.52 *
Price including GST
Clip
-
part
Spare part number: 2 609 110 838
Position: 48
Availability: 1
Price group: 10
AU$ 2.31 *
Price including GST
Clip
-
part
Spare part number: 2 609 111 584
Position: 650/1
Availability: 1
Price group: 15
AU$ 8.25 *
Price including GST
1
My spare part list

27 Parts found

Sort by
Description
Pos. 1 | Housing
1 600 A02 4AZ
-
AU$ 25.78 *
*Price including GST
Pos. 2 | Stator
1 619 P16 440
-
AU$ 27.54 *
*Price including GST
Pos. 4 | Speed governor
1 607 233 5N0
-
AU$ 152.15 *
*Price including GST
Pos. 5 | Switch
2 607 202 902
-
AU$ 38.90 *
*Price including GST
Pos. 6 | Lever Switch
1 600 A01 D6X
-
AU$ 8.42 *
*Price including GST
Pos. 7 | Ratchet Cap
2 600 590 006
-
AU$ 3.52 *
*Price including GST
Pos. 9 | Manufacturer's nameplate
1 601 11C 41U
-
AU$ 5.94 *
*Price including GST
Pos. 11 | Sticker
1 601 11C 41N
-
AU$ 5.94 *
*Price including GST
Pos. 12 | Separator
1 600 A02 61R
-
AU$ 13.46 *
*Price including GST
Pos. 45/20 | Depth-Gauge
1 600 A01 A4D
-
AU$ 10.20 *
*Price including GST
Pos. 45/30 | Toolholder
1 618 597 13F
-
AU$ 15.15 *
*Price including GST
Pos. 46 | Compression Spring
1 609 280 477
-
AU$ 3.52 *
*Price including GST
Pos. 48 | Clip
2 609 110 838
-
AU$ 2.31 *
*Price including GST
Pos. 91 | Battery Pack
1 607 A35 0AN
-
AU$ 169.00 *
*Price including GST
Pos. 91 | Battery Pack
2 607 337 069
-
AU$ 209.26 *
*Price including GST
Pos. 101 | Torx Flat-Head Screw 3X16
2 609 110 201
-
AU$ 5.17 *
*Price including GST
Pos. 102 | Screw 4X16
2 603 490 022
-
AU$ 2.31 *
*Price including GST
Pos. 650/1 | Clip
2 609 111 584
-
AU$ 8.25 *
*Price including GST
Pos. 650/2 | Screw
2 609 110 834
-
AU$ 3.52 *
*Price including GST
Pos. 653 | Fast Charger
2 607 226 251
-
-
Pos. 653 | Fast Charger AUS GAL 18V-40
2 607 226 255
-
AU$ 119.00 *
*Price including GST
Pos. 803 | Rotor
1 607 000 E6G
-
AU$ 64.59 *
*Price including GST
Pos. 808 | Nameplate
1 601 11A 8DS
-
AU$ 5.94 *
*Price including GST
Pos. 810 | Friction Washer
1 607 000 E6H
-
AU$ 15.15 *
*Price including GST
Pos. 845 | Gear Unit
1 607 000 E6J
-
AU$ 94.69 *
*Price including GST
Pos. 845/10 | Gear Housing
1 607 000 E6K
-
AU$ 38.90 *
*Price including GST
Pos. 850 | Planet Gear
1 607 000 E9S
-
AU$ 10.20 *
*Price including GST
* Price including GST
