Cordless Angle Grinder
GWS 18V-10 PSC | 3 601 JG3 F01 | 18 V / 001 - EU
Lubrication instructions
Product information
Print drawing

To select an item please click on the position number in the illustration or select the item via the part list below the drawing
3 601 JG3 F01

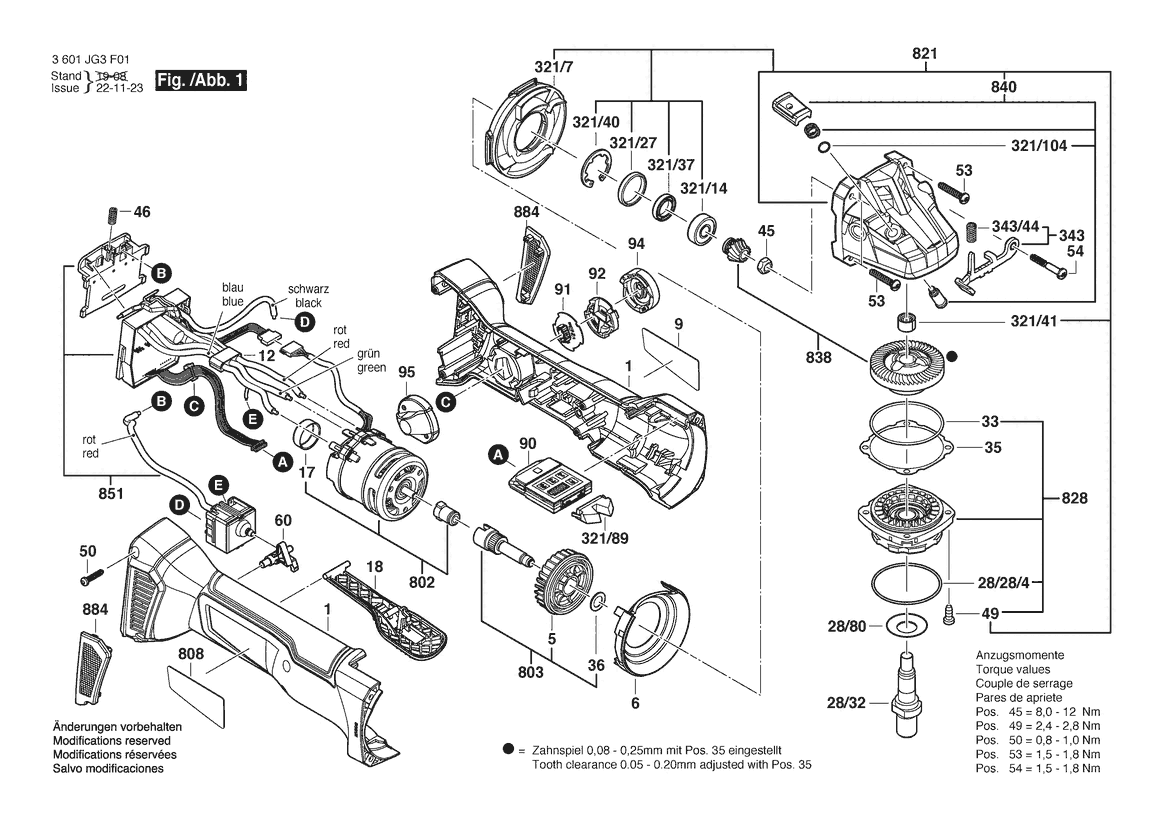

Image 1
Cover
-
Spare part number: 1 600 100 P12
Position: 17
Availability: 1
Price group: 11
AU$ 3.52 *
Price including GST
Retaining clip
-
part
Spare part number: 1 600 119 011
Position: 321/40
Availability: 1
Price group: 12
AU$ 5.17 *
Price including GST
-

Please click for futher details

-

Please click for futher details

-

Please click for futher details

-

Please click for futher details

Plain bearing
-
part
Spare part number: 1 600 200 029
Position: 321/41
Availability: 1
Price group: 16
AU$ 8.42 *
Price including GST
Rubber Ring
-
part
Spare part number: 1 600 206 025
Position: 321/27
Availability: 1
Price group: 12
AU$ 5.17 *
Price including GST
O-Ring 46,0X1,1 MM
-
part
Spare part number: 1 600 210 035
Position: 33
Availability: 1
Price group: 11
AU$ 3.52 *
Price including GST
O-Ring 4,5X1,0 MM BLUE
-
part
Spare part number: 1 600 210 044
Position: 321/104
Availability: 1
Price group: 10
AU$ 2.31 *
Price including GST
Air-Deflector Ring
-
part
Spare part number: 1 600 591 065
Position: 6
Availability: 1
Price group: 13
AU$ 5.94 *
Price including GST
Air Distributor
-
Spare part number: 1 600 591 066
Position: 321/7
Availability: 1
Price group: 14
AU$ 6.82 *
Price including GST
groove ball bearing 8X22X7
-
part
Spare part number: 1 600 905 032
Position: 321/14
Availability: 1
Price group: 18
AU$ 11.78 *
Price including GST
Cover Panel
-
Spare part number: 1 600 A00 M53
Position: 92
Availability: 1
Price group: 10
AU$ 2.31 *
Price including GST
Holder
-
Spare part number: 1 600 A00 P17
Position: 321/37
Availability: 1
Price group: 10
AU$ 2.31 *
Price including GST
Cover
-
part
Spare part number: 1 600 A00 P1B
Position: 95
Availability: 1
Price group: 10
AU$ 2.31 *
Price including GST
Light Conductor
-
part
Spare part number: 1 600 A00 P2M
Position: 321/89
Availability: 1
Price group: 12
AU$ 5.17 *
Price including GST
Switch-Pawl
-
part
Spare part number: 1 600 A00 R9F
Position: 18
Availability: 1
Price group: 16
AU$ 8.42 *
Price including GST
Reverse-Transfer Lever
-
part
Spare part number: 1 600 A00 R9L
Position: 60
Availability: 1
Price group: 11
AU$ 3.52 *
Price including GST
Ferrite
-
Spare part number: 1 600 A00 RK2
Position: 12
Availability: 1
Price group: 12
AU$ 5.17 *
Price including GST
Nameplate
-
Spare part number: 1 601 11A 9BU
Position: 808
Availability: 1
Price group: -
-
Manufacturer's nameplate
-
part
Spare part number: 1 601 11C 2MV
Position: 9
Availability: 1
Price group: 13
AU$ 5.94 *
Price including GST
Hex Nut M7, SW10
-
part
Spare part number: 1 603 300 016
Position: 45
Availability: 1
Price group: 11
AU$ 3.52 *
Price including GST
Torx Oval-Head Screw 4X30
-
Spare part number: 1 603 414 026
Position: 54
Availability: 1
Price group: 10
AU$ 2.31 *
Price including GST
Thread-forming tap. Screw
-
part
Spare part number: 1 603 435 071
Position: 50
Availability: 4
Price group: 10
AU$ 2.31 *
Price including GST
Torx Oval-Head Screw
-
part
Spare part number: 1 603 435 078
Position: 53
Availability: 3
Price group: 10
AU$ 2.31 *
Price including GST
Torx Oval-Head Screw
-
part
Spare part number: 1 603 435 078
Position: 53
Availability: 3
Price group: 10
AU$ 2.31 *
Price including GST
Compression Spring
-
part
Spare part number: 1 604 611 042
Position: 343/44
Availability: 1
Price group: 11
AU$ 3.52 *
Price including GST
Motor Housing
-
Spare part number: 1 605 108 2EL
Position: 1
Availability: 1
Price group: 30
AU$ 42.86 *
Price including GST
Motor Housing
-
Spare part number: 1 605 108 2EL
Position: 1
Availability: 1
Price group: 30
AU$ 42.86 *
Price including GST
Cover
-
part
Spare part number: 1 605 500 2BV
Position: 94
Availability: 1
Price group: 12
AU$ 5.17 *
Price including GST
Gear Housing
-
part
Spare part number: 1 605 806 5S3
Position: 821
Availability: 1
Price group: 34
AU$ 69.26 *
Price including GST
Fan
-
Spare part number: 1 606 610 16E
Position: 5
Availability: 1
Price group: 14
AU$ 6.82 *
Price including GST
Catch Lever
-
part
Spare part number: 1 607 000 742
Position: 343
Availability: 1
Price group: 20
AU$ 15.15 *
Price including GST
Motor
-
part
Spare part number: 1 607 000 CA4
Position: 802
Availability: 1
Price group: 45
AU$ 187.09 *
Price including GST
Bevel Gear Shaft
-
part
Spare part number: 1 607 000 CA5
Position: 803
Availability: 1
Price group: 24
AU$ 20.77 *
Price including GST
Gear Unit
-
Spare part number: 1 607 000 CA8
Position: 838
Availability: 1
Price group: 30
AU$ 42.86 *
Price including GST
Filter Unit
-
part
Spare part number: 1 607 000 CA9
Position: 884
Availability: 1
Price group: 23
AU$ 18.39 *
Price including GST
Filter Unit
-
part
Spare part number: 1 607 000 CA9
Position: 884
Availability: 1
Price group: 23
AU$ 18.39 *
Price including GST
Electronics Module
-
part
Spare part number: 1 607 000 D5W
Position: 851
Availability: 1
Price group: 46
AU$ 209.26 *
Price including GST
Grinding Spindle
-
part
Spare part number: 1 607 000 D6A
Position: 28/32
Availability: 1
Price group: 20
AU$ 15.15 *
Price including GST
Bearing Flange
-
Spare part number: 1 607 000 D6D
Position: 828
Availability: 1
Price group: 26
AU$ 25.78 *
Price including GST
Push-Button
-
part
Spare part number: 1 607 000 V41
Position: 840
Availability: 1
Price group: 16
AU$ 8.42 *
Price including GST
Speed governor
-
part
Spare part number: 1 607 233 5LX
Position: 90
Availability: 1
Price group: 32
AU$ 54.03 *
Price including GST
Electronics Module
-
part
Spare part number: 1 607 503 438
Position: 91
Availability: 1
Price group: 26
AU$ 25.78 *
Price including GST
Compression Spring
-
part
Spare part number: 1 609 280 477
Position: 46
Availability: 1
Price group: 11
AU$ 3.52 *
Price including GST
Washer
-
part
Spare part number: 1 610 100 023
Position: 36
Availability: 1
Price group: 10
AU$ 2.31 *
Price including GST
Cover Disc
-
part
Spare part number: 1 619 P09 390
Position: 28/80
Availability: 1
Price group: 12
AU$ 5.17 *
Price including GST
Thread-forming tap. Screw M4X16
-
part
Spare part number: 2 914 491 410
Position: 49
Availability: 4
Price group: 10
AU$ 2.31 *
Price including GST
O-Ring 47,0X1,5 MM
-
part
Spare part number: 3 600 210 109
Position: 28/28/4
Availability: 1
Price group: 12
AU$ 5.17 *
Price including GST

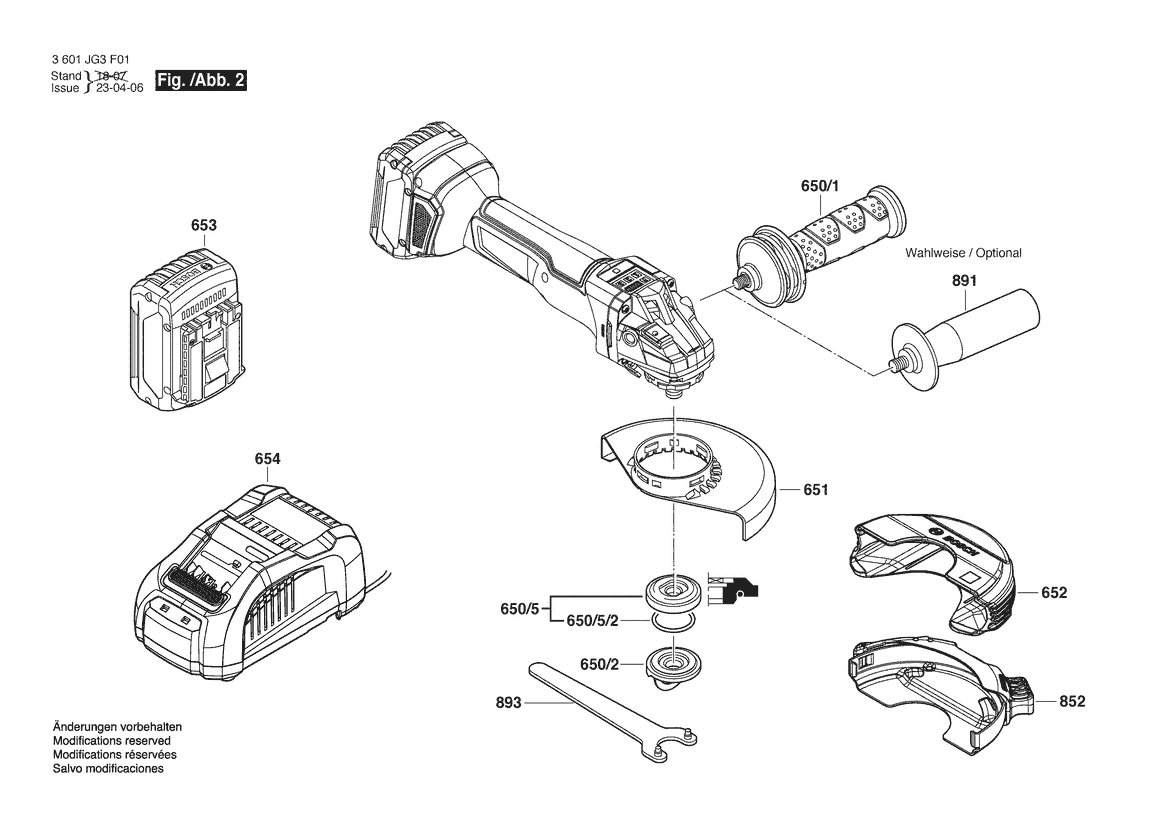

Image 1
O-Ring 20,35X1,78 MM
-
Spare part number: 1 600 210 055
Position: 650/5/2
Availability: 1
Price group: 10
AU$ 2.31 *
Price including GST
Quick Acting Flange
-
part
Spare part number: 1 600 A01 6DN
Position: 650/2
Availability: 1
Price group: 26
AU$ 25.78 *
Price including GST
Protective Cover
-
Spare part number: 1 600 A02 059
Position: 852
Availability: 1
Price group: 24
AU$ 20.77 *
Price including GST
Protective Cover
-
Spare part number: 1 600 A02 1MH
Position: 652
Availability: 1
Price group: 22
AU$ 16.37 *
Price including GST
Protective Cover
-
Spare part number: 1 600 A02 5XR
Position: 651
Availability: 1
Price group: 22
AU$ 16.37 *
Price including GST
Auxiliary Handle
-
part
Spare part number: 1 602 025 09T
Position: 891
Availability: 1
Price group: 15
AU$ 8.25 *
Price including GST
Auxiliary Handle
-
part
Spare part number: 1 602 025 0A0
Position: 650/1
Availability: 1
Price group: 23
AU$ 18.39 *
Price including GST
Electronics Module
-
part
Spare part number: 1 607 000 D5W
Position: 851
Availability: 1
Price group: 46
AU$ 209.26 *
Price including GST
Pin-Type Face-Wrench
-
part
Spare part number: 1 607 950 052
Position: 893
Availability: 1
Price group: 15
AU$ 8.25 *
Price including GST
-

Please click for futher details

Charger
-
part
Spare part number: 1 617 S02 0KJ
Position: 653
Availability: 1
Price group: -
-
Clamping Flange Ø22,3XØ42 MM
-
part
Spare part number: 2 605 703 014
Position: 650/5
Availability: 1
Price group: 20
AU$ 15.15 *
Price including GST
-

Please click for futher details

1
2
My spare part list

59 Parts found

Sort by
Description
Pos. 1 | Motor Housing
1 605 108 2EL
-
AU$ 42.86 *
*Price including GST
Pos. 5 | Fan
1 606 610 16E
-
AU$ 6.82 *
*Price including GST
Pos. 6 | Air-Deflector Ring
1 600 591 065
-
AU$ 5.94 *
*Price including GST
Pos. 9 | Manufacturer's nameplate
1 601 11C 2MV
-
AU$ 5.94 *
*Price including GST
Pos. 12 | Ferrite
1 600 A00 RK2
-
AU$ 5.17 *
*Price including GST
Pos. 17 | Cover
1 600 100 P12
-
AU$ 3.52 *
*Price including GST
Pos. 18 | Switch-Pawl
1 600 A00 R9F
-
AU$ 8.42 *
*Price including GST
Pos. 28/28/4 | O-Ring 47,0X1,5 MM
3 600 210 109
-
AU$ 5.17 *
*Price including GST
Pos. 28/32 | Grinding Spindle
1 607 000 D6A
-
AU$ 15.15 *
*Price including GST
Pos. 28/80 | Cover Disc
1 619 P09 390
-
AU$ 5.17 *
*Price including GST
Pos. 33 | O-Ring 46,0X1,1 MM
1 600 210 035
-
AU$ 3.52 *
*Price including GST
Pos. 35 | Shim 0,1 MM THICK
1 600 136 013
-
AU$ 5.94 *
*Price including GST
Pos. 35 | Shim 0,2 MM THICK
1 600 136 014
-
AU$ 5.94 *
*Price including GST
Pos. 35 | Shim 0,3 MM THICK
1 600 136 015
-
AU$ 5.94 *
*Price including GST
Pos. 35 | Shim 0,15 MM THICK
1 600 136 020
-
AU$ 8.25 *
*Price including GST
Pos. 36 | Washer
1 610 100 023
-
AU$ 2.31 *
*Price including GST
Pos. 45 | Hex Nut M7, SW10
1 603 300 016
-
AU$ 3.52 *
*Price including GST
Pos. 46 | Compression Spring
1 609 280 477
-
AU$ 3.52 *
*Price including GST
Pos. 49 | Thread-forming tap. Screw M4X16
2 914 491 410
-
AU$ 2.31 *
*Price including GST
Pos. 50 | Thread-forming tap. Screw
1 603 435 071
-
AU$ 2.31 *
*Price including GST
Pos. 53 | Torx Oval-Head Screw
1 603 435 078
-
AU$ 2.31 *
*Price including GST
Pos. 54 | Torx Oval-Head Screw 4X30
1 603 414 026
-
AU$ 2.31 *
*Price including GST
Pos. 60 | Reverse-Transfer Lever
1 600 A00 R9L
-
AU$ 3.52 *
*Price including GST
Pos. 90 | Speed governor
1 607 233 5LX
-
AU$ 54.03 *
*Price including GST
Pos. 91 | Electronics Module
1 607 503 438
-
AU$ 25.78 *
*Price including GST
Pos. 92 | Cover Panel
1 600 A00 M53
-
AU$ 2.31 *
*Price including GST
Pos. 94 | Cover
1 605 500 2BV
-
AU$ 5.17 *
*Price including GST
Pos. 95 | Cover
1 600 A00 P1B
-
AU$ 2.31 *
*Price including GST
Pos. 321/7 | Air Distributor
1 600 591 066
-
AU$ 6.82 *
*Price including GST
Pos. 321/14 | groove ball bearing 8X22X7
1 600 905 032
-
AU$ 11.78 *
*Price including GST
Pos. 321/27 | Rubber Ring
1 600 206 025
-
AU$ 5.17 *
*Price including GST
Pos. 321/37 | Holder
1 600 A00 P17
-
AU$ 2.31 *
*Price including GST
Pos. 321/40 | Retaining clip
1 600 119 011
-
AU$ 5.17 *
*Price including GST
Pos. 321/41 | Plain bearing
1 600 200 029
-
AU$ 8.42 *
*Price including GST
Pos. 321/89 | Light Conductor
1 600 A00 P2M
-
AU$ 5.17 *
*Price including GST
Pos. 321/104 | O-Ring 4,5X1,0 MM BLUE
1 600 210 044
-
AU$ 2.31 *
*Price including GST
Pos. 343 | Catch Lever
1 607 000 742
-
AU$ 15.15 *
*Price including GST
Pos. 343/44 | Compression Spring
1 604 611 042
-
AU$ 3.52 *
*Price including GST
Pos. 650/1 | Auxiliary Handle
1 602 025 0A0
-
AU$ 18.39 *
*Price including GST
Pos. 650/2 | Quick Acting Flange
1 600 A01 6DN
-
AU$ 25.78 *
*Price including GST
Pos. 650/5/2 | O-Ring 20,35X1,78 MM
1 600 210 055
-
AU$ 2.31 *
*Price including GST
Pos. 650/5 | Clamping Flange Ø22,3XØ42 MM
2 605 703 014
-
AU$ 15.15 *
*Price including GST
Pos. 651 | Protective Cover
1 600 A02 5XR
-
AU$ 16.37 *
*Price including GST
Pos. 652 | Protective Cover
1 600 A02 1MH
-
AU$ 16.37 *
*Price including GST
Pos. 653 | Charger
1 617 S02 0KJ
-
-
Pos. 654 | Battery Pack
1 607 A35 0AT
-
AU$ 430.50 *
*Price including GST
Pos. 654 | Battery Pack
2 607 337 069
-
AU$ 209.26 *
*Price including GST
Pos. 802 | Motor
1 607 000 CA4
-
AU$ 187.09 *
*Price including GST
Pos. 803 | Bevel Gear Shaft
1 607 000 CA5
-
AU$ 20.77 *
*Price including GST
Pos. 808 | Nameplate
1 601 11A 9BU
-
-
Pos. 821 | Gear Housing
1 605 806 5S3
-
AU$ 69.26 *
*Price including GST
Pos. 828 | Bearing Flange
1 607 000 D6D
-
AU$ 25.78 *
*Price including GST
Pos. 838 | Gear Unit
1 607 000 CA8
-
AU$ 42.86 *
*Price including GST
Pos. 840 | Push-Button
1 607 000 V41
-
AU$ 8.42 *
*Price including GST
Pos. 851 | Electronics Module
1 607 000 D5W
-
AU$ 209.26 *
*Price including GST
Pos. 852 | Protective Cover
1 600 A02 059
-
AU$ 20.77 *
*Price including GST
Pos. 884 | Filter Unit
1 607 000 CA9
-
AU$ 18.39 *
*Price including GST
Pos. 891 | Auxiliary Handle
1 602 025 09T
-
AU$ 8.25 *
*Price including GST
Pos. 893 | Pin-Type Face-Wrench
1 607 950 052
-
AU$ 8.25 *
*Price including GST
* Price including GST
Turn the device for 90 degrees.
3 601 JG3 F01
Image 1
Cover
-
Spare part number: 1 600 100 P12
Position: 17
Availability: 1
Price group: 11
AU$ 3.52 *

Price including GST
Retaining clip
-
part
Spare part number: 1 600 119 011
Position: 321/40
Availability: 1
Price group: 12
AU$ 5.17 *

Price including GST
-

Please click for futher details

Plain bearing
-
part
Spare part number: 1 600 200 029
Position: 321/41
Availability: 1
Price group: 16
AU$ 8.42 *

Price including GST
Rubber Ring
-
part
Spare part number: 1 600 206 025
Position: 321/27
Availability: 1
Price group: 12
AU$ 5.17 *

Price including GST
O-Ring 46,0X1,1 MM
-
part
Spare part number: 1 600 210 035
Position: 33
Availability: 1
Price group: 11
AU$ 3.52 *

Price including GST
O-Ring 4,5X1,0 MM BLUE
-
part
Spare part number: 1 600 210 044
Position: 321/104
Availability: 1
Price group: 10
AU$ 2.31 *

Price including GST
Air-Deflector Ring
-
part
Spare part number: 1 600 591 065
Position: 6
Availability: 1
Price group: 13
AU$ 5.94 *

Price including GST
Air Distributor
-
Spare part number: 1 600 591 066
Position: 321/7
Availability: 1
Price group: 14
AU$ 6.82 *

Price including GST
groove ball bearing 8X22X7
-
part
Spare part number: 1 600 905 032
Position: 321/14
Availability: 1
Price group: 18
AU$ 11.78 *

Price including GST
Cover Panel
-
Spare part number: 1 600 A00 M53
Position: 92
Availability: 1
Price group: 10
AU$ 2.31 *

Price including GST
Holder
-
Spare part number: 1 600 A00 P17
Position: 321/37
Availability: 1
Price group: 10
AU$ 2.31 *

Price including GST
Cover
-
part
Spare part number: 1 600 A00 P1B
Position: 95
Availability: 1
Price group: 10
AU$ 2.31 *

Price including GST
Light Conductor
-
part
Spare part number: 1 600 A00 P2M
Position: 321/89
Availability: 1
Price group: 12
AU$ 5.17 *

Price including GST
Switch-Pawl
-
part
Spare part number: 1 600 A00 R9F
Position: 18
Availability: 1
Price group: 16
AU$ 8.42 *

Price including GST
Reverse-Transfer Lever
-
part
Spare part number: 1 600 A00 R9L
Position: 60
Availability: 1
Price group: 11
AU$ 3.52 *

Price including GST
Ferrite
-
Spare part number: 1 600 A00 RK2
Position: 12
Availability: 1
Price group: 12
AU$ 5.17 *

Price including GST
Nameplate
-
Spare part number: 1 601 11A 9BU
Position: 808
Availability: 1
Price group: -
-

Manufacturer's nameplate
-
part
Spare part number: 1 601 11C 2MV
Position: 9
Availability: 1
Price group: 13
AU$ 5.94 *

Price including GST
Hex Nut M7, SW10
-
part
Spare part number: 1 603 300 016
Position: 45
Availability: 1
Price group: 11
AU$ 3.52 *

Price including GST
Torx Oval-Head Screw 4X30
-
Spare part number: 1 603 414 026
Position: 54
Availability: 1
Price group: 10
AU$ 2.31 *

Price including GST
Thread-forming tap. Screw
-
part
Spare part number: 1 603 435 071
Position: 50
Availability: 4
Price group: 10
AU$ 2.31 *

Price including GST
Torx Oval-Head Screw
-
part
Spare part number: 1 603 435 078
Position: 53
Availability: 3
Price group: 10
AU$ 2.31 *

Price including GST
Torx Oval-Head Screw
-
part
Spare part number: 1 603 435 078
Position: 53
Availability: 3
Price group: 10
AU$ 2.31 *

Price including GST
Compression Spring
-
part
Spare part number: 1 604 611 042
Position: 343/44
Availability: 1
Price group: 11
AU$ 3.52 *

Price including GST
Motor Housing
-
Spare part number: 1 605 108 2EL
Position: 1
Availability: 1
Price group: 30
AU$ 42.86 *

Price including GST
Motor Housing
-
Spare part number: 1 605 108 2EL
Position: 1
Availability: 1
Price group: 30
AU$ 42.86 *

Price including GST
Cover
-
part
Spare part number: 1 605 500 2BV
Position: 94
Availability: 1
Price group: 12
AU$ 5.17 *

Price including GST
Gear Housing
-
part
Spare part number: 1 605 806 5S3
Position: 821
Availability: 1
Price group: 34
AU$ 69.26 *

Price including GST
Fan
-
Spare part number: 1 606 610 16E
Position: 5
Availability: 1
Price group: 14
AU$ 6.82 *

Price including GST
Catch Lever
-
part
Spare part number: 1 607 000 742
Position: 343
Availability: 1
Price group: 20
AU$ 15.15 *

Price including GST
Motor
-
part
Spare part number: 1 607 000 CA4
Position: 802
Availability: 1
Price group: 45
AU$ 187.09 *

Price including GST
Bevel Gear Shaft
-
part
Spare part number: 1 607 000 CA5
Position: 803
Availability: 1
Price group: 24
AU$ 20.77 *

Price including GST
Gear Unit
-
Spare part number: 1 607 000 CA8
Position: 838
Availability: 1
Price group: 30
AU$ 42.86 *

Price including GST
Filter Unit
-
part
Spare part number: 1 607 000 CA9
Position: 884
Availability: 1
Price group: 23
AU$ 18.39 *

Price including GST
Filter Unit
-
part
Spare part number: 1 607 000 CA9
Position: 884
Availability: 1
Price group: 23
AU$ 18.39 *

Price including GST
Electronics Module
-
part
Spare part number: 1 607 000 D5W
Position: 851
Availability: 1
Price group: 46
AU$ 209.26 *

Price including GST
Grinding Spindle
-
part
Spare part number: 1 607 000 D6A
Position: 28/32
Availability: 1
Price group: 20
AU$ 15.15 *

Price including GST
Bearing Flange
-
Spare part number: 1 607 000 D6D
Position: 828
Availability: 1
Price group: 26
AU$ 25.78 *

Price including GST
Push-Button
-
part
Spare part number: 1 607 000 V41
Position: 840
Availability: 1
Price group: 16
AU$ 8.42 *

Price including GST
Speed governor
-
part
Spare part number: 1 607 233 5LX
Position: 90
Availability: 1
Price group: 32
AU$ 54.03 *

Price including GST
Electronics Module
-
part
Spare part number: 1 607 503 438
Position: 91
Availability: 1
Price group: 26
AU$ 25.78 *

Price including GST
Compression Spring
-
part
Spare part number: 1 609 280 477
Position: 46
Availability: 1
Price group: 11
AU$ 3.52 *

Price including GST
Washer
-
part
Spare part number: 1 610 100 023
Position: 36
Availability: 1
Price group: 10
AU$ 2.31 *

Price including GST
Cover Disc
-
part
Spare part number: 1 619 P09 390
Position: 28/80
Availability: 1
Price group: 12
AU$ 5.17 *

Price including GST
Thread-forming tap. Screw M4X16
-
part
Spare part number: 2 914 491 410
Position: 49
Availability: 4
Price group: 10
AU$ 2.31 *

Price including GST
O-Ring 47,0X1,5 MM
-
part
Spare part number: 3 600 210 109
Position: 28/28/4
Availability: 1
Price group: 12
AU$ 5.17 *

Price including GST
Image 1
O-Ring 20,35X1,78 MM
-
Spare part number: 1 600 210 055
Position: 650/5/2
Availability: 1
Price group: 10
AU$ 2.31 *

Price including GST
Quick Acting Flange
-
part
Spare part number: 1 600 A01 6DN
Position: 650/2
Availability: 1
Price group: 26
AU$ 25.78 *

Price including GST
Protective Cover
-
Spare part number: 1 600 A02 059
Position: 852
Availability: 1
Price group: 24
AU$ 20.77 *

Price including GST
Protective Cover
-
Spare part number: 1 600 A02 1MH
Position: 652
Availability: 1
Price group: 22
AU$ 16.37 *

Price including GST
Protective Cover
-
Spare part number: 1 600 A02 5XR
Position: 651
Availability: 1
Price group: 22
AU$ 16.37 *

Price including GST
Auxiliary Handle
-
part
Spare part number: 1 602 025 09T
Position: 891
Availability: 1
Price group: 15
AU$ 8.25 *

Price including GST
Auxiliary Handle
-
part
Spare part number: 1 602 025 0A0
Position: 650/1
Availability: 1
Price group: 23
AU$ 18.39 *

Price including GST
Electronics Module
-
part
Spare part number: 1 607 000 D5W
Position: 851
Availability: 1
Price group: 46
AU$ 209.26 *

Price including GST
Pin-Type Face-Wrench
-
part
Spare part number: 1 607 950 052
Position: 893
Availability: 1
Price group: 15
AU$ 8.25 *

Price including GST
-

Please click for futher details

Charger
-
part
Spare part number: 1 617 S02 0KJ
Position: 653
Availability: 1
Price group: -
-

Clamping Flange Ø22,3XØ42 MM
-
part
Spare part number: 2 605 703 014
Position: 650/5
Availability: 1
Price group: 20
AU$ 15.15 *

Price including GST
1
2
Warning
A selection of part numbers is available. Please click the respective button in the spare part list
Warning
To select this item click the checkbox. Note: This position number does not appear on the illustration
Warning
No spare part listed
